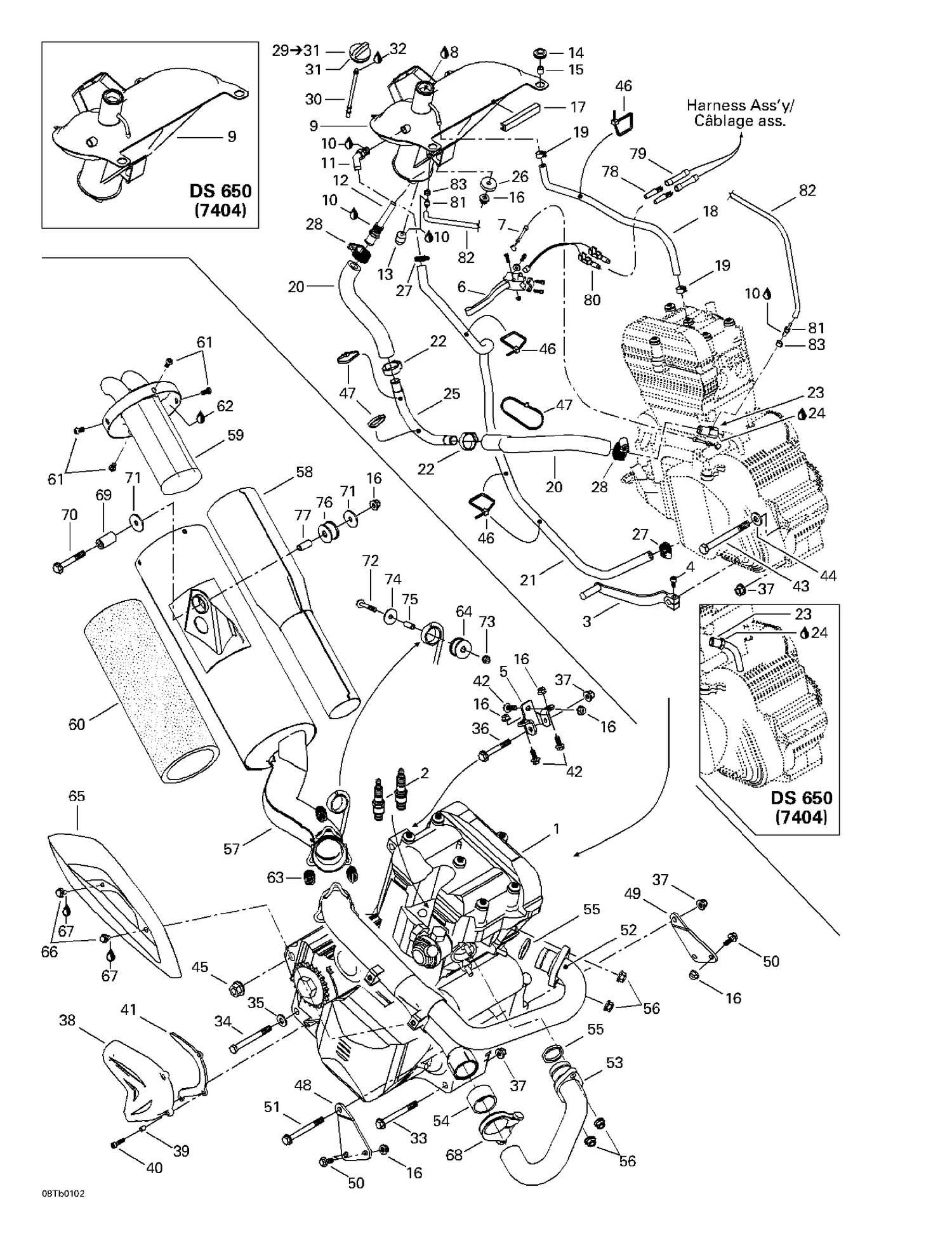

| Ref | Part Number | Description |
|---|
| 3 |
711248317 |
SHIFTER PEDAL - Call your local BRP dealership |
| 4 |
205062047 |
Socket Head Screw M6 X 20 |
| 5 |
707000029 |
Support Bracket |
| 6 |
707000035 |
Shifter Lever |
| 7 |
707000027 |
SHIFTER LEVER CABLE - Call your local BRP dealership |
| 8 |
Not |
Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
| 10 |
219704454 |
Was 293800013 Loctite 56765 |
| 11 |
420922242 |
Angular Tube This part replaces 420922245. |
| 12 |
707000076 |
STRAINER - Call your local BRP dealership |
| 14 |
293720062 |
Grommet |
| 15 |
707000058 |
Spacer |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 17 |
219704405 |
TRIM 30000MM LONG - Call your local BRP dealership |
| 18 |
219704396 |
HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 19 |
414415200 |
Spring Clamp |
| 20 |
707000098 |
HOSE 15.8 MM, METER - Call your local BRP dealership |
| 21 |
709000022 |
HOSE 9.5 MM, METER - Call your local BRP dealership |
| 22 |
293650099 |
Crimp Clamp |
| 24 |
293800073 |
Loctite 277, 10 ml |
| 25 |
707000059 |
INTAKE TUBE - Call your local BRP dealership |
| 26 |
250200002 |
RUBBER WASHER - Call your local BRP dealership |
| 27 |
293650171 |
Tridon Gear Clamp This part replaces 293650027. |
| 28 |
293650051 |
Tridon Gear Clamp |
| 30 |
Not |
Available As Spare Part - Oil Dip Stick |
| 31 |
293250009 |
O-RING - Call your local BRP dealership |
| 33 |
230501046 |
Hex. Screw M10 X 110, Scotch Grip |
| 34 |
230202046 |
Hex. Screw M10 X 120, Scotch Grip |
| 35 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 36 |
207507046 |
Hex. Screw M10 X 70, Scotch Grip |
| 37 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 38 |
707000024 |
Pinion Cover |
| 39 |
707000065 |
Spacer |
| 40 |
205062544 |
Socket Head Screw M6 X 25 |
| 42 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 43 |
230275044 |
HEX. SCREW M14 X 150, SCOTCH GRIP - Call your local BRP dealership |
| 44 |
234071410 |
Flat Washer 14 mm |
| 45 |
233271414 |
ELASTIC FLANGED NUT M14 - Call your local BRP dealership |
| 46 |
414115200 |
Tie-Rap 180 mm |
| 47 |
293750008 |
Tie Wrap 368 mm |
| 48 |
707000071 |
RH Support |
| 49 |
707000072 |
LH Support |
| 50 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 51 |
230500046 |
Hex. Screw M10 X 100, Scotch Grip |
| 52 |
707600019 |
LH TUNED PIPE - Call your local BRP dealership |
| 53 |
707600095 |
RH TUNED PIPE - Call your local BRP dealership |
| 54 |
707600020 |
PIPE GASKET - Call your local BRP dealership |
| 55 |
707600069 |
PIPE GASKET - Call your local BRP dealership |
| 56 |
233081416 |
Hex. Flange Nut M8 |
| 57 |
707600065 |
Tuned Pipe |
| 58 |
707600053 |
Perforated Tube |
| 59 |
707600066 |
END PIECE - Call your local BRP dealership |
| 60 |
707600089 |
Insulator |
| 61 |
250000436 |
Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 62 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
| 63 |
415107100 |
Spring |
| 64 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 65 |
707600074 |
Heat Shield |
| 66 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 67 |
293800005 |
Loctite 271, 10 ml |
| 68 |
293650093 |
GEAR CLAMP - Call your local BRP dealership |
| 69 |
707600049 |
SPACER - Call your local BRP dealership |
| 70 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 71 |
224081301 |
Flat Washer |
| 72 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 73 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 74 |
224060251 |
Washer |
| 75 |
707600070 |
Spacer |
| 76 |
707603323 |
Vibration Damper This part replaces 707600077. |
| 77 |
293900106 |
Bushing This part replaces 293900025. |
| 78 |
278001009 |
Female Terminal |
| 79 |
278001007 |
Insulated Sheath |
| 80 |
278000230 |
Male Terminal |
