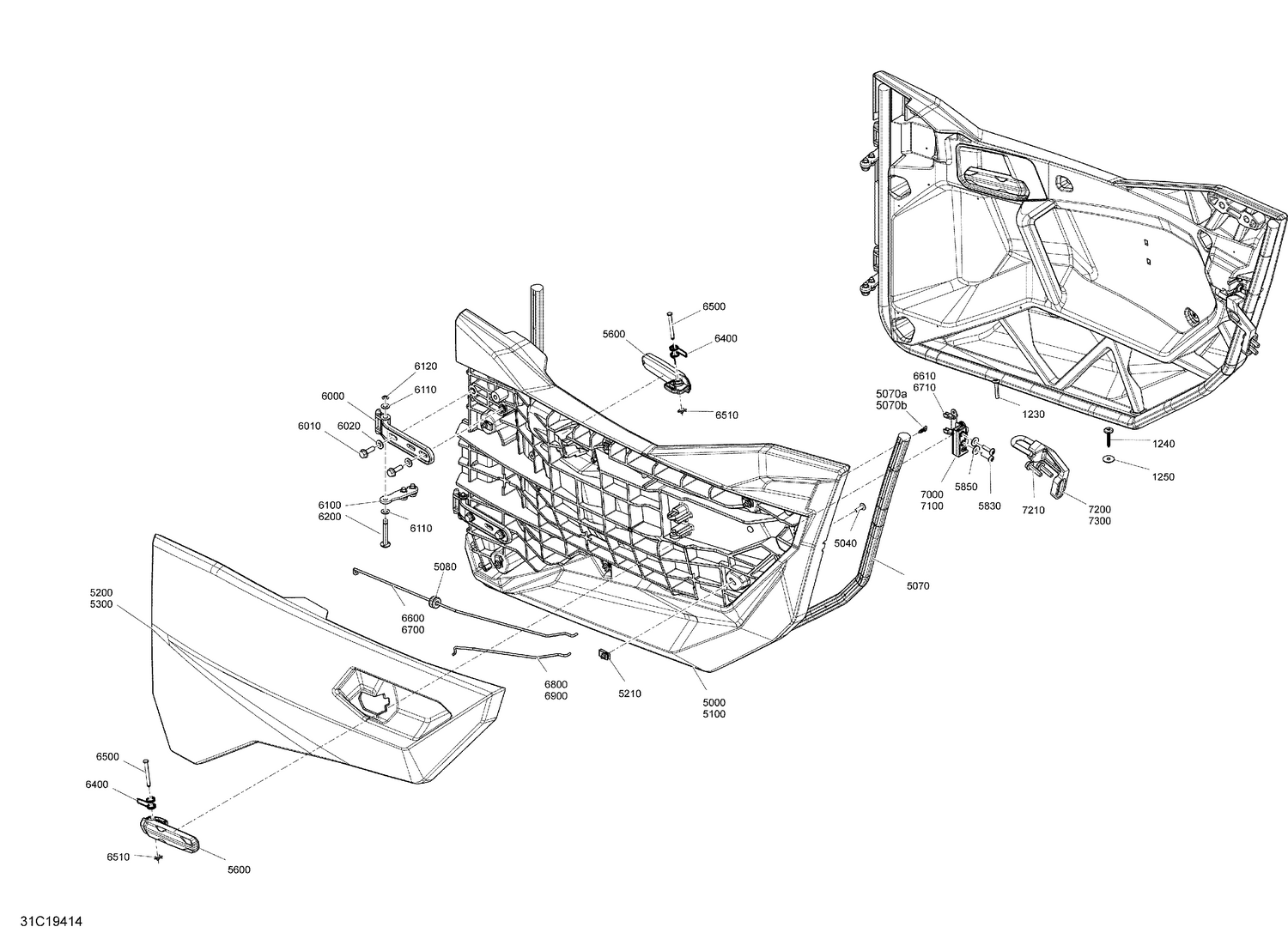

09- Body Maverick Sport - 1000R - Red - Yellow - Door Parts
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 5000 | 705012982 | LH Front Door Panel |
| 5040 | 250000722 | Torx Screw M6 X 20 |
| 5070a | 293730081 | Natural Color, Dart |
| 5070b | 293730082 | Red, Dart |
| 5080 | 293720104 | Grommet |
| 5100 | 705012983 | RH Front Door Panel |
| 5210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5600 | 705017152 | Door Handle This part replaces 705012986. |
| 5830 | 250000807 | Torx Truss Screw M6 X 25 |
| 5850 | 234062670 | Stainless Steel Flat Washer |
| 6000 | 705013228 | Hinge |
| 6010 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 6020 | 503192494 | Washer |
| 6100 | 705011629 | Lower Hinge Ajustement |
| 6110 | 234081100 | Flat Washer 8 mm, Nylon |
| 6120 | 705601030 | Circlip |
| 6200 | 705012506 | Upper Hinge Ajustement |
| 6400 | 705013062 | Handle Spring |
| 6500 | 705207440 | Handle Axle |
| 6510 | 705601875 | External Retaining Ring This part replaces 705601721. |
| 6600 | 705207146 | LH Upper Locking Rod |
| 6610 | 708300202 | RH Tie Rod Clip |
| 6700 | 705207147 | RH Upper Locking Rod |
| 6710 | 708300182 | LH Tie Rod Clip |
| 6800 | 705207150 | LH Lower Locking Rod |
| 6900 | 705207151 | RH Lower Locking Rod |
| 7000 | 705013095 | LH Latch |
| 7100 | 705013096 | RH Latch |
| 7200 | 705207027 | LH Stricker Support |
| 7210 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
