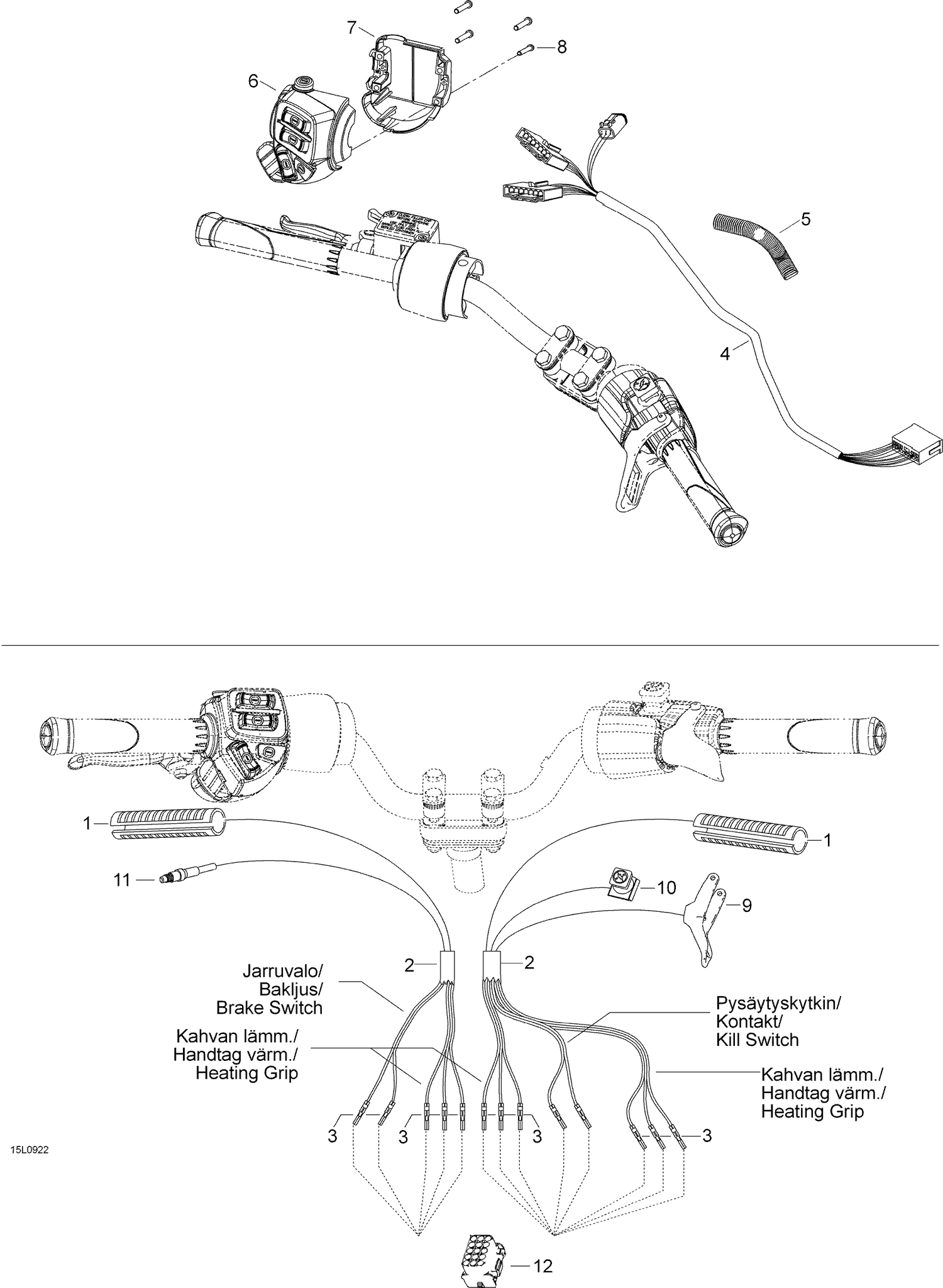

10- Steering Harness
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176139 | HEATER ELEMENT - Call your local BRP dealership |
| 2 | 39023 | Plastic Tubing d=6, musta - Call your local BRP dealership |
| 3 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 4 | 605353266 | STEERING HARNESS - Call your local BRP dealership |
| 5 | 605353992 | Tubing |
| 6 | 515177021 | LH Switch Housing This part replaces 515176187. |
| 7 | 515175926 | Switch housing plate |
| 8 | 40903 | Plastofast-screw 3.5 x 25 |
| 9 | 512059624 | Throttle handle |
| 10 | 605355686 | Kill switch |
| 11 | 507032366 | Microswitch |
