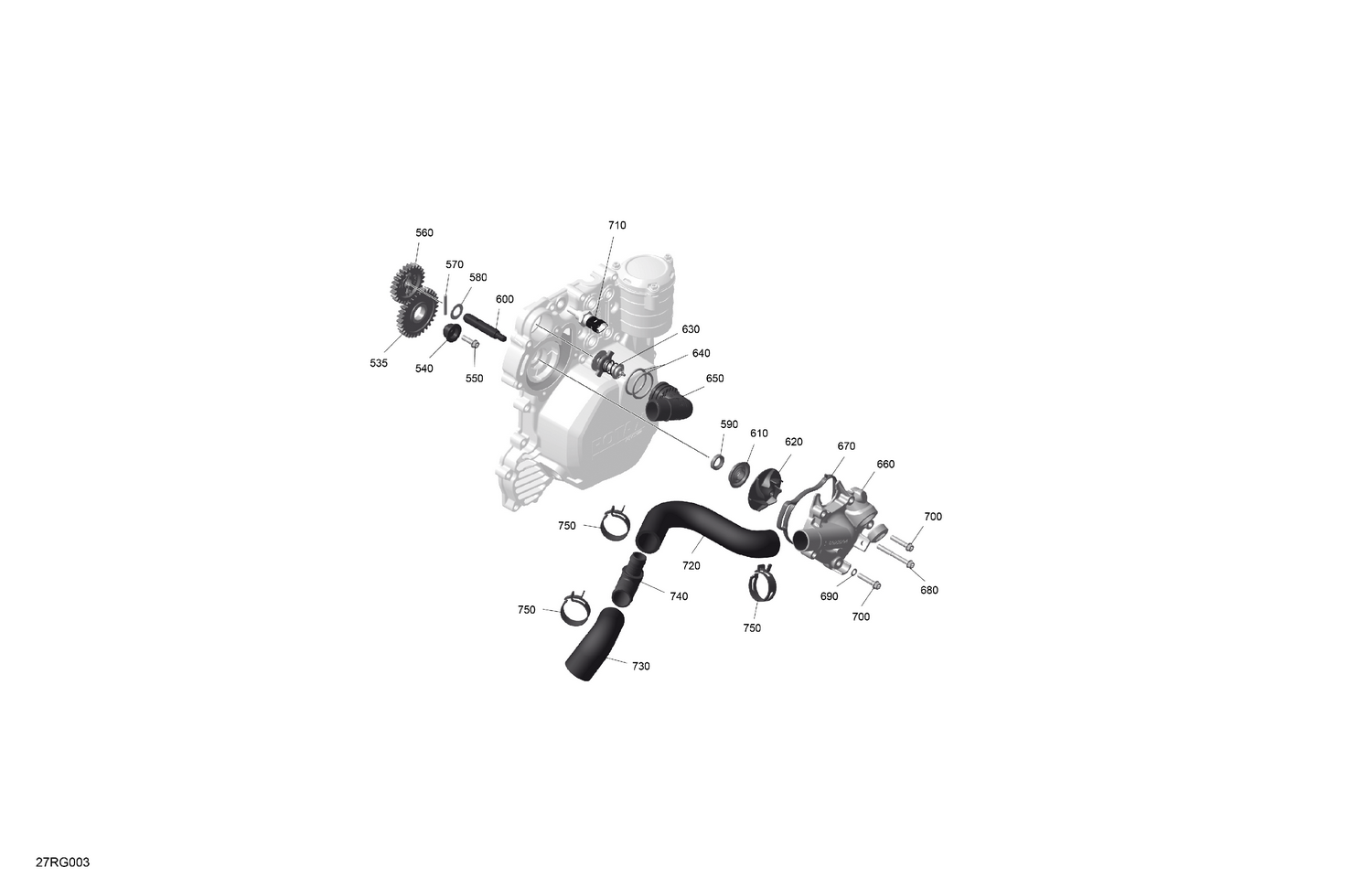

01- ROTAX - Engine Cooling
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 535 | 420835067 | Idle Gear, 31 Teeth |
| 540 | 420947394 | Graduated Spacer |
| 550 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 560 | 420835230 | Waterpump Gear (25 T) |
| 570 | 420232431 | Needle Pin B 4 x 29,8 |
| 580 | 420827261 | Thrust Washer 12,5/21,5/1 |
| 590 | 420931802 | Oil Seal BA 12X20X5 FPM |
| 600 | 420820150 | Waterpump Shaft |
| 610 | 420850948 | Seal |
| 620 | 420222880 | Water Impeller |
| 630 | 420822657 | Thermostat |
| 640 | 420950896 | O-Ring |
| 650 | 420922158 | Thermostat cover |
| 660 | 420922307 | Water Pump Housing |
| 670 | 420431682 | Gasket |
| 680 | 420440702 | Flanged Torx Screw M6 X 55 |
| 690 | 404146600 | Sealing Washer |
| 700 | 420440647 | Flanged Torx Screw M6 X 30 |
| 710 | 278002895 | Temperature Sensor |
| 720 | 420201502 | Molded Hose |
| 730 | 420201507 | Molded Hose |
| 740 | 420660551 | T Fitting |
