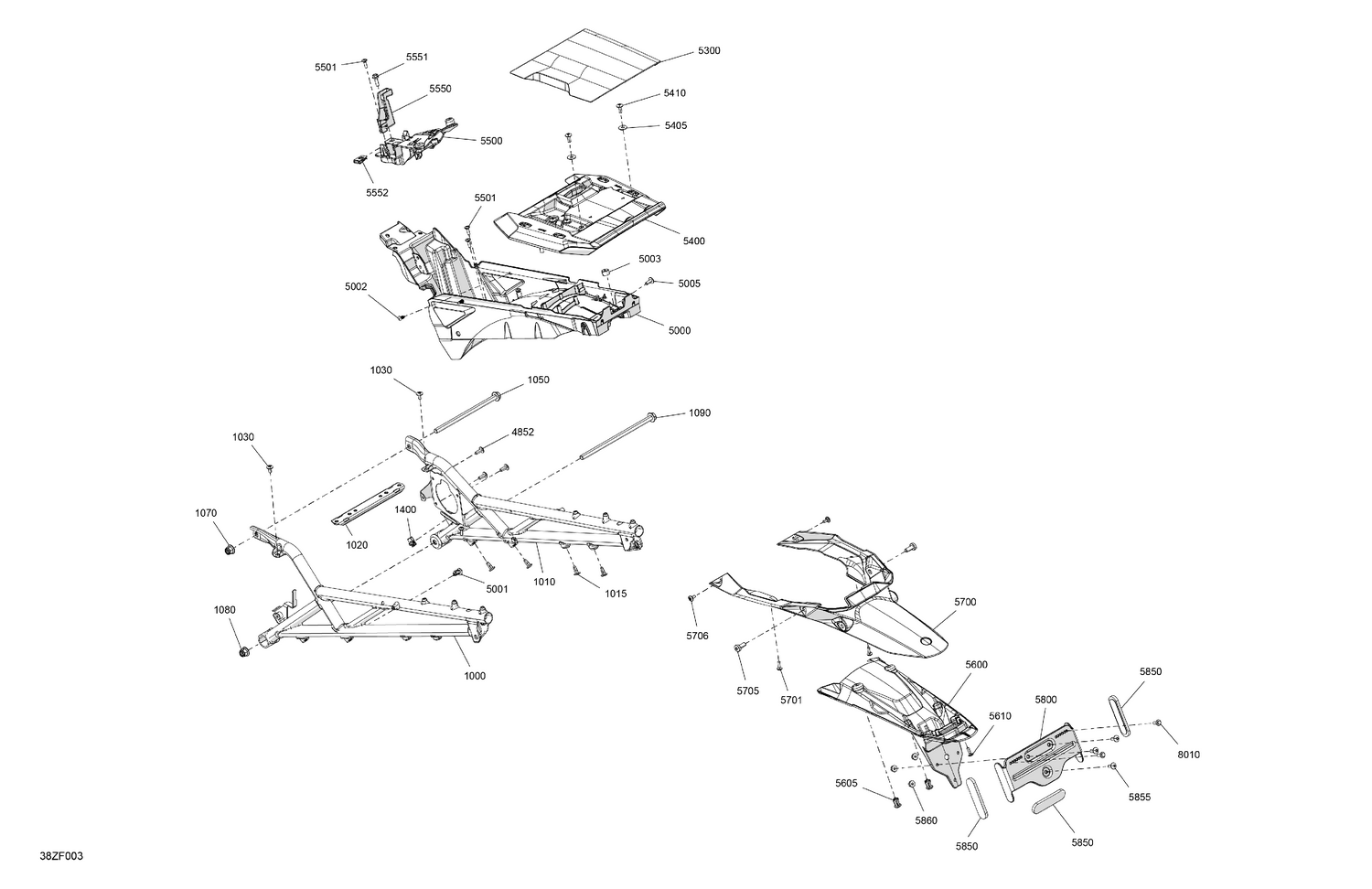

07- Body - Cargo
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 705211702 | LH Rear Chassis Extension |
| 1010 | 705211705 | RH Rear Chassis Extension |
| 1015 | 293730024 | Dart, Fastex |
| 1020 | 705211901 | Front Upper Cross Member |
| 1030 | 250000767 | Torx Truss Screw M6 X 12 |
| 1050 | 250001334 | Geoblack, Hex. Flange Screw M10 X 185 |
| 1070 | 250100246 | Hex. Flange Elastic Nut M10 |
| 1080 | 250100246 | Hex. Flange Elastic Nut M10 |
| 1090 | 250001335 | Geoblack, Hex. Flange Screw M10 X 215 |
| 1400 | 250100209 | Spring Nut U M5 X 0.8 |
| 4852 | 250000717 | Torx Head Screw M6 X 16 |
| 5000 | 705017445 | Under Fender Trim |
| 5001 | 293150230 | Tuflok Plastic Rivet |
| 5002 | 293730062 | Dart |
| 5003 | 291001203 | Spacer |
| 5005 | 250000717 | Torx Head Screw M6 X 16 |
| 5300 | 705019081 | Bright White, Rear Upper Fairing |
| 5400 | 705017857 | Accessory Support |
| 5405 | 234062670 | Stainless Steel Flat Washer |
| 5410 | 250000717 | Torx Head Screw M6 X 16 |
| 5500 | 705019983 | Battery Support |
| 5501 | 250000720 | Torx Screw K50 X 16 |
| 5550 | 705018486 | Battery Lock |
| 5551 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5552 | 250100208 | Panel Nut M6 X 1.0 |
| 5600 | 705209266 | Rear Bottom Fender |
| 5605 | 293150230 | Tuflok Plastic Rivet |
| 5610 | 250000720 | Torx Screw K50 X 16 |
| 5700 | 705211595 | Rear Top Fender |
| 5701 | 250000720 | Torx Screw K50 X 16 |
| 5705 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 5706 | 250001308 | Torx Screw M5 X 12 |
| 5800 | 705209835 | License Plate Support |
| 5850 | 705015551 | Red, Reflector |
| 5855 | 250000717 | Torx Head Screw M6 X 16 |
| 5860 | 233161464 | Hex. Elastic Flange Nut M6 |
