Parts Catalog

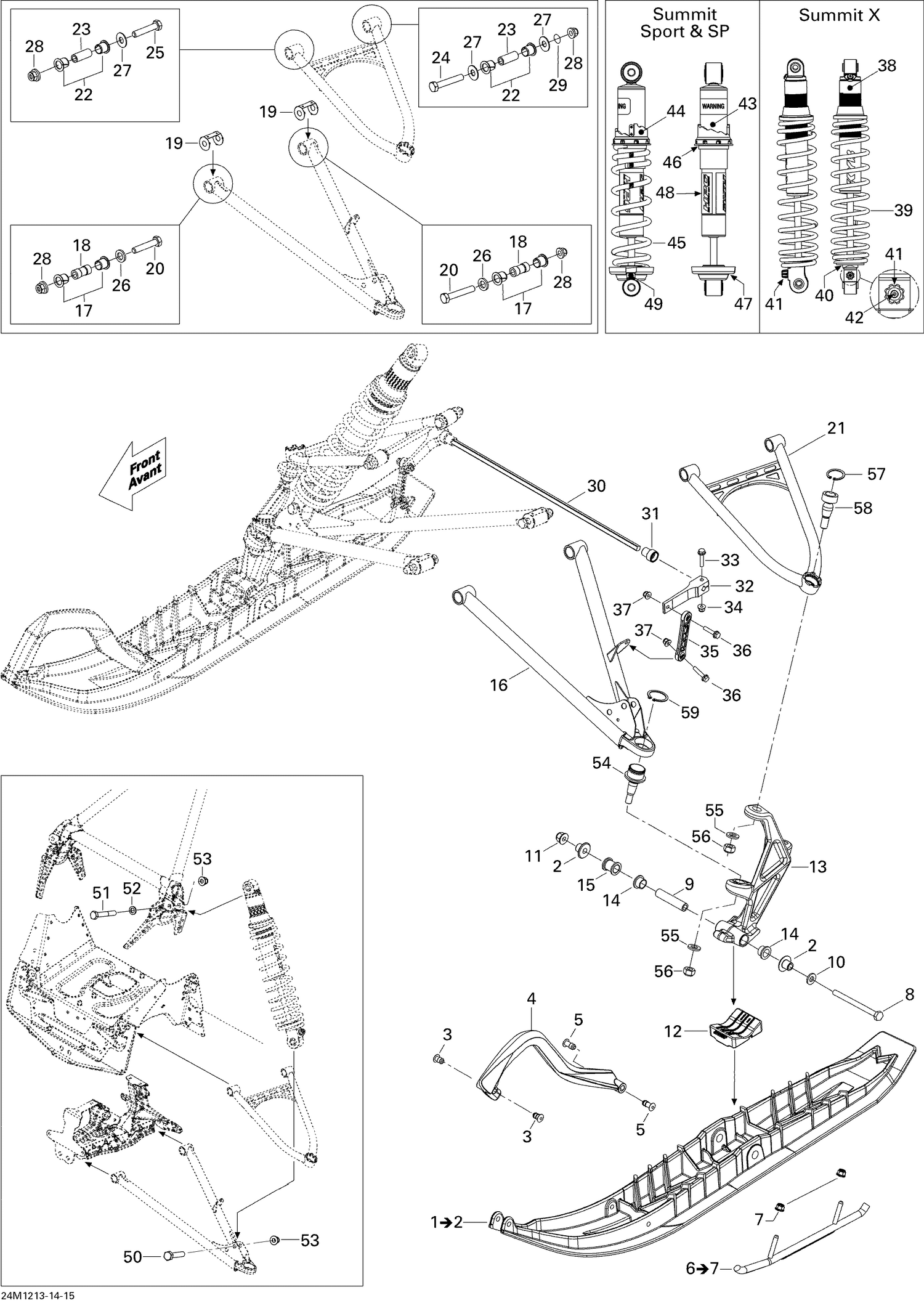

07- Front Suspension And Ski

Parts (50)

Ref	Part Number	Description
2	505071781	Ski Bushing
3	505071812	Retainer 17mm long
5	505072133	Retainer 23mm Long
7	233281414	Hex. Flange Elastic Nut M8
8	250000703	Hex. Screw M10 X 130 This part replaces 230003044.
9	506133300	Spacer
10	732900049	Washer
11	233201414	Hex. Flange Elastic Nut M10
12	505072594	Ski Stopper
14	505072690	Leg Bushing
15	505071999	Spacer
16	505073039	Black, LH Lower Arm
16	505073040	Black, Lower Arm RH
17	505072208	Bushing
19	505072634	Wear Plate
20	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
21	505073013	LH UPPER ARM - Call your local BRP dealership
21	505073014	RH UPPER ARM - Call your local BRP dealership
22	505072250	Bushing
23	505072143	Sleeve
24	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
25	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
26	503189564	Washer
27	505072392	Washer
28	250100165	Hex. Flange Elastic Nut M10 This part replaces 250100088.
29	505072448	O-Ring
30	505072785	STABILISATOR - Call your local BRP dealership
31	505072786	Bushing
32	505072787	STABILISATOR LEVER - Call your local BRP dealership
33	207663046	Hex. Flange Screw M6 X 30
34	233261416	Elastic Flange Nut M6 X 1.0
35	505072204	Sway Bar Double Joint Link
36	207663046	Hex. Flange Screw M6 X 30
37	233261416	Elastic Flange Nut M6 X 1.0
43	XXX	Not Available As Spare Parts
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
46	XXX	Not Available As Spare Parts
47	XXX	Not Available As Spare Parts
48	XXX	Not Available As Spare Parts
49	XXX	Not Available As Spare Parts
50	207005544	Hex. Screw M10 X 55
51	207006544	Hex. Screw M10 X 1.5 X 65
52	503189564	Washer
53	233201414	Hex. Flange Elastic Nut M10
54	505073636	Ball Joint This part replaces 505072682.
55	234021410	Flat Washer 12 mm
56	250100089	Hex. Elastic Hex. Nut M12
57	293370070	Circlip
58	505072913	Upper Ball Joint
