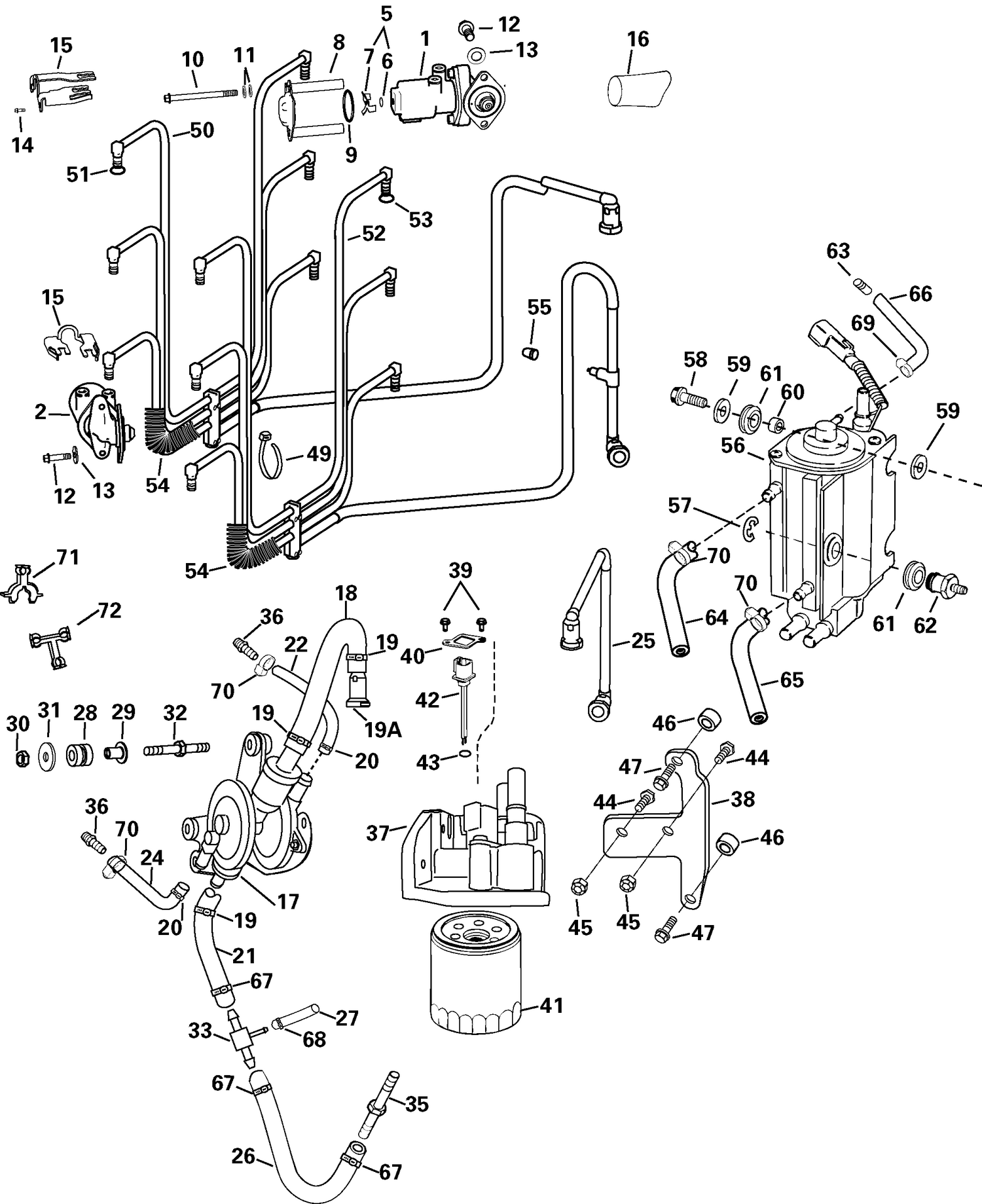

| Ref | Part Number | Description |
|---|
| 1 |
5005196 |
INJECTOR Assy, Port |
| 2 |
5005197 |
INJECTOR Assy, Stbd |
| 14 |
0349090 |
SCREW |
| 15 |
0349080 |
RETAINER, Fuel line to injector |
| 16 |
0349424 |
SLEEVE, #1 Injector |
| 17 |
5010025 |
Pump Ay This part replaces 5001513. |
| 25 |
0439947 |
CONNECTOR & TUBE Assy, Filter |
| 32 |
0345707 |
STUD |
| 33 |
0345701 |
FITTING, Fuel to Oil tee |
| 37 |
5001252 |
FILTER HOUSING Assy, Fuel |
| 38 |
0345169 |
BRACKET, Filter housing to c/c |
| 41 |
5012363 |
Filter Ay This part replaces 0502906. |
| 46 |
0345756 |
SPACER, Bracket lift pump to c/c |
| 49 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 56 |
5004429 |
RESERVOIR & PUMP |
| 57 |
0510487 |
RETAINING RING |
| 60 |
0335328 |
SCREW, Connector |
| 64 |
0347034 |
HOSE, Block to adapter |
| 65 |
0333395 |
HOSE, Connector to filter |
| 68 |
0348838 |
CLAMP, 10.5mm |
| 70 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 71 |
0350055 |
RETAINER, High tension leads |
