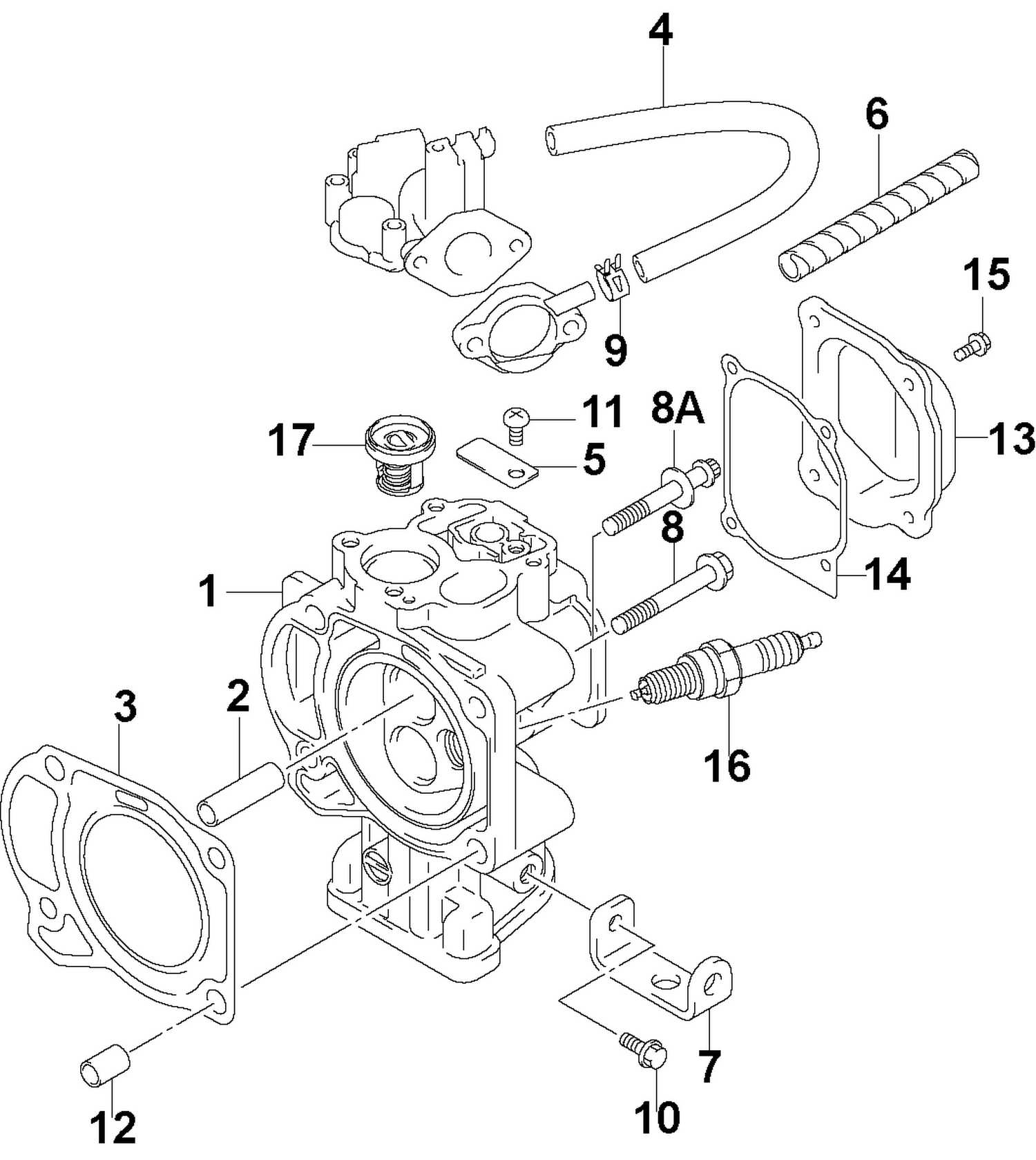

CYLINDER HEAD
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5033342 | GASKET, CYLINDER HEAD |
| 4 | 5033344 | HOSE, BREATHER |
| 5 | 5033349 | VALVE, REED |
| 7 | 5033449 | HOLDER, LOWER COVER |
| 9 | 5033487 | CLIP |
| 11 | 5034132 | SCREW |
| 12 | 5034168 | PIN, DOWEL |
| 13 | 5034202 | BLOCK ASSY, CYLINDER This part replaces 5033343. |
| 14 | 5033345 | GASKET, CYLINDER HEAD |
| 15 | 5033469 | BOLT (6X12mm) |
| 16 | 5030600 | PLUG, SPARK (BPR6ES) |
