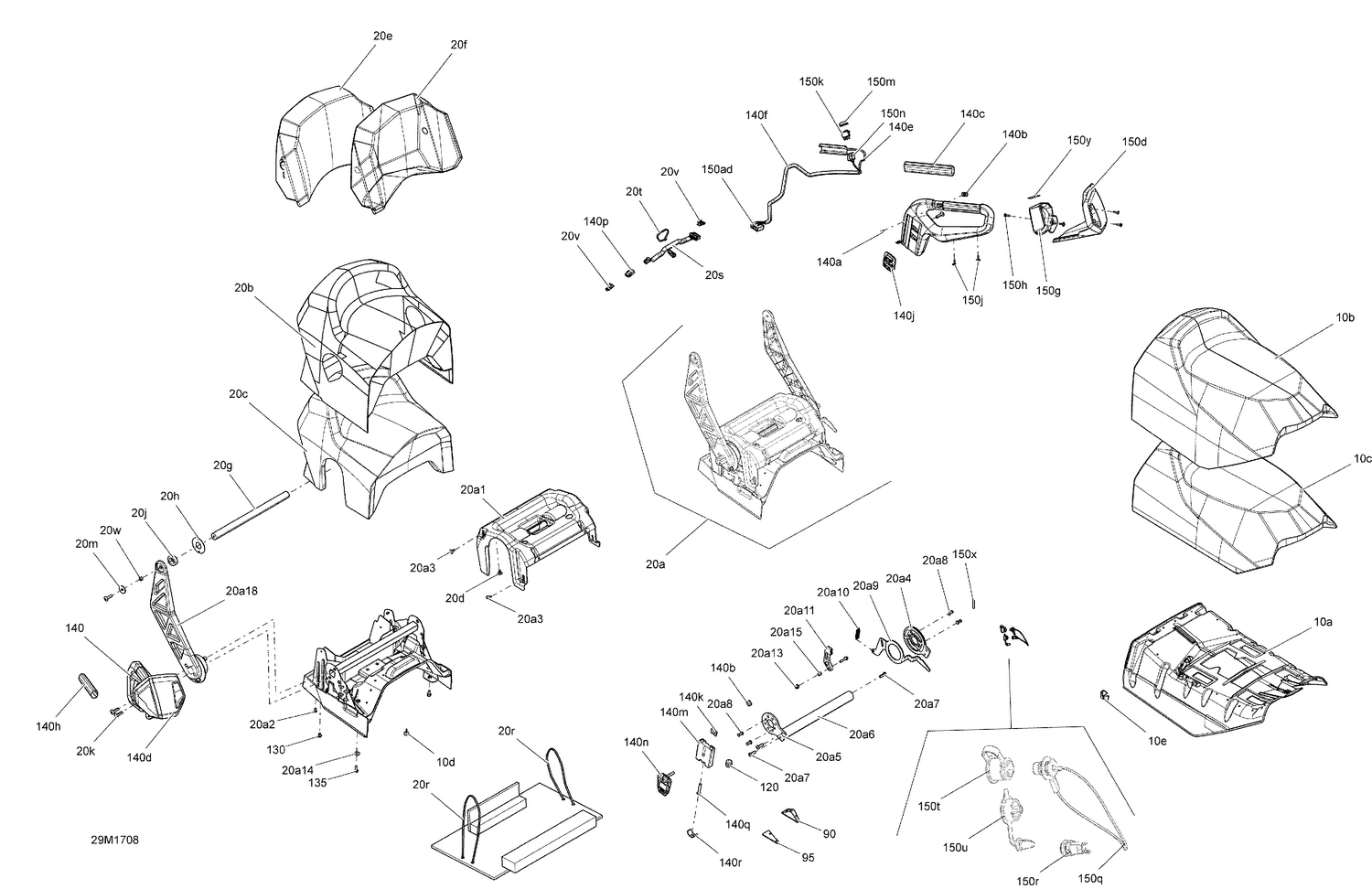

09- Seat - All Models
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510004775 | Front Seat Base |
| 10c | 510004777 | Front Seat Foam |
| 10d | 708000759 | Rubber Stopper |
| 10e | 510004963 | SEAT CORNER, BLACK - Call your local BRP dealership |
| 20a1 | 510004423 | Foam Support |
| 20a2 | 293150104 | Pop Rivet 3/16" |
| 20c | 510004791 | Rear Seat Foam |
| 20d | 414644300 | Black, Dart |
| 20e | 510004782 | Backrest Foam |
| 20g | 510004377 | Upper Backrest Axle |
| 20h | 510004379 | Washer |
| 20j | 510004378 | Rubber Shim |
| 20m | 250200128 | Flat Washer 8 mm |
| 20r | 293750008 | Tie Wrap 368 mm |
| 20t | 414115200 | Tie-Rap 180 mm |
| 20v | 515175283 | Housing Support |
| 20w | 271000558 | Spacer |
| 140a | 250000721 | Torx Truss Screw M6 X 16 |
| 140b | 293100003 | Nut Welded, M6 |
| 140c | 510004449 | Handle Grip |
| 140c | 510005814 | Reinforcement Handle |
| 140d | 510005009 | RH Air Deflector |
| 140e | 515176999 | Heated Element |
| 140f | 219704426 | Was 515175506 Tubing |
| 140h | 510005814 | Reinforcement Handle |
| 140p | 515175494 | Male Housing, 3 Circuits |
| 150ac | 515176033 | Male Connector |
| 150d | 510005010 | LH Air Deflector |
| 150h | 250000720 | Torx Screw K50 X 16 |
| 150j | 250000725 | Screw M4 X 16 |
| 150k | 510004413 | Rocker Switch |
| 150m | 510004414 | Switch Protector |
| 150n | 515176697 | Handle Harness |
| 6000 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 6001 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
