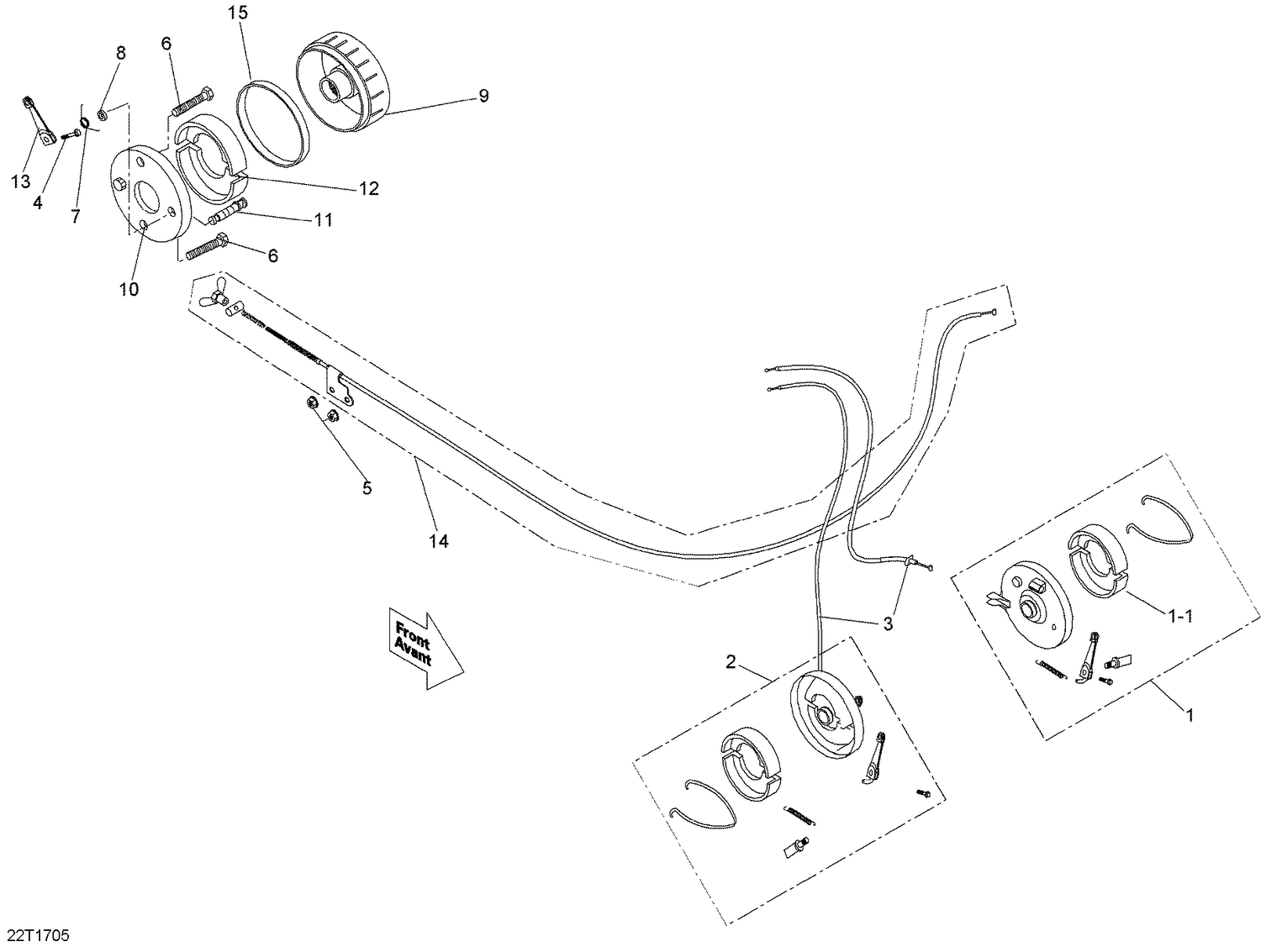

06- Brakes
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V45201MAA060 | Left Front Brake Ass'y |
| 2 | V45202MAA080 | RH Front Brake |
| 3 | V45450DGF060LL | Front Brake Cable |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | V9200012050 | Hex. Screw |
| 7 | V45135MAA010LL | Tension Spring |
| 8 | V91352MAA000 | Cam Shaft Rubber |
| 9 | V42610MAA010LL | Rear Drum |
| 10 | V42605MAA010LL | Rear Brake Panel |
| 11 | V43141MAA000 | Rear Brake Cam |
| 12 | V43121MAA000 | Rear Brake Shoe Kit |
| 13 | V43410MAA040LL | Rear Brake Arm This part replaces V43410MAA030LL. |
| 14 | V43450DGF070LL | Rear Brake Cable |
| 14a | V9501532001LL | Wing Nut |
| 14b | V950154200010LL | Barrel |
