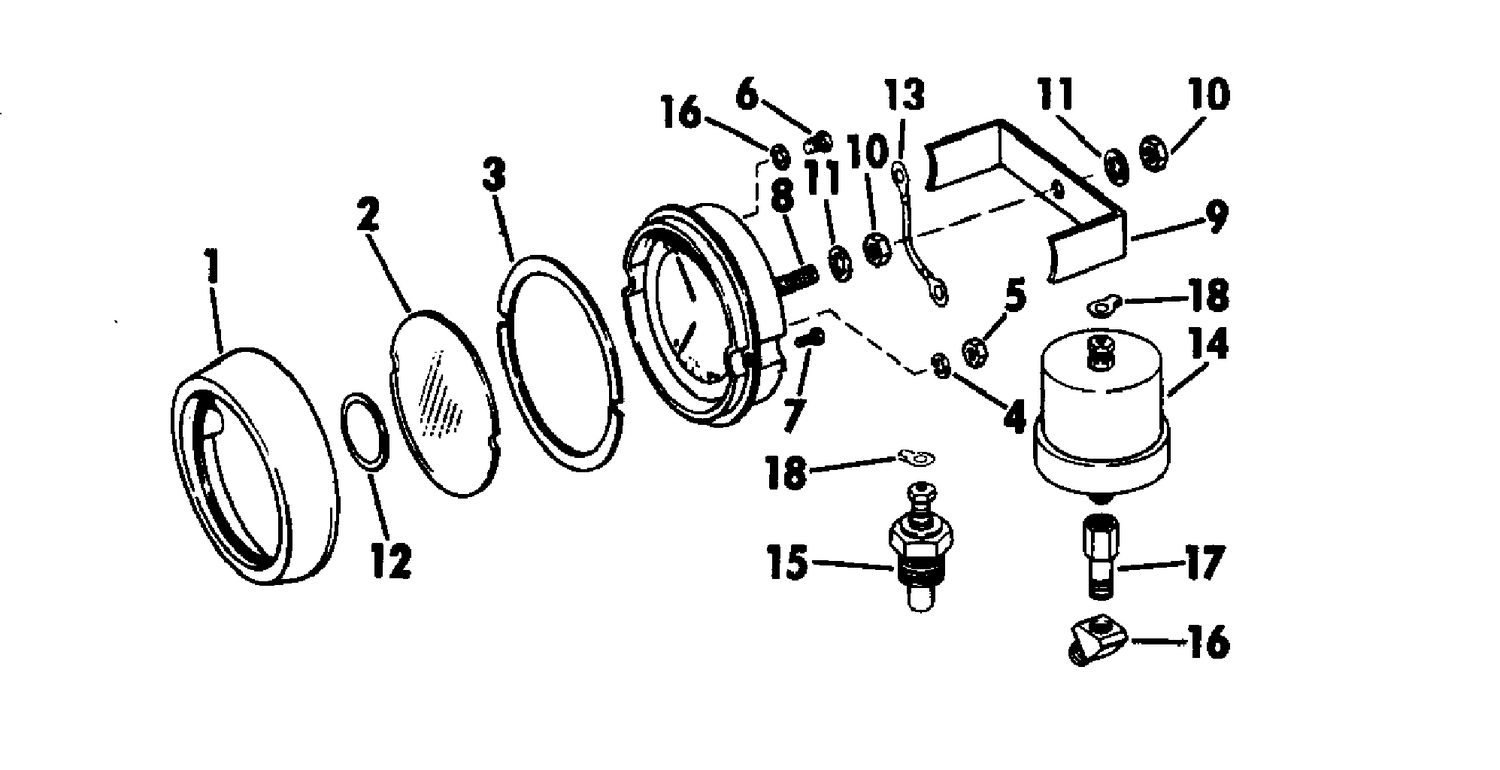

INSTRUMENTS-SUN SHIELDED OIL PRESSURE-WATER TEMP GAUGE
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0121703 | U BOLT |
| 4 | 0304141 | LOCKWASHER |
| 5 | 0132520 | NUT |
| 6 | 0121788 | SCREW |
| 8 | 0122087 | STUD |
| 12 | 0121720 | BITTON,Trim |
| 13 | 0172058 | CONNECTOR WIRE |
| 14 | 3853800 | OIL PRESSURE SENDER This part replaces 0172127. |
| 15 | 0171960 | SENDER, Water temperature |
| 16 | 0121687 | FITTING |
| 17 | 3855776 | ADAPTER, Oil sender This part replaces 0121688. |
| 5000 | 503196178 | Shock |
| 5010 | 503193292 | Spring 220 MM-30 N/MM |
| 5020 | 5346754 | Shock protector |
| 5040 | 230078 | Adjusting Cam |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503195134 | Glide Bearing |
| 5090 | 5446652 | Bushing |
| 5150 | 40134 | Screw Socket HD.DIN 912 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500 | 503196180 | Shock |
| 5510 | 503196072 | Spring 330 Mm-55 N/Mm |
| 5540 | 230078 | Adjusting Cam |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503195134 | Glide Bearing |
| 5590 | 40134 | Screw Socket HD.DIN 912 |
| 0172075 | 0172075 | OIL PRESSURE,Water temp. guage kit |
