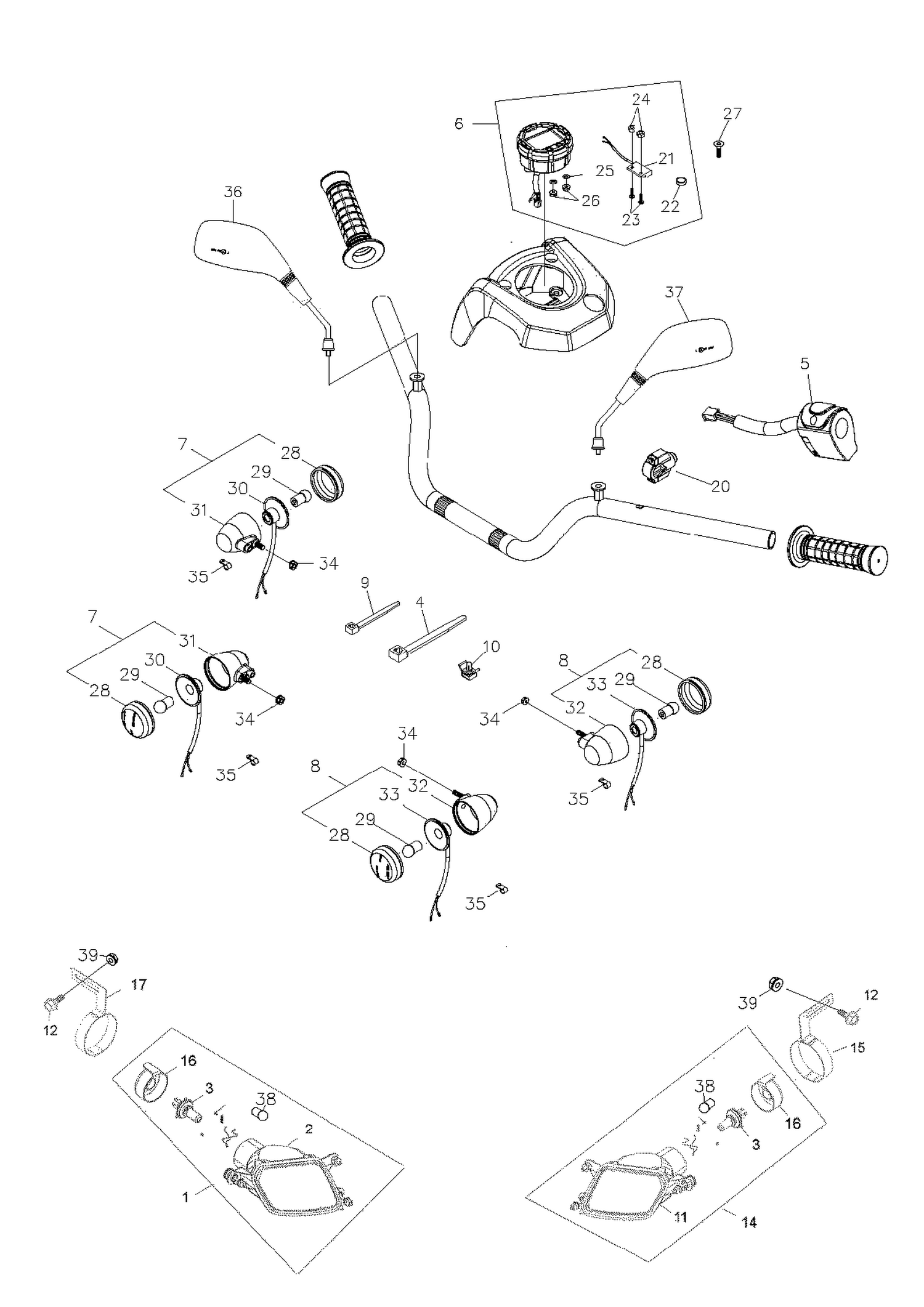

10- Electrical Accessories Europe
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A3310017900A | RH front Light Ass'y |
| 2 | Not | Available As Spare Part - RH Lamp Housing |
| 3 | A34901179000 | BULB - Call your local BRP dealership |
| 4 | 414115200 | Tie-Rap 180 mm |
| 5 | A3520017900A | LH SWITCH - Call your local BRP dealership |
| 6 | A37200179000 | Speedometer |
| 7 | A3340015900A | RH Turn Signal Light |
| 8 | A3345015900A | LH Turn Signal Light |
| 9 | 414115200 | Tie-Rap 180 mm |
| 10 | 293730040 | Mount Dart This part replaces 293730018. |
| 11 | Not | Available As Spare Part - LH Lamp Housing |
| 12 | A901120601610 | HEX.WASHER LADDER BOLT M6 X 16 - Call your local BRP dealership |
| 14 | A3320017900A | LH front Light Ass'y |
| 15 | A33154179000 | LH HEAD LIGHT BRACKET - Call your local BRP dealership |
| 16 | A33109179000 | Lamp Rubber |
| 17 | A33155179000 | RH Head Light Bracket |
| 20 | A35115179000 | SWITCH - Call your local BRP dealership |
| 21 | A37218169000 | Sensor |
| 22 | A37217169000 | Magnet |
| 23 | A9350003010 | Phillips Screw |
| 24 | A9400103000 | NUT HEX. - Call your local BRP dealership |
| 25 | A941010615010 | PLAIN WASHER - Call your local BRP dealership |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | A9370106015G | PHILLIPS SCREW M6 X 15 - Call your local BRP dealership |
| 28 | Not | Available As Spare Part - Signal Cover |
| 29 | A3490511800A | Bulb |
| 30 | Not | Available As Spare Part - Socket Signal |
| 31 | Not | Available As Spare Part - RH Socket Signal |
| 32 | Not | Available As Spare Part - LH Socket Signal |
| 33 | Not | Available As Spare Part - Socket Signal |
| 34 | A9370106012G | PHILLIPS SCREW M6 X 12 - Call your local BRP dealership |
| 35 | A90667179000 | Clip |
| 36 | A88120145000 | RH MIRROR - Call your local BRP dealership |
| 37 | A88110145000 | LH MIRROR - Call your local BRP dealership |
| 38 | A34909179000 | Bulb |
