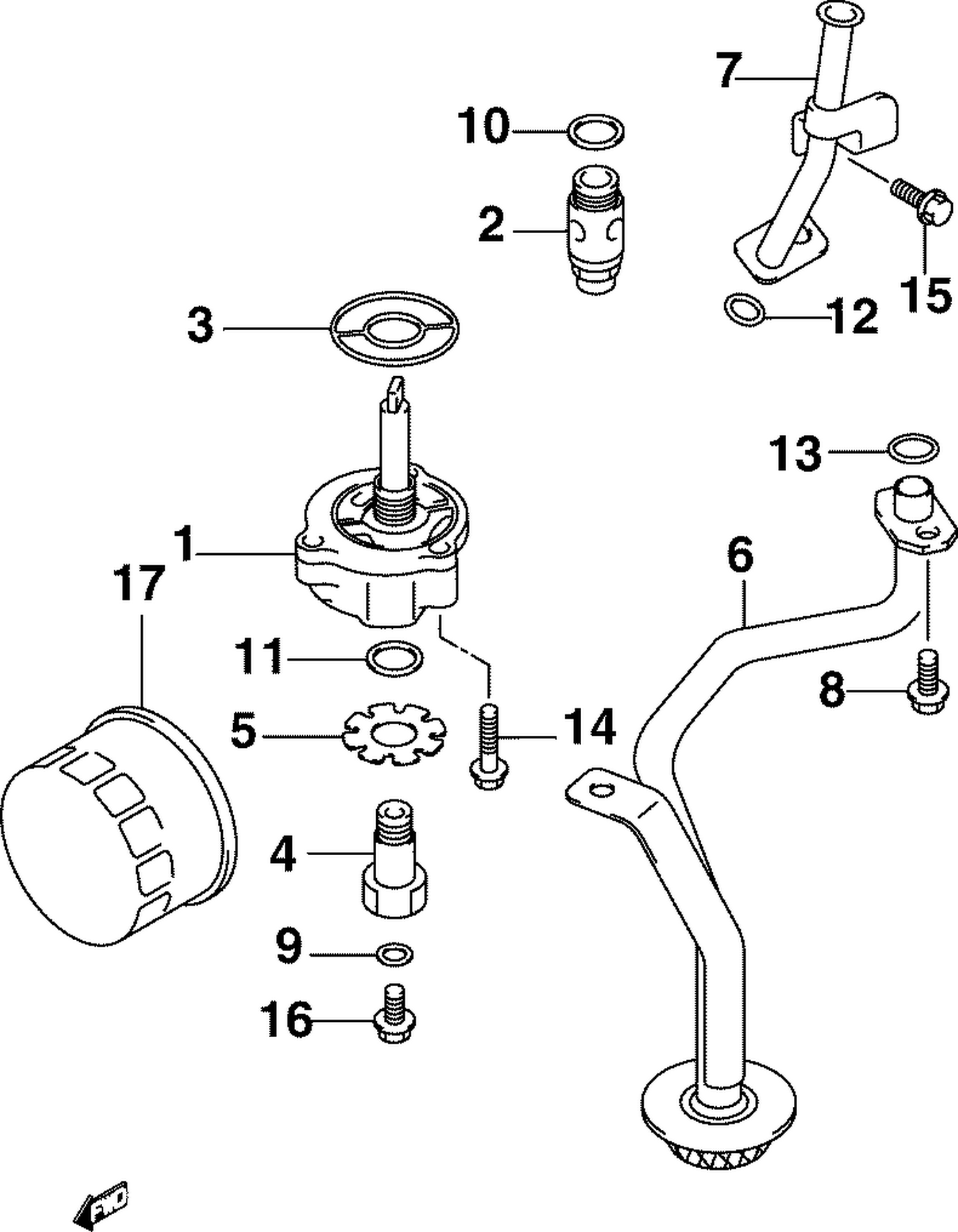

OIL PUMP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031985 | OIL PUMP ASSY. |
| 2 | 5030712 | VALVE Assy, OIL RELIEF |
| 3 | 5031986 | O RING, OIL PUMP |
| 4 | 5030714 | STOP, Oil pump |
| 5 | 5030715 | WASHER, Oil pump stop |
| 6 | 5031987 | STRAINER, Oil |
| 7 | 5034674 | GUIDE, OIL LEVEL GAUGE |
| 8 | 5030392 | BOLT (6X16) |
| 9 | 5036000 | GASKET |
| 10 | 5030469 | GASKET |
| 11 | 5030470 | GASKET |
| 12 | 5032782 | KIT |
| 13 | 5030537 | O RING |
| 14 | 5032286 | BOLT |
| 16 | 5030992 | BOLT |
