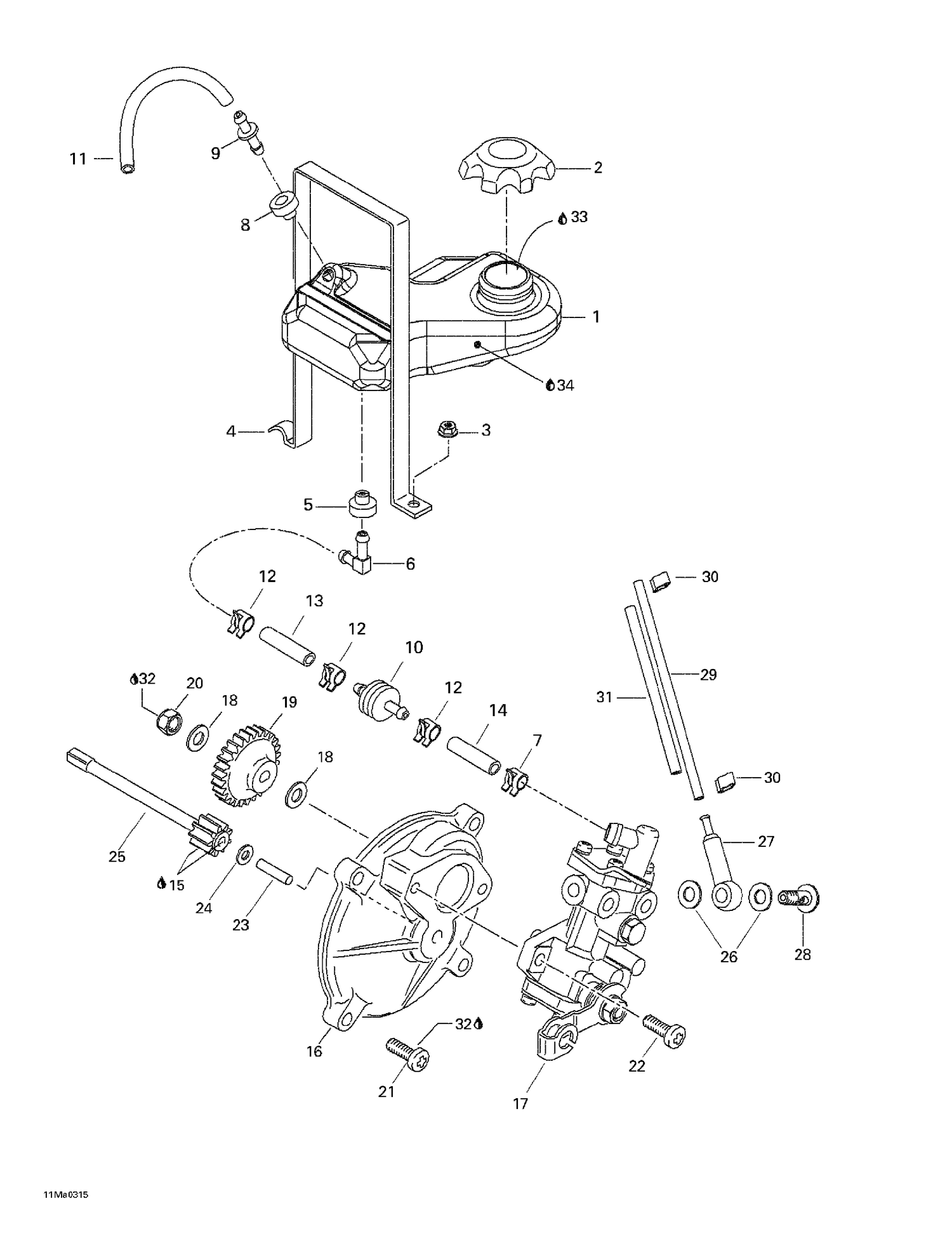

| Ref | Part Number | Description |
|---|
| 1 |
519000046 |
Oil Tank |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 572039600. |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 4 |
517263400 |
Retainer Strip |
| 5 |
709200285 |
Grommet This part replaces 570135100. |
| 6 |
519000055 |
MALE CONNECTOR - Call your local BRP dealership |
| 7 |
513033029 |
Universal Spring Clamp |
| 8 |
570027700 |
GROMMET - Call your local BRP dealership |
| 9 |
275500398 |
Check Valve |
| 10 |
414536500 |
Filter |
| 11 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 12 |
414655700 |
Spring Clamp |
| 13 |
219704422 |
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 14 |
219704422 |
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 15 |
413707000 |
Dow Corning 111, 150 g |
| 16 |
420910160 |
PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 17 |
404046100 |
Oil Pump Ass'y |
| 18 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 19 |
420935930 |
Oil Pump Gear, 27 Teeth |
| 20 |
232561414 |
Elastic Stop Nut M6 |
| 21 |
420841976 |
SCREW - Call your local BRP dealership |
| 22 |
420841971 |
Screw |
| 23 |
420832260 |
NEEDLE PIN - Call your local BRP dealership |
| 24 |
420244072 |
Flat Washer 4 This part replaces 420244073. |
| 25 |
420935975 |
GEAR, 9 TEETH - Call your local BRP dealership |
| 26 |
404146600 |
Sealing Washer |
| 27 |
420956010 |
Valve Ass’Y |
| 28 |
404146800 |
Banjo Bolt M6 X 16 |
| 29 |
Not |
Available As Spare Part - Oil Line |
| 30 |
420853840 |
Clamp |
| 31 |
Not |
Available As Spare Part - Insulator |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
293600120 |
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
