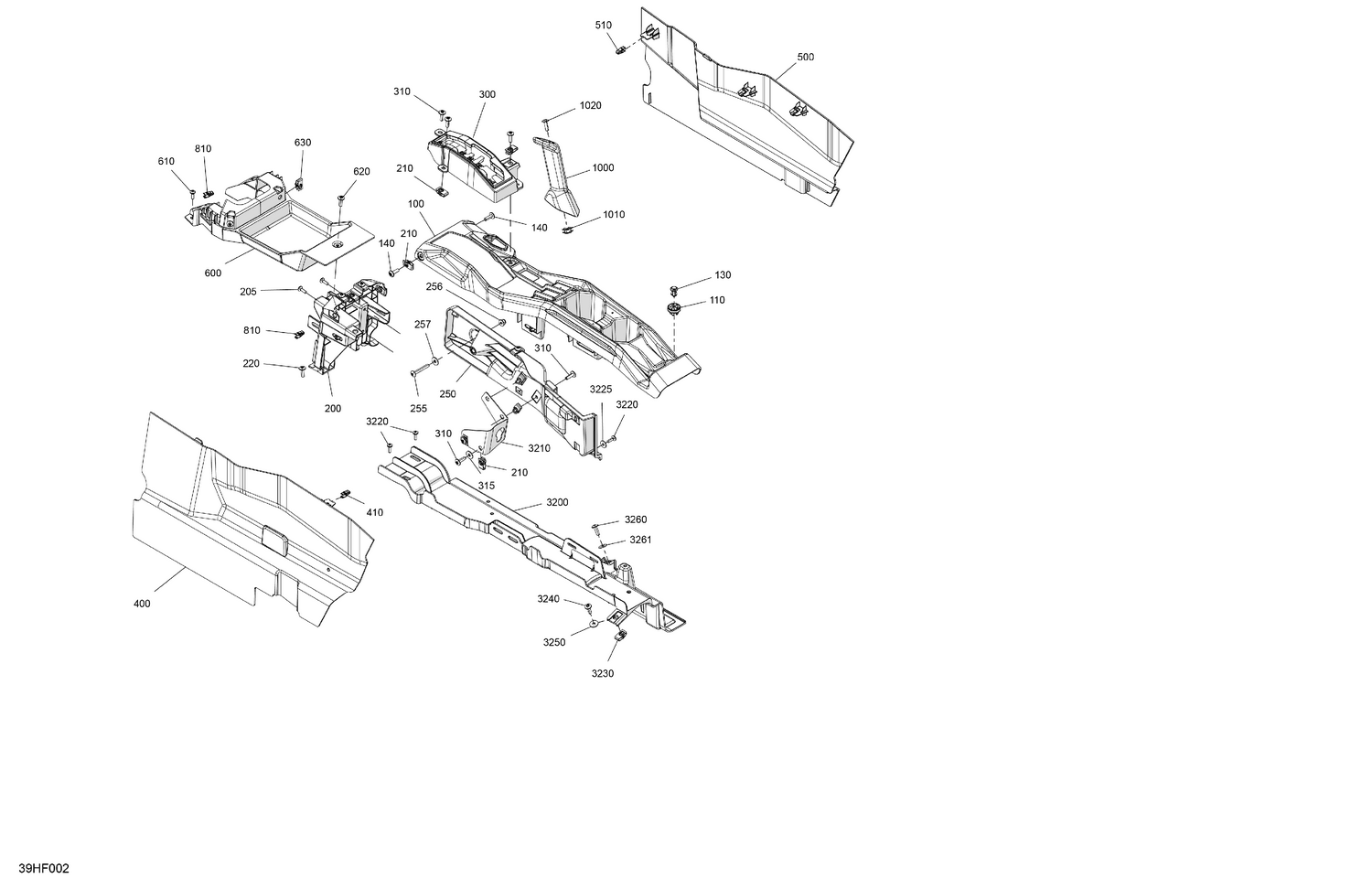

07- Cab Interior - Center Console
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 715006656 | Front Console Ass'y |
| 110 | 707900133 | Insert |
| 130 | 293150230 | Tuflok Plastic Rivet |
| 140 | 250000722 | Torx Screw M6 X 20 |
| 200 | 707900459 | Front Central Console Support |
| 205 | 250000720 | Torx Screw K50 X 16 |
| 210 | 250100198 | Panel Nut M6 X 1.0 |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 250 | 707900488 | Shifter Gate Support |
| 255 | 250000647 | Torx Screw M6 X 45 |
| 256 | 233261466 | Hex. Flange Elastic Nut M6 |
| 257 | 234062670 | Stainless Steel Flat Washer |
| 300 | 707900644 | Lever Indicator |
| 310 | 250000722 | Torx Screw M6 X 20 |
| 315 | 234062670 | Stainless Steel Flat Washer |
| 400 | 707900396 | LH Lateral Dash Panel |
| 410 | 705010721 | Clip |
| 500 | 707900397 | RH Lateral Dash Panel |
| 510 | 705010721 | Clip |
| 600 | 707900460 | Front Top Console This part replaces 707900460. |
| 610 | 250000720 | Torx Screw K50 X 16 |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 630 | 250100198 | Panel Nut M6 X 1.0 |
| 810 | 705010721 | Clip |
| 1000 | 707900011 | Passenger Handle |
| 1010 | 707900048 | Connector Tube |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 3200 | 707900710 | Central Support Hose |
| 3210 | 707901207 | Cable Support |
| 3220 | 250000720 | Torx Screw K50 X 16 |
| 3225 | 250200025 | Washer M5 |
| 3230 | 250100198 | Panel Nut M6 X 1.0 |
| 3240 | 250000722 | Torx Screw M6 X 20 |
| 3250 | 234062670 | Stainless Steel Flat Washer |
| 3260 | 250000722 | Torx Screw M6 X 20 |
