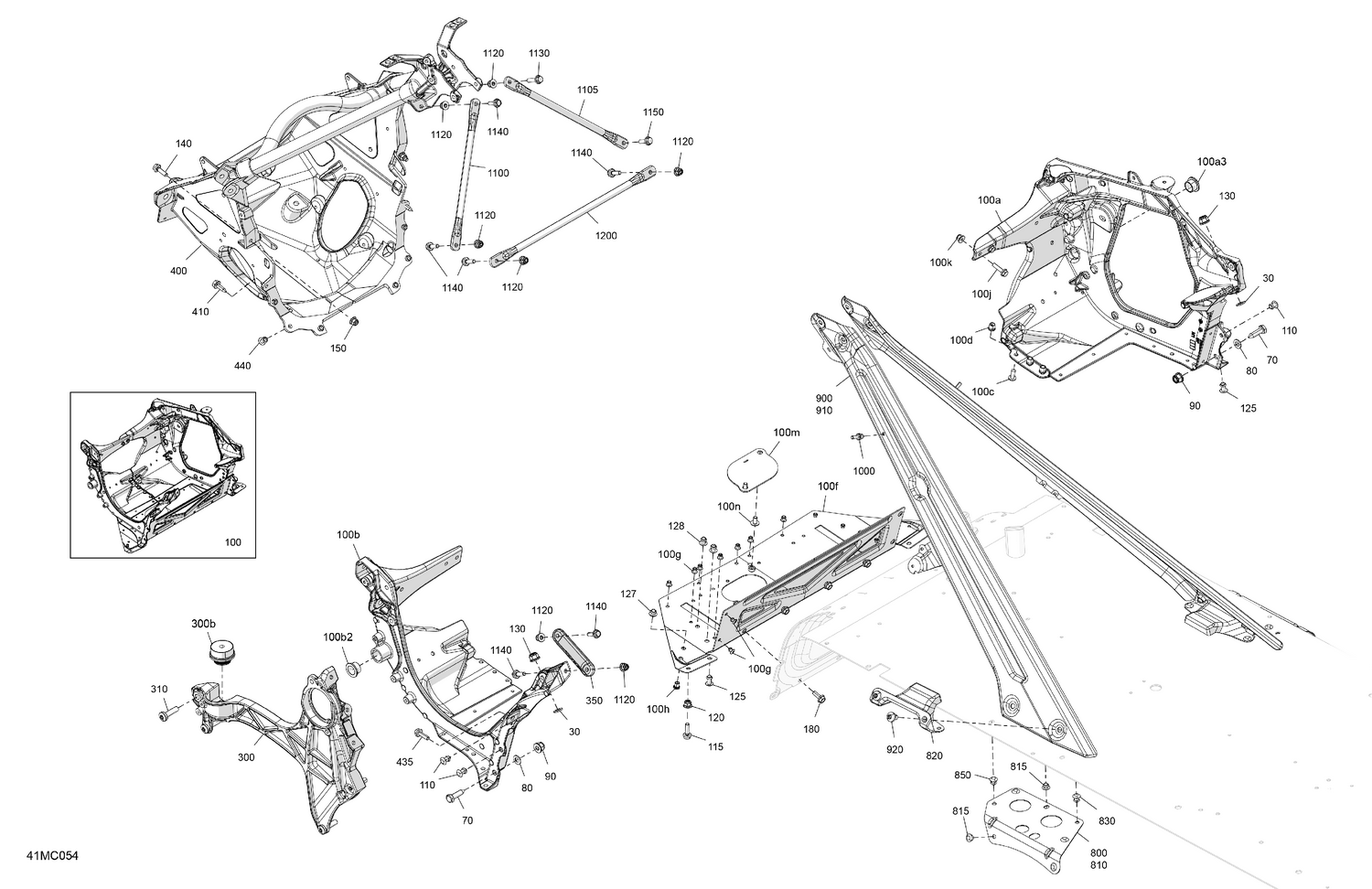

| Ref | Part Number | Description |
|---|
| 30 |
234081430 |
Flat Washer M8 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100k |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100m |
518332276 |
Oil Plate |
| 100n |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 127 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 128 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334461 |
Chassis Suspension Module |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 435 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 440 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 800 |
518332514 |
LH Under Chassis Reinforcement |
| 810 |
518332516 |
RH Under Chassis Reinforcement |
| 815 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 850 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 900 |
518334724 |
Deep Black, LH Rear Diagonal Cross Member Ass'y |
| 910 |
518334725 |
Deep Black, RH Rear Diagonal Cross Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
250300651 |
Protruding Stud M5 x 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1105 |
518330916 |
Upper Side Column Support |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562056 |
Hex. Flange Screw M6 X 20 |
