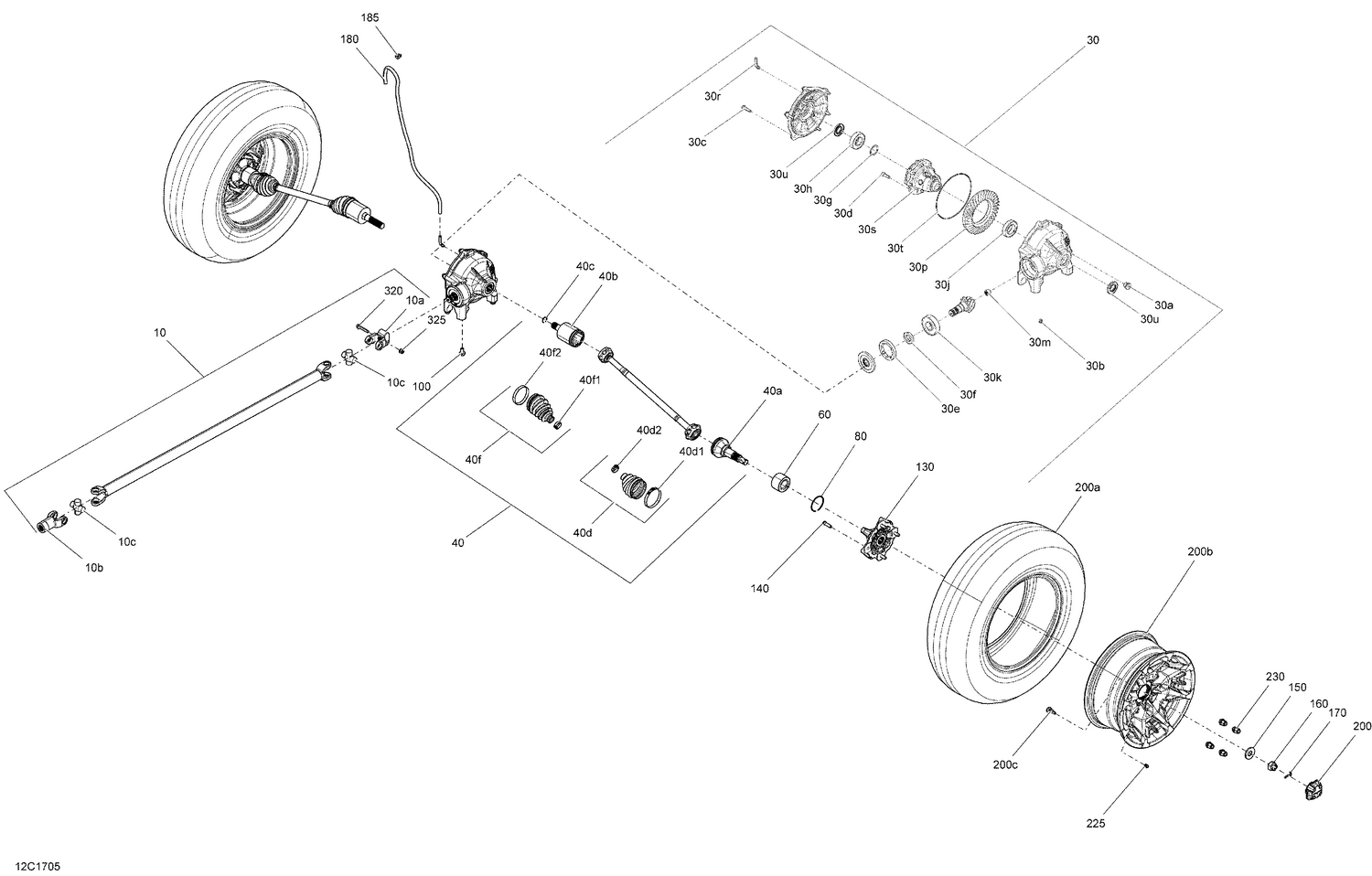

07- Drive System, Front - All Models
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900400 | Fixed Yoke |
| 10b | 715900401 | Yoke |
| 10c | 715900402 | J-Joint Cross Kit |
| 30a | 705501889 | Fill Level Plug |
| 30b | 705501885 | Drain Plug |
| 30c | 705501886 | Bolt |
| 30d | 705402375 | Screw This part replaces 705401818. |
| 30e | 705401819 | Nut M75 X 1.5 |
| 30f | 705401820 | Nut M27 X 1.5 |
| 30g | 705401604 | Shim |
| 30h | 705401606 | Ball Bearing |
| 30j | 705402847 | Ball Bearing This part replaces 705401934. |
| 30k | 705401821 | Ball Bearing |
| 30m | 705402848 | Ball Bearing This part replaces 705401607. |
| 30n | 705401667 | Front Cover |
| 30p | 705402788 | Ring Gear 36 Teeth This part replaces 705401822. |
| 30q | 705401933 | Pinion 10 th. |
| 30r | 705401935 | Vent Valve |
| 30t | 705501881 | Oil Seal iDIA 6.737 oDIA 6.943 |
| 30u | 705401836 | Oil Seal |
| 30v | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 40a | 715900440 | JOINT_CV EXT - Call your local BRP dealership |
| 40b | 715900441 | RH Plunging Joint |
| 40b | 715900442 | Joint Plongeant GA |
| 40c | 705401349 | Circlip Joint |
| 40d1 | 715900282 | Oetiker Clamp |
| 40d2 | 715900283 | Oetiker Clamp, Small |
| 40f1 | 715900261 | Oetiker Clamp, Small |
| 40f2 | 715900262 | Oetiker Clamp, Large |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 80 | 293370019 | Circlip |
| 100 | 207502046 | Hex. Flange Screw M10 X 20 |
| 130 | 705502338 | Wheel Hub |
| 140 | 250300055 | Wheel Stud M10 X 1.25 |
| 150 | 250200147 | Washer M20 |
| 160 | 250100193 | Castle Nut M20 This part replaces 250100161. |
| 170 | 250400071 | Cotter Pin |
| 180 | 219704410 | Polyurethane Hose 10000Mm Long |
| 185 | 414227300 | Clip |
| 200c | 705400193 | Rim Valve With Cap |
| 225 | 293000110 | Valve Cap |
| 320 | 250001050 | Hex. Flange Screw M8 X 42 This part replaces 250000952. |
