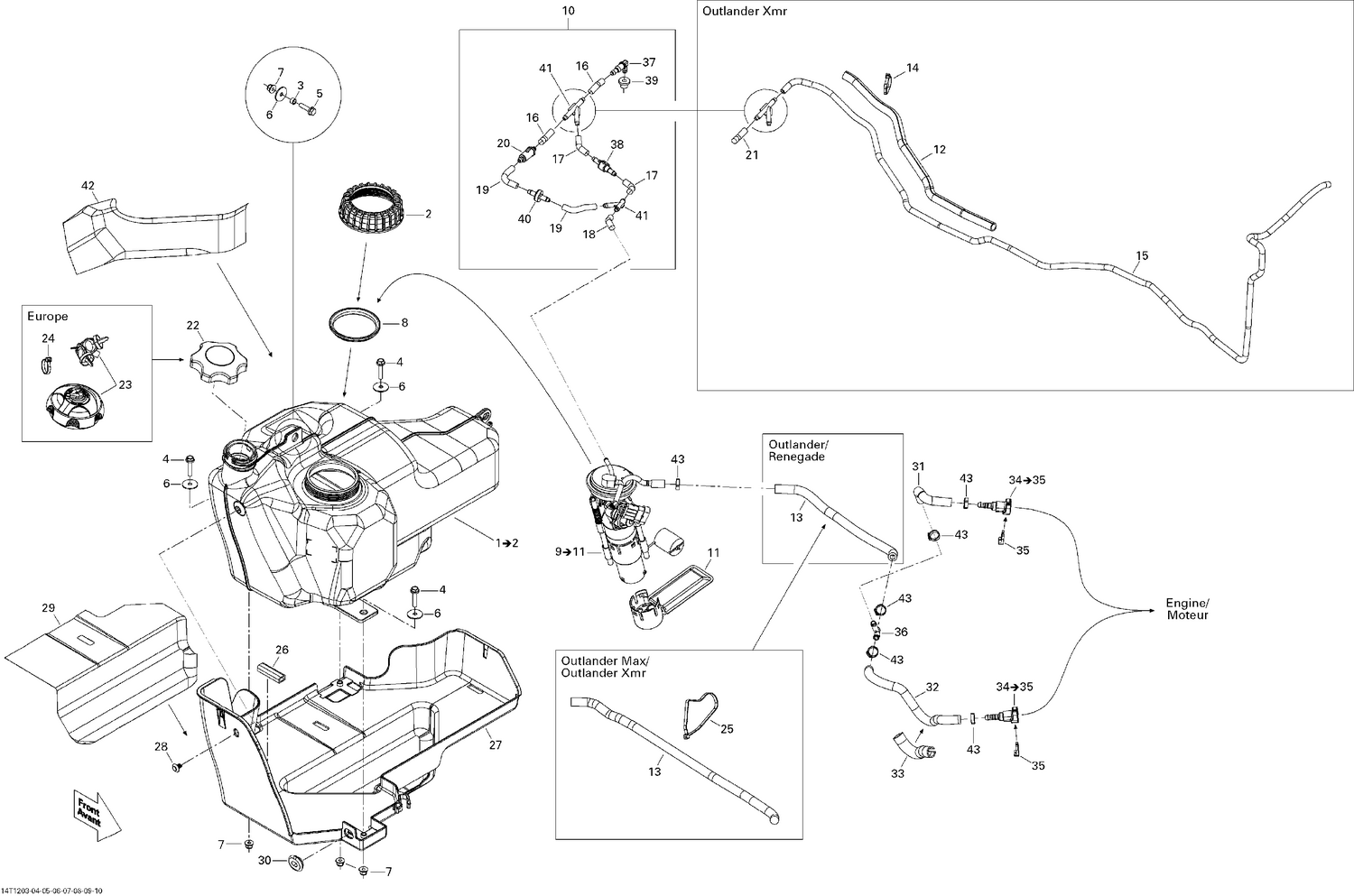

02- Fuel System
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 513033040 | Nut, Fuel Pump Module |
| 3 | 293900104 | Bushing |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 | 207662544 | Hex. Flange Screw M6 X 25 |
| 6 | 224060251 | Washer |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 709000208 | Seal |
| 10 | 715001288 | Fuel Vent Kit |
| 11 | 709000389 | Fuel Pre-Filter Kit |
| 12 | 219704407 | Tubing 10 MM 1000MM Long |
| 13 | 219704440 | Was 709000163 Fuel Line |
| 14 | 293750002 | Tie Wrap 142 mm |
| 15 | 219704410 | Polyurethane Hose 10000Mm Long |
| 16 | XXX | Not Available As Spare Parts |
| 17 | 219704410 | Polyurethane Hose 10000Mm Long |
| 18 | 219704410 | Polyurethane Hose 10000Mm Long |
| 19 | 219704410 | Polyurethane Hose 10000Mm Long |
| 20 | 709000330 | Filter |
| 21 | 219704410 | Polyurethane Hose 10000Mm Long |
| 25 | 293750008 | Tie Wrap 368 mm |
| 26 | 219704365 | Was 293200017 Neoprene Seal |
| 27 | 709000207 | TANK PROTECTOR - Call your local BRP dealership |
| 28 | 293150168 | PLASTIC TUKLOCK RIVET - Call your local BRP dealership |
| 29 | 709000360 | REFLECTING SHEET - Call your local BRP dealership |
| 30 | XXX | Not Available As Spare Parts |
| 31 | 219704440 | Was 709000163 Fuel Line |
| 32 | 219704440 | Was 709000163 Fuel Line |
| 33 | 219704400 | Was 409901800 Tubing (13 mm) |
| 35 | 513033135 | Locking Clip |
| 36 | 293710136 | Y-Fitting, 5/16'' |
| 37 | XXX | Not Available As Spare Parts |
| 38 | 513033469 | Check Valve |
| 39 | XXX | Not Available As Spare Parts |
| 40 | 275500398 | Check Valve |
| 41 | 293710059 | Y-Fitting |
| 42 | 709000204 | REFLECTING SHEET - Call your local BRP dealership |
