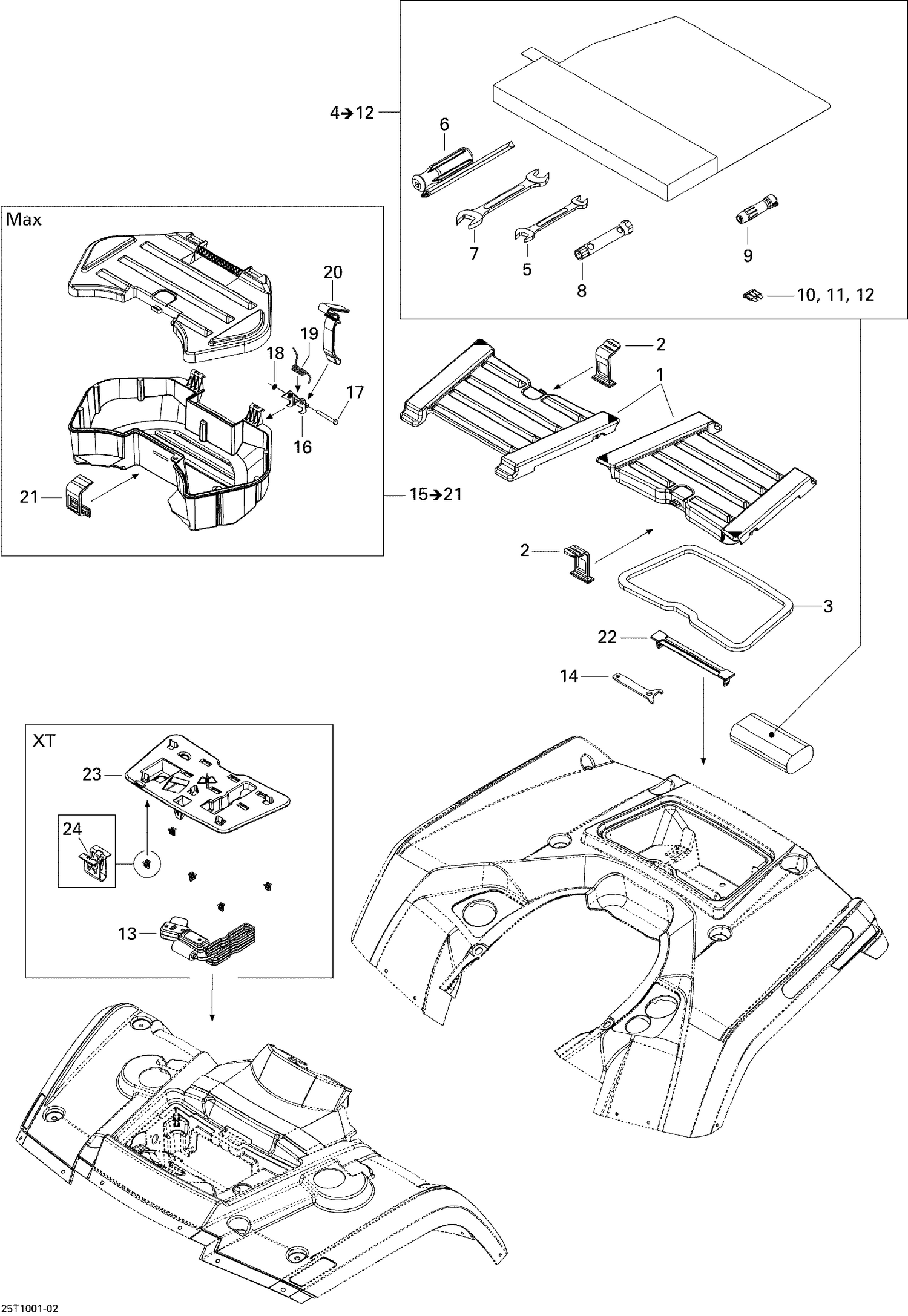

09- Front and Rear Trays
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705003492 | Storage Cover This part replaces 705001853. |
| 2 | 708200120 | Cover Latch |
| 3 | 293250192 | Neoprene Seal |
| 5 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 6 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 7 | 529000003 | FORK WRENCH 15/17 MM - Call your local BRP dealership |
| 8 | 529014900 | Socket Wrench 10/13 mm |
| 9 | 529000052 | PRESSURE GAUGE - Call your local BRP dealership This part replaces 704700003. |
| 10 | 410917200 | Fuse, 30 Amperes |
| 11 | 409003900 | Fuse, 20 Amperes |
| 12 | 278000343 | Fuse, 15 Amperes |
| 14 | 529000035 | Adjustment Wrench |
| 16 | 708200066 | LATCH - Call your local BRP dealership |
| 17 | 207065544 | Hex. Screw M6 X 55 |
| 18 | 732610072 | Push Nut |
| 19 | 708000369 | Spring |
| 20 | 510004495 | BELT - Call your local BRP dealership |
| 21 | 708200120 | Cover Latch |
| 22 | 708200121 | COVER LATCH KIT - Call your local BRP dealership |
