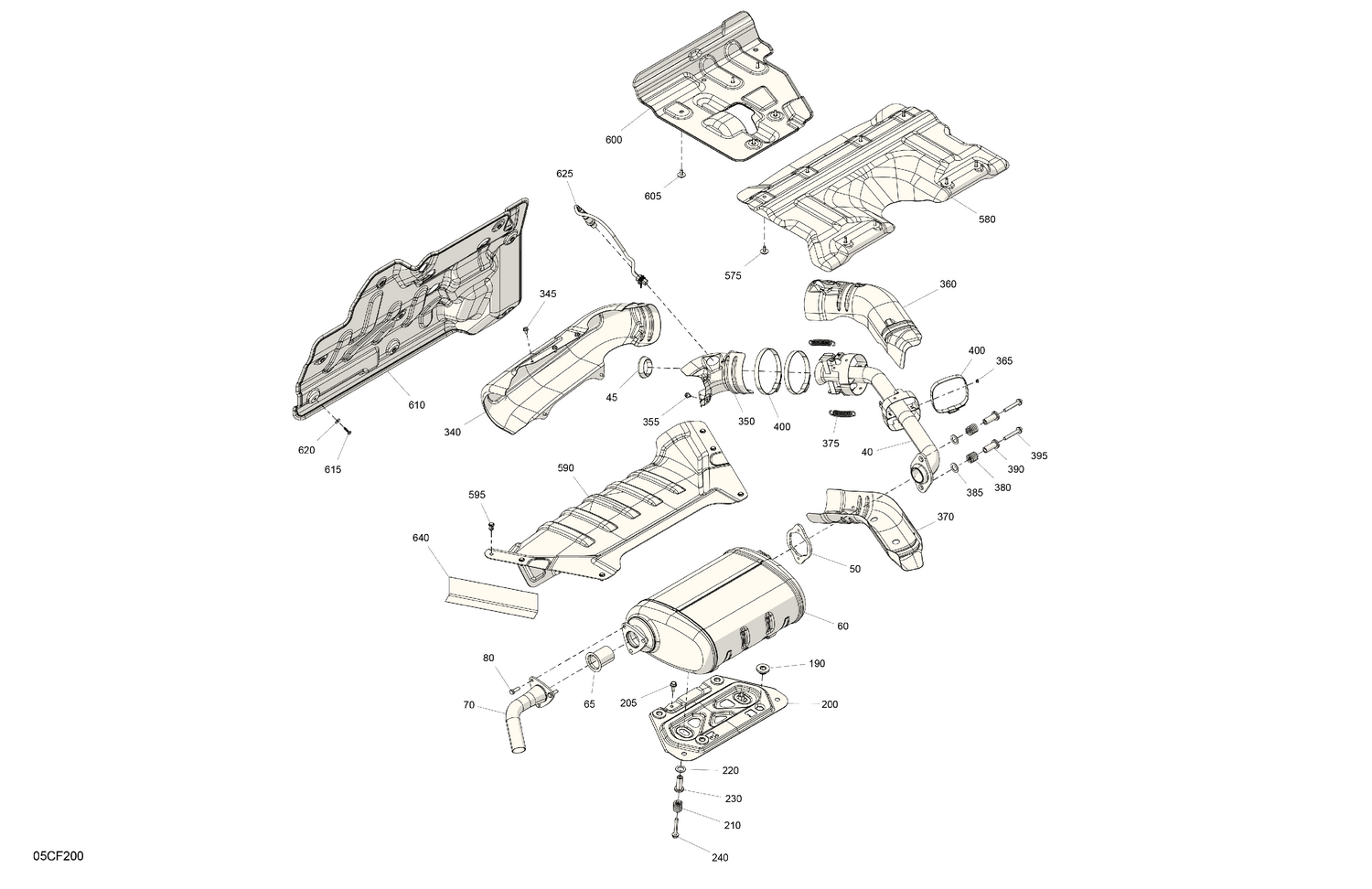

02- Engine - Exhaust
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 40 | 707603434 | Exhaust Pipe |
| 45 | 707601033 | Exhaust Gasket |
| 50 | 707604042 | Exhaust Flange |
| 60 | 707603824 | Exhaust Muffler Ass'y |
| 65 | 707601803 | Spark Arrester |
| 70 | 707603861 | Exhaust Pipe Out |
| 80 | 207182546 | Hex. Screw Cap DIN.933 |
| 190 | 707602802 | Vibration Damper |
| 200 | 707603782 | Formed Exhaust Support |
| 205 | 207582046 | Hex Flange Screw M8 X 20 |
| 210 | 707600682 | Spring |
| 220 | 503189273 | Washer |
| 230 | 707603867 | Bushing Long |
| 240 | 207585544 | Hex. Flange Screw M8 X 55 |
| 340 | 707603645 | Heat Shield |
| 345 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 350 | 707603646 | Interior Heat Shield |
| 355 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 360 | 707603505 | Upper Heat Shield |
| 365 | 390402400 | Pop Rivet 3/16" |
| 370 | 707603506 | Lower Heat Shield |
| 375 | 707601834 | Spring |
| 380 | 707600682 | Spring |
| 385 | 503189273 | Washer |
| 390 | 707603867 | Bushing Long |
| 395 | 207585544 | Hex. Flange Screw M8 X 55 |
| 400 | 293650054 | Tridon Clamp |
| 575 | 250001165 | Hex Sems Screw M6X20 |
| 580 | 707604121 | Heat Shield |
| 590 | 707604124 | Heat Shield |
| 595 | 293150230 | Tuflok Plastic Rivet |
| 600 | 707603498 | Heat Shield |
| 605 | 250001165 | Hex Sems Screw M6X20 |
| 610 | 707603504 | Front Heat Shield |
| 615 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 620 | 250200025 | Washer M5 |
| 625 | 707600872 | Oxygen Sensor |
