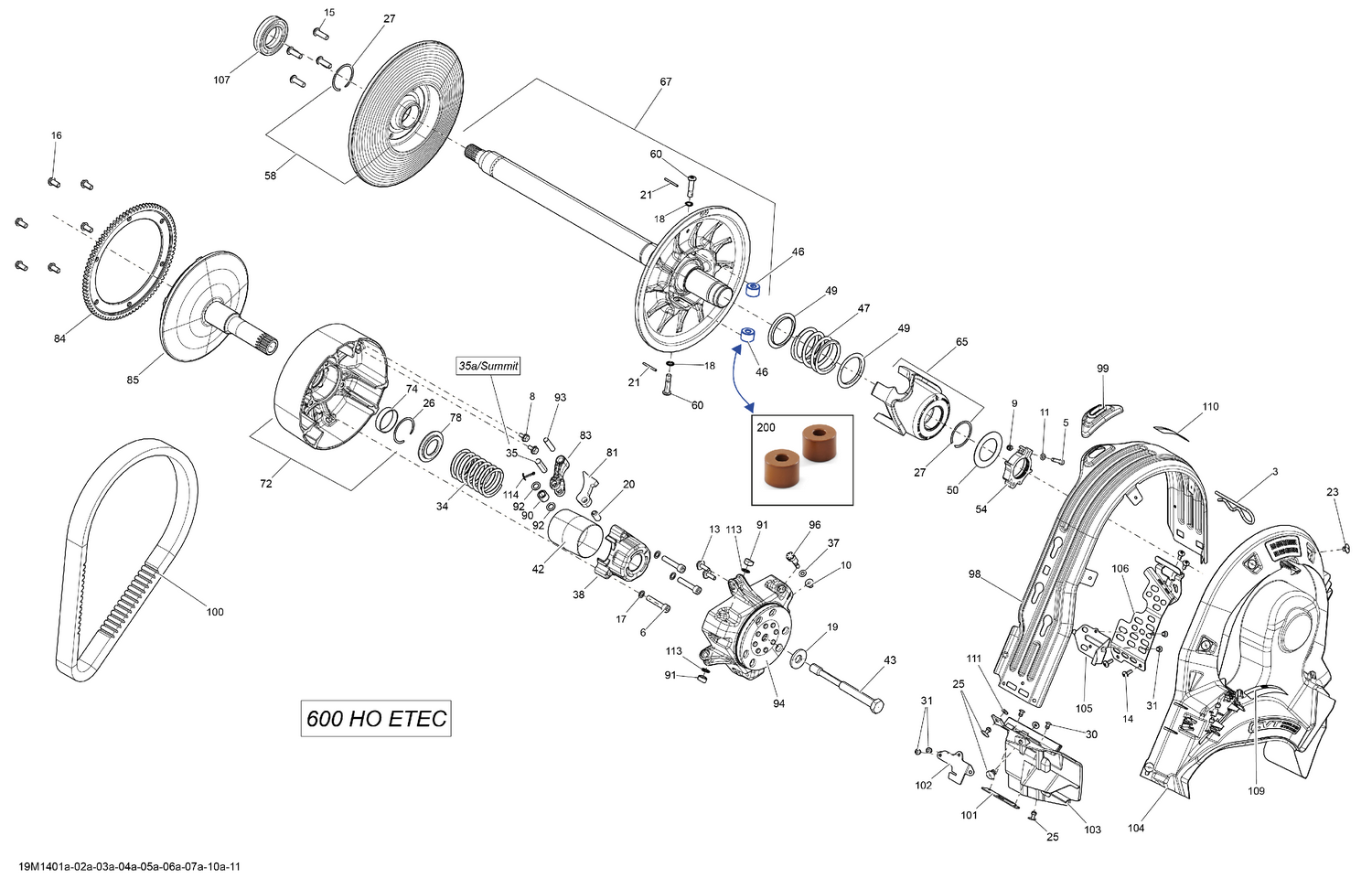

05- Pulley System 600 HO ETEC
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 114045200 | Hair Pin |
| 5 | 205052544 | Socket Screw M5 X 25 |
| 6 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 8 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 9 | 232551414 | Elastic Stop Nut M5 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 234051410 | Flat Washer M5 |
| 13 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 14 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 15 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 16 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 17 | 250200009 | Lock Washer 8 mm |
| 18 | 250200009 | Lock Washer 8 mm |
| 19 | 250200144 | Conical Spring Washer M14 |
| 20 | 250400050 | Spring Pin M10 X 22 |
| 21 | 250400063 | Spring Pin M3 X 30 |
| 23 | 293150103 | Pop Rivet 3/16" |
| 25 | 293150104 | Pop Rivet 3/16" |
| 26 | 293370037 | Circlip |
| 27 | 293370049 | Circlip |
| 30 | 390909100 | Avex Rivet |
| 31 | 390909200 | Avex Rivet |
| 34 | 415015400 | Spring, Violet/green |
| 35 | 417222477 | Threaded Pin |
| 35a | 250000410 | Socket Set Screw M6 X 1.0 X 16 |
| 37 | 417005600 | Washer |
| 38 | 417007500 | Spring Cover Ass'y |
| 42 | 417009205 | Guard |
| 43 | 417120000 | Drive Pulley Bolt |
| 46 | 417127016 | Pulley Roller |
| 47 | 417127039 | Black, Return Spring |
| 49 | 417127116 | Swivel Abutment |
| 50 | 417127155 | Washer |
| 54 | 415129604 | Calibration Ass'y |
| 58 | 417127317 | Sliding Flange Ass'y |
| 60 | 417127294 | Pivot Stud |
| 65 | 417127376 | Cam Ass'y |
| 67 | 417127389 | Fix Flange Ass'y |
| 72 | 417222181 | Sliding Flange Ass'y |
| 74 | 417222758 | Bushing |
| 78 | 417222312 | Spring Seat |
| 81 | 417223096 | Ramp 440 |
| 83 | 417222671 | Lever |
| 84 | 417225070 | Ring Gear_Starter This part replaces 417223738. |
| 85 | 417222937 | Fixed Flange Ass'y |
| 90 | 417222947 | Roller |
| 91 | 417223271 | Slider Shoe |
| 92 | 417004302 | Stopper Washer |
| 93 | 417223164 | Lever Axle |
| 94 | 417223669 | Governor Cup Ass'y |
| 96 | 417223501 | Calibration Screw |
| 98 | 417300357 | Belt Guard |
| 99 | 417300381 | Guide |
| 100 | 417300551 | Drive Belt This part replaces 417300383. |
| 101 | 417300421 | Reinforcement Plate |
| 102 | 417300423 | Front Bracket |
| 103 | 417300430 | Front Support |
| 104 | 417300440 | CVT Air Duct Pulley |
| 105 | 417300445 | Stopper |
| 106 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 107 | 504152574 | Ball Bearing |
| 109 | 516005503 | Decal English |
| 110 | 516005509 | Safety Belt Guard Decal |
| 111 | 517225900 | Flat Washer |
| 113 | 732401030 | O-Ring |
| 114 | 250400060 | Cotter Pin |
