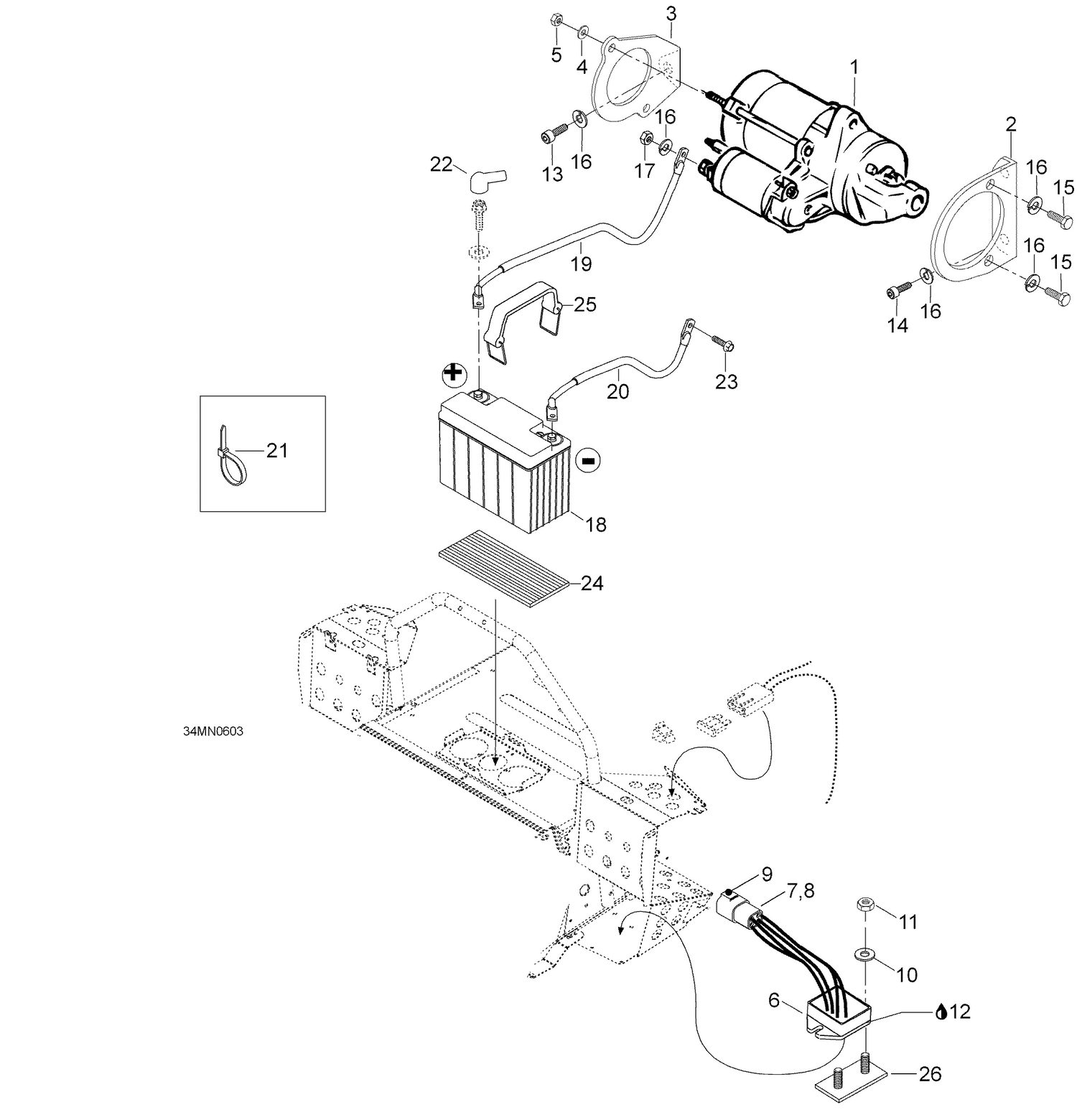

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 3 |
420951426 |
STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 4 |
20008 |
Washer A5,3 |
| 5 |
33009 |
Elastic stop nut M5 |
| 7 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 8 |
515175568 |
Male terminal |
| 9 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 10 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 11 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 12 |
413707500 |
Lithium-grease |
| 13 |
40066 |
Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 14 |
40305 |
Socket head screw M8 x 20 |
| 15 |
40036 |
Hex. screw M8 x 20 |
| 16 |
20014 |
Lock washer A8 |
| 17 |
33003 |
Nut M8 |
| 18 |
296000444 |
Battery YUASA YTX20L This part replaces 515175642. |
| 19 |
605349434 |
BATTERY WIRE - Call your local BRP dealership |
| 20 |
549887 |
Ground wire |
| 21 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 22 |
570151000 |
Cap protection |
| 23 |
40327 |
Hex. screw M6 x 12 |
| 24 |
605350237 |
BATTERY CARPET - Call your local BRP dealership |
| 25 |
515176044 |
Retainer strap This part replaces 515175475. |
