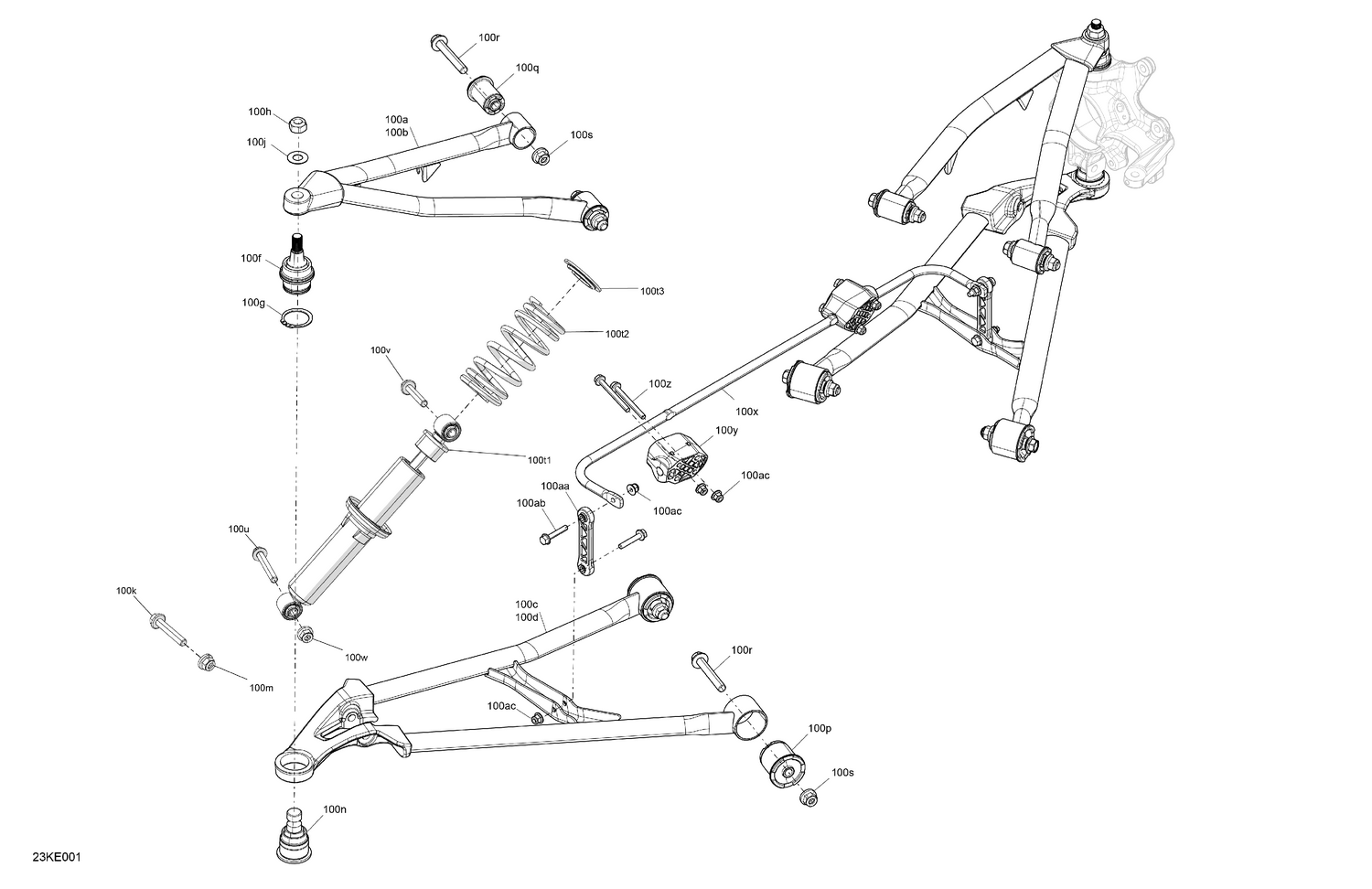

05- Suspension - Front
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 706202644 | LH Upper Arm |
| 100aa | 505072204 | Sway Bar Double Joint Link |
| 100ab | 207663554 | Hex. Flange Screw M6 X 35 |
| 100b | 706202645 | RH Upper Arm |
| 100c | 706204700 | LH Lower Suspension Arm |
| 100d | 706204701 | RH Lower Suspension Arm |
| 100f | 706203147 | Ball Joint |
| 100g | 293370035 | Circlip |
| 100h | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 100j | 706200281 | Hardened Washer |
| 100k | 207605554 | Hex. Flange Screw M10 X 55 |
| 100m | 233201466 | Flange Elastic Nut M10 |
| 100n | 706202508 | Ball Joint |
| 100p | 706203143 | Lower Suspension Arm Bushing |
| 100q | 706202549 | Upper Suspension Arm Bushing |
| 100r | 207606556 | Hex. Flange Screw M10 X 65 |
| 100s | 233201466 | Flange Elastic Nut M10 |
| 100t1 | 706002379 | Shock |
| 100t2 | 706206078 | Carbon Black, Compression Spring This part replaces 706205488. |
| 100t3 | 706203670 | Spring Stopper |
| 100u | 207607056 | Hex. Flange Screw M10 X 70 |
| 100v | 207605554 | Hex. Flange Screw M10 X 55 |
| 100w | 233201466 | Flange Elastic Nut M10 |
| 100x | 706202710 | Sway Bar |
| 100y | 706204465 | Bushing |
| 100z | 207666044 | Hex. Flange Screw M6 X 60 |
