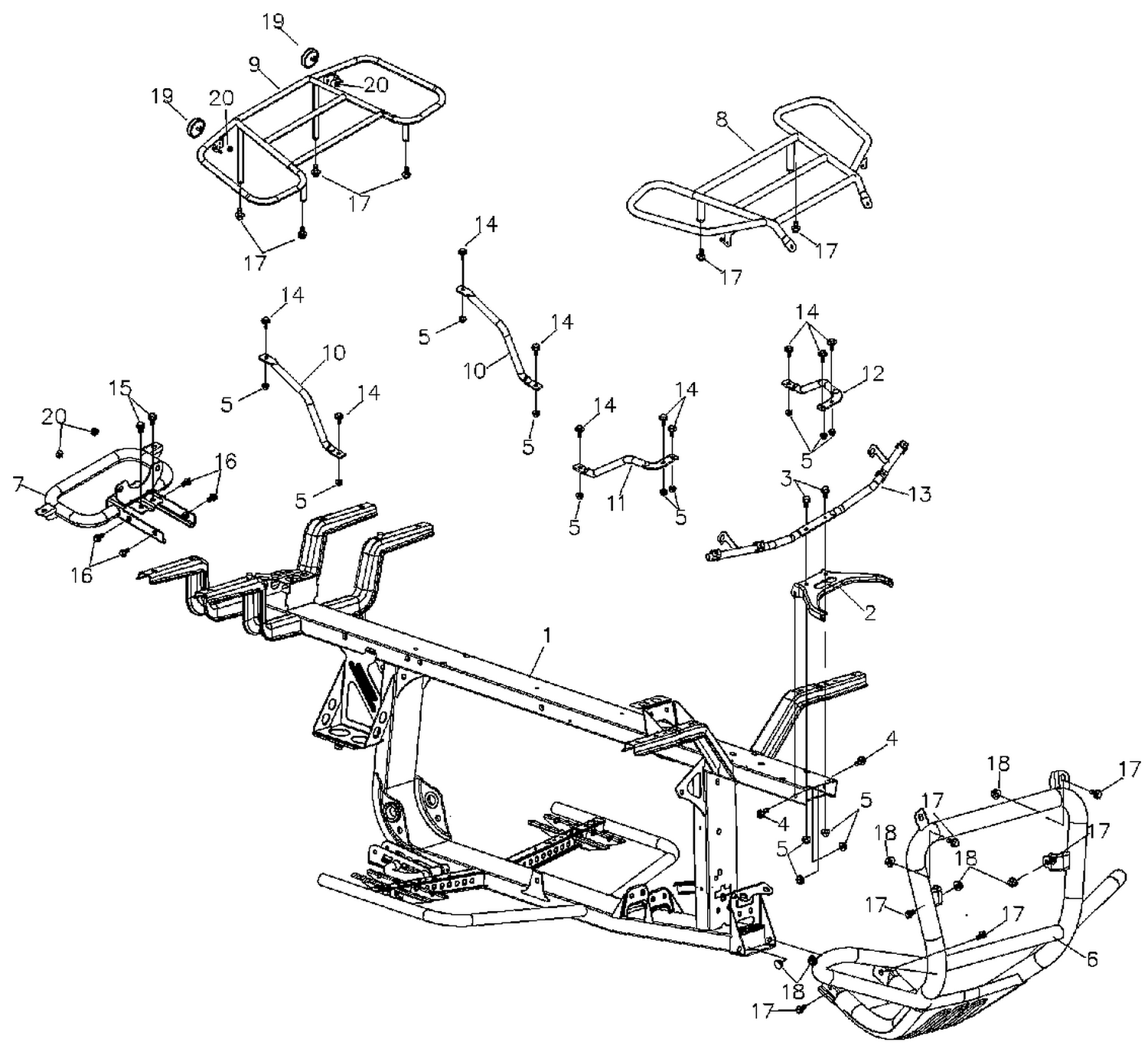

09- Frame And Luggage Racks EUROPE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A5010017900B | Frame |
| 2 | A50114179000 | Front Plate |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | A5010417900B | Front Bumper |
| 7 | A5010517900B | Rear Bumper |
| 8 | A6120017900B | Front Rack |
| 9 | A8120017900B | Rear Rack |
| 10 | A83401179000 | Rear Cover Pole |
| 11 | A64307179000 | RH Front Cover Pole |
| 12 | A64308179000 | LH Front Cover Pole |
| 13 | A64336179000 | Front Fascia Pole |
| 14 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 15 | A9600008016G | SCREW-HEX.FLANGE M8 X 16 - Call your local BRP dealership |
| 16 | A9600008016GL | Hex. Flange Screw M8 X 16, Scotch Grip |
| 17 | 207682044 | Hex. Flange Screw M8 X 20 |
| 18 | 233281416 | Hex. Elastic Flange Nut M8 |
| 19 | A33741145000RD | REFLECTOR - Call your local BRP dealership |
