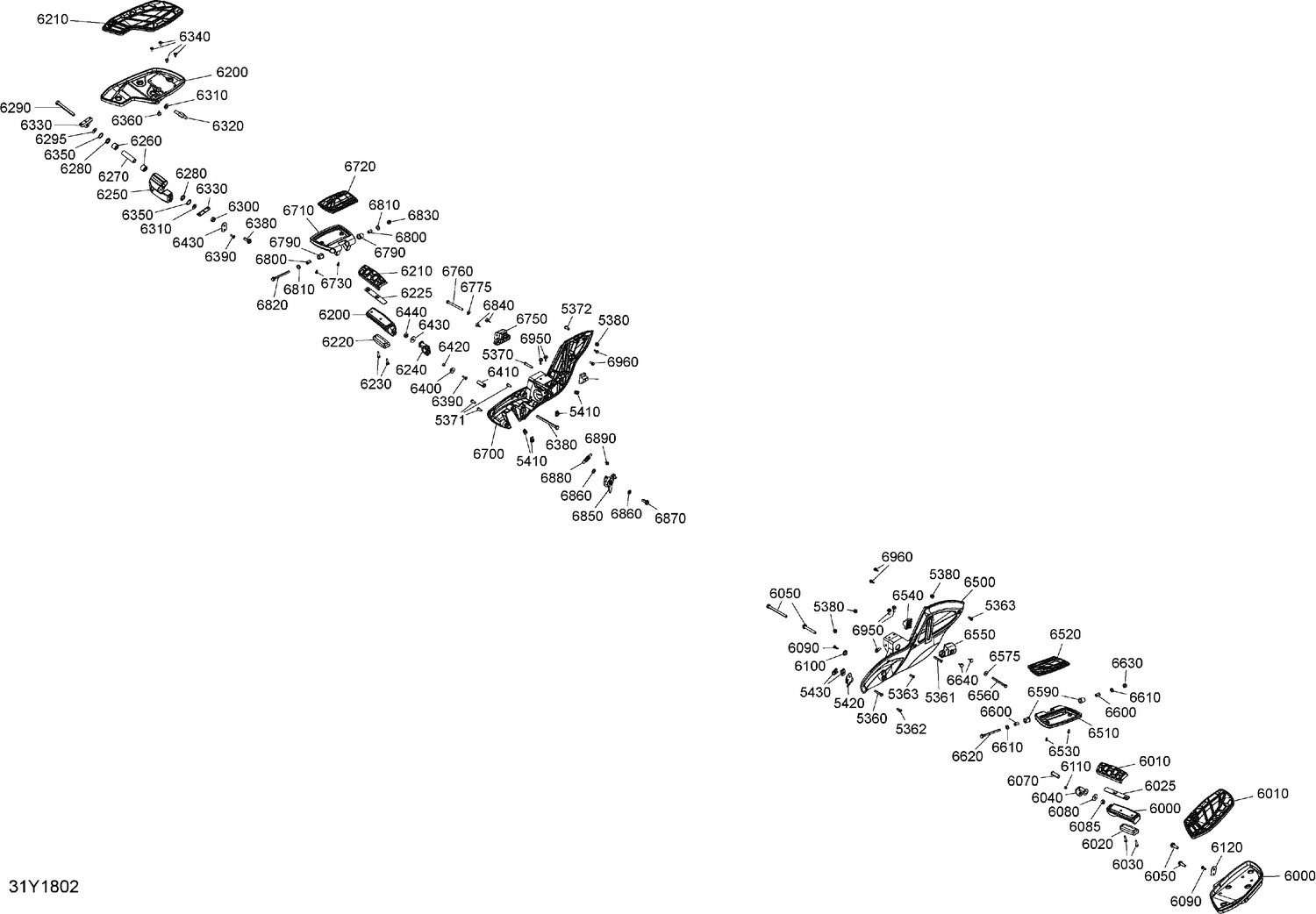

09- Body And Accessories - Footrest
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 5360 | 205484560 | Socket Screw M8 X 45 |
| 5361 | 205484560 | Socket Screw M8 X 45 |
| 5362 | 205482060 | Socket Head Screw M8 X 20 |
| 5363 | 205482060 | Socket Head Screw M8 X 20 |
| 5370 | 205484560 | Socket Screw M8 X 45 |
| 5371 | 205482060 | Socket Head Screw M8 X 20 |
| 5372 | 205482060 | Socket Head Screw M8 X 20 |
| 5380 | 233281434 | Hex. Flange Elastic Nut M8 |
| 5410 | 250100111 | Panel Nut M8 |
| 5420 | 705007375 | Panel Support |
| 5430 | 250100069 | Panel Nut M8 X 1.25 |
| 6000 | 705006833 | Black LH Front Footrest |
| 6010 | 705003732 | LH Front Footpeg Pad |
| 6020 | 705003730 | Vibration Dampener |
| 6025 | 705003731 | Front Pad Plate |
| 6030 | 210263050 | Hex. Flange Screw M6 X 30 |
| 6040 | 705003616 | LH Rubber Bushing |
| 6070 | 706201151 | Inner Bushing |
| 6080 | 234002600 | Flat Washer 10 mm, Stainless |
| 6085 | 232500416 | Elastic Stop Nut M10 |
| 6090 | 250000722 | Torx Screw M6 X 20 |
| 6100 | 705003932 | Grommet |
| 6110 | 709000162 | Bushing |
| 6200 | 705006836 | Black RH Front Footrest |
| 6210 | 705003245 | RH Front Footpeg Pad |
| 6220 | 705003730 | Vibration Dampener |
| 6225 | 705003731 | Front Pad Plate |
| 6230 | 210263050 | Hex. Flange Screw M6 X 30 |
| 6240 | 705003615 | RH Rubber Bushing |
| 6380 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 6390 | 250000722 | Torx Screw M6 X 20 |
| 6400 | 705003932 | Grommet |
| 6410 | 706201151 | Inner Bushing |
| 6420 | 709000162 | Bushing |
| 6430 | 234002600 | Flat Washer 10 mm, Stainless |
| 6440 | 232500416 | Elastic Stop Nut M10 |
| 6500 | 705008525 | Black LH Footrest Support |
| 6510 | 705011155 | Carbon Black, Rear Footrests This part replaces 705008533. |
| 6520 | 705007461 | LH Rubber Rear Pad |
| 6530 | 250000099 | Allen Plastite Screw #12 |
| 6540 | 705003013 | Adjuster Block |
| 6550 | 548875375 | Carbon Black, Sliding Block -Tx This part replaces 705008516. |
| 6560 | 207189060 | Hex. Screw M8 x 90 |
| 6575 | 234281704 | Spring Washer M8 |
| 6590 | 705003018 | Rubber Bushing |
| 6600 | 705002153 | Bushing |
| 6610 | 503183800 | Washer |
| 6620 | 230681034 | Hex. Flange Screw M8 X 110 |
| 6630 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6640 | 708000759 | Rubber Stopper |
| 6700 | 705008529 | Black RH Footrest Support |
| 6710 | 705011155 | Carbon Black, Rear Footrests This part replaces 705008533. |
| 6720 | 705007472 | RH Rubber Rear Pad |
| 6730 | 250000099 | Allen Plastite Screw #12 |
| 6740 | 705003013 | Adjuster Block |
| 6750 | 548875375 | Carbon Black, Sliding Block -Tx This part replaces 705008516. |
| 6760 | 207189060 | Hex. Screw M8 x 90 |
| 6775 | 234281704 | Spring Washer M8 |
| 6790 | 705003018 | Rubber Bushing |
| 6800 | 705002153 | Bushing |
| 6810 | 503183800 | Washer |
| 6820 | 230681034 | Hex. Flange Screw M8 X 110 |
| 6830 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6840 | 708000759 | Rubber Stopper |
| 6950 | 207582054 | Hex Screw Washer Head M8 X 20 |
