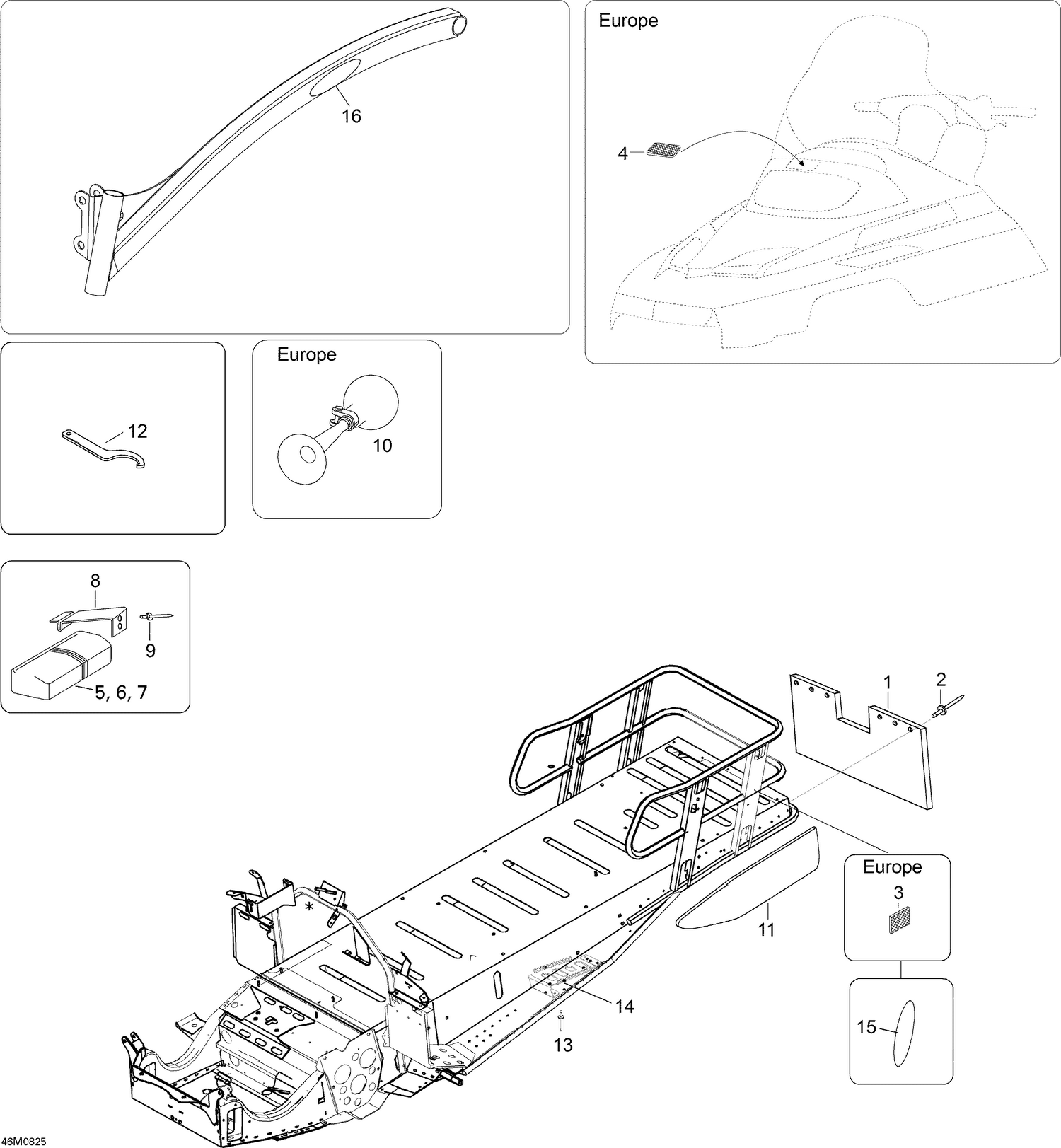

| Ref | Part Number | Description |
|---|
| 1 |
538629 |
Snow guard This part replaces M538629. |
| 2 |
M36036 |
Black, Rivet |
| 5 |
605352219 |
TOOL SET - Call your local BRP dealership |
| 6 |
A50121179000 |
TOOL BOX - Call your local BRP dealership |
| 7 |
Not |
Available As Spare Part - Box Cover |
| 8 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
| 9 |
36108 |
Rivet This part replaces M36108. |
| 11 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 11 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 12 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 13 |
M36489 |
Rivet |
| 14 |
605354068 |
FOOTREST - Call your local BRP dealership |
| 15 |
520000523 |
REFLECTOR - Call your local BRP dealership |
