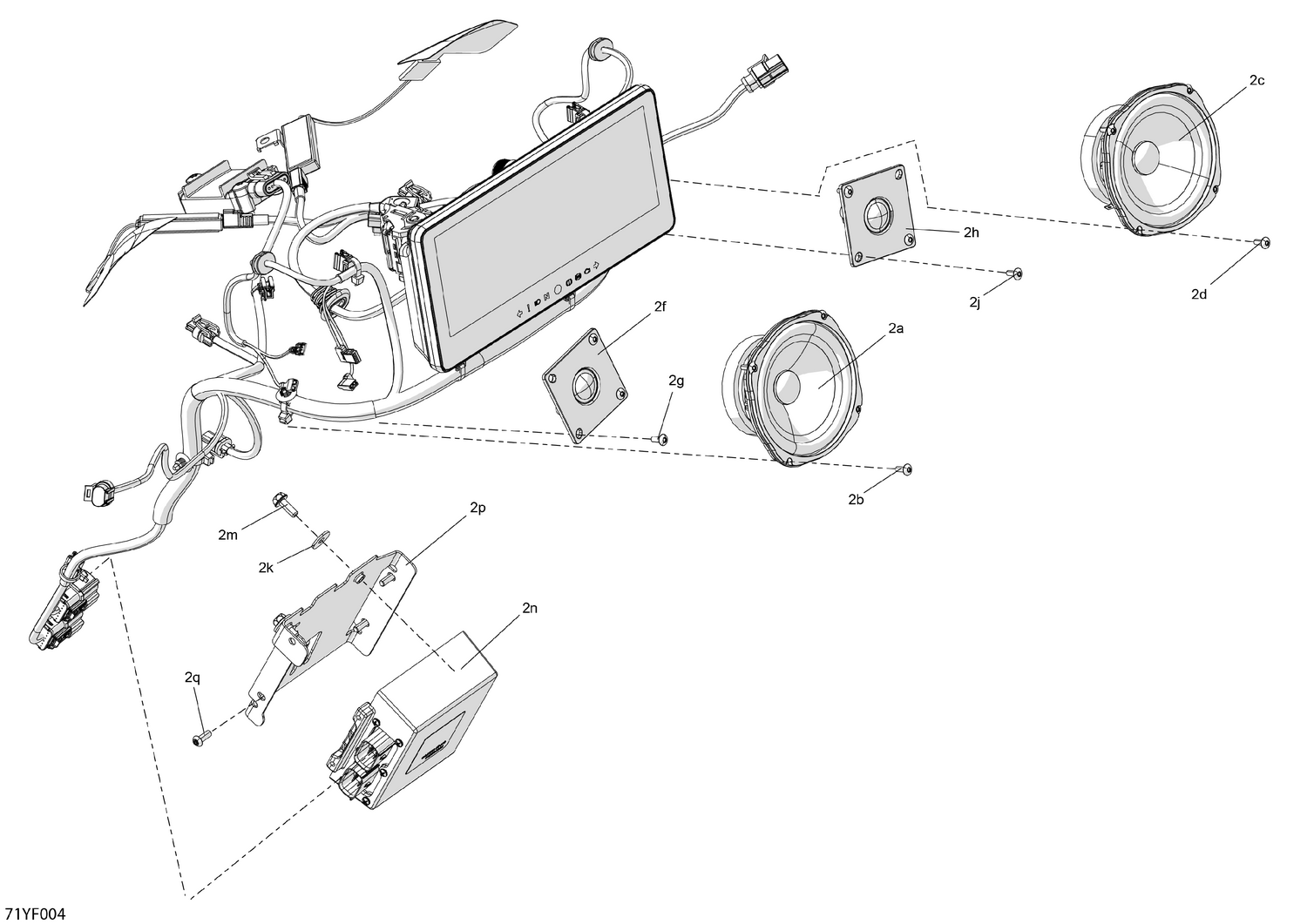

08- Electric - Audio System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2b | 250000577 | Torx Truss Screw K40 X 12 |
| 2d | 250000577 | Torx Truss Screw K40 X 12 |
| 2f | 710006796 | Loudspeaker Tweeter |
| 2g | 250000577 | Torx Truss Screw K40 X 12 |
| 2h | 710006796 | Loudspeaker Tweeter |
| 2j | 250000577 | Torx Truss Screw K40 X 12 |
| 2k | 234062670 | Stainless Steel Flat Washer |
| 2m | 210262050 | Hexagonal Head Screw |
| 2n | 710006566 | Amplifier 6 x 20 Watts |
| 2p | 710010814 | Amplifier Support |
