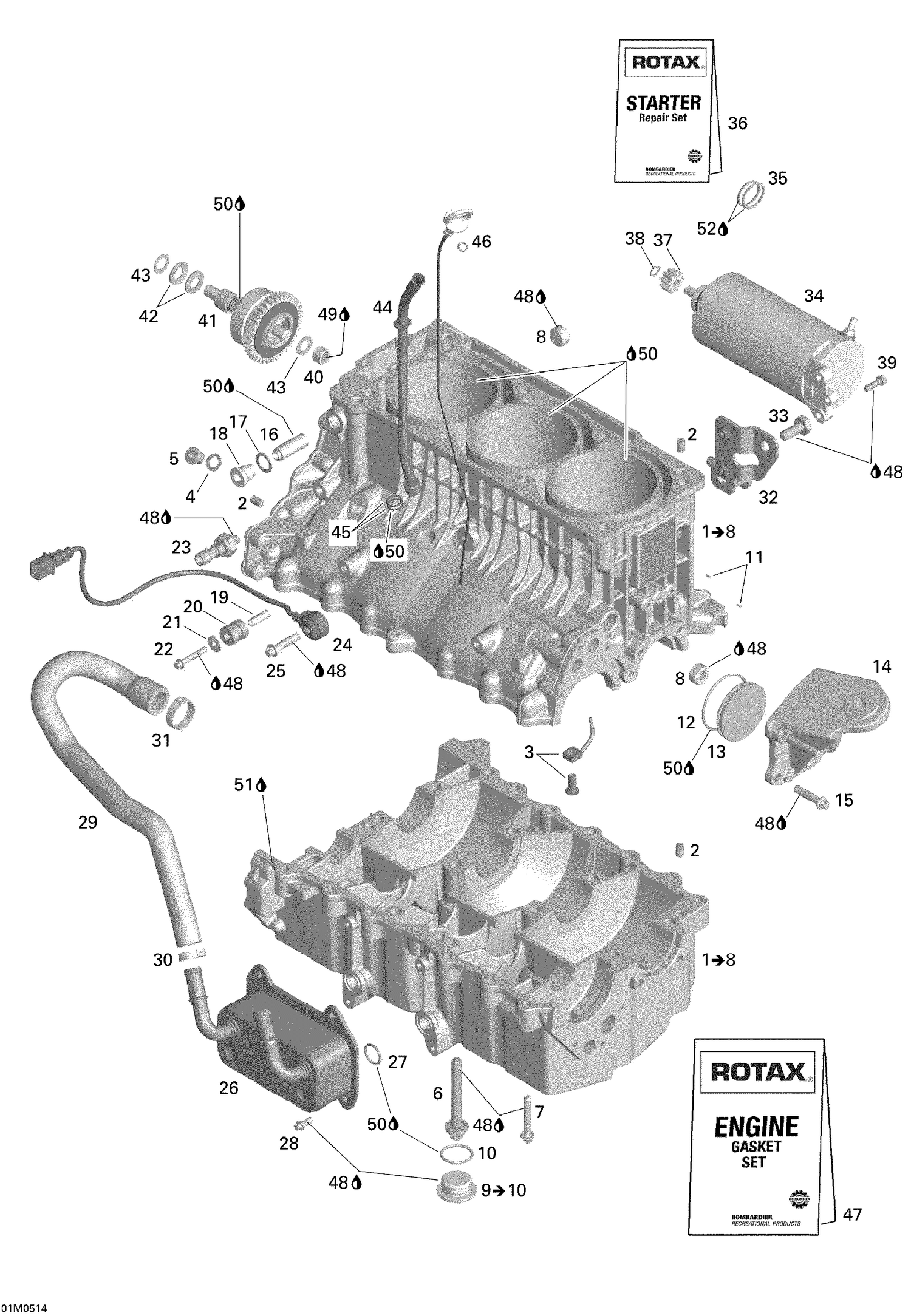

| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420956827 |
Oil Spray Nozzle This part replaces 420956775. |
| 4 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 5 |
420841923 |
Plug Screw M12 |
| 6 |
420641120 |
Torx Flange Screw M10 X 82 |
| 7 |
420641208 |
Hex. Flange Screw M8 X 45 This part replaces 420641203. |
| 8 |
420641317 |
Plug Screw M20 X 1.5 This part replaces 420641313. |
| 10 |
420631300 |
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws |
| 11 |
420249073 |
Grooved Pin |
| 12 |
420430411 |
O-Ring 57-3 Cylinder Bloc Plug Cover This part replaces 420430405. |
| 13 |
420660110 |
Plug Cover |
| 14 |
420811792 |
FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811790. |
| 15 |
420641188 |
Torx Flange Screw M8 X 35 |
| 16 |
415129408 |
Chain Tensioner This part replaces 420236252. |
| 17 |
420430624 |
Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 18 |
420236259 |
Chain Tensioner With Screw This part replaces 420640453. |
| 19 |
420847970 |
SPACER - Call your local BRP dealership |
| 20 |
420660090 |
Rubber Bracket |
| 21 |
420827968 |
Flat Washer M6 |
| 22 |
420641258 |
Torx Flange Screw M6 X 35 |
| 23 |
420856538 |
Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530. |
| 24 |
270000484 |
Noise Sensor |
| 25 |
420641188 |
Torx Flange Screw M8 X 35 |
| 26 |
420888850 |
Oil Radiator |
| 27 |
420250057 |
O-Ring This part replaces 420250055. |
| 28 |
420641048 |
Torx Flange Screw M6 X 16 |
| 29 |
420922791 |
FORMED HOSE - Call your local BRP dealership |
| 30 |
509000442 |
Oeticker Gear Clamp, 25.6-706R This part replaces 420851663. |
| 31 |
420851673 |
Gear Clamp |
| 32 |
420853260 |
SPRING BRACKET - Call your local BRP dealership |
| 33 |
420440243 |
Torx Flange Screw M10X25 |
| 34 |
420890020 |
Electric Starter Ass'y |
| 35 |
420631310 |
O-Ring |
| 36 |
420664710 |
CARBON BRUSH SET - Call your local BRP dealership |
| 37 |
420834522 |
Starter Gear, 9 Teeth |
| 38 |
420845601 |
Retaining Ring This part replaces 420845600. |
| 39 |
420440207 |
Torx Flange Screw M6 X 20 This part replaces 420440202. |
| 40 |
420232482 |
Needle Bushing This part replaces 420232480. |
| 41 |
420889951 |
Bendix Starter |
| 42 |
420238300 |
Spring Washer |
| 43 |
420227450 |
THRUST WASHER - Call your local BRP dealership |
| 44 |
420956943 |
OIL LEVEL TUBE - Call your local BRP dealership |
| 45 |
420950810 |
O-Ring |
| 46 |
420956933 |
Oil Level Gauge This part replaces 420956932. |
| 47 |
420889772 |
Engine Gasket Set |
| 48 |
293800060 |
Loctite 243, 10 ml |
| 49 |
293550030 |
Grease, Super Lube |
| 50 |
293600054 |
Synth Oil 4T 12x1 |
| 51 |
293800081 |
Loctite 5910, 300 ml |
| 52 |
293550021 |
Isoflex Grease, TOPAS NB52, 50 g |
