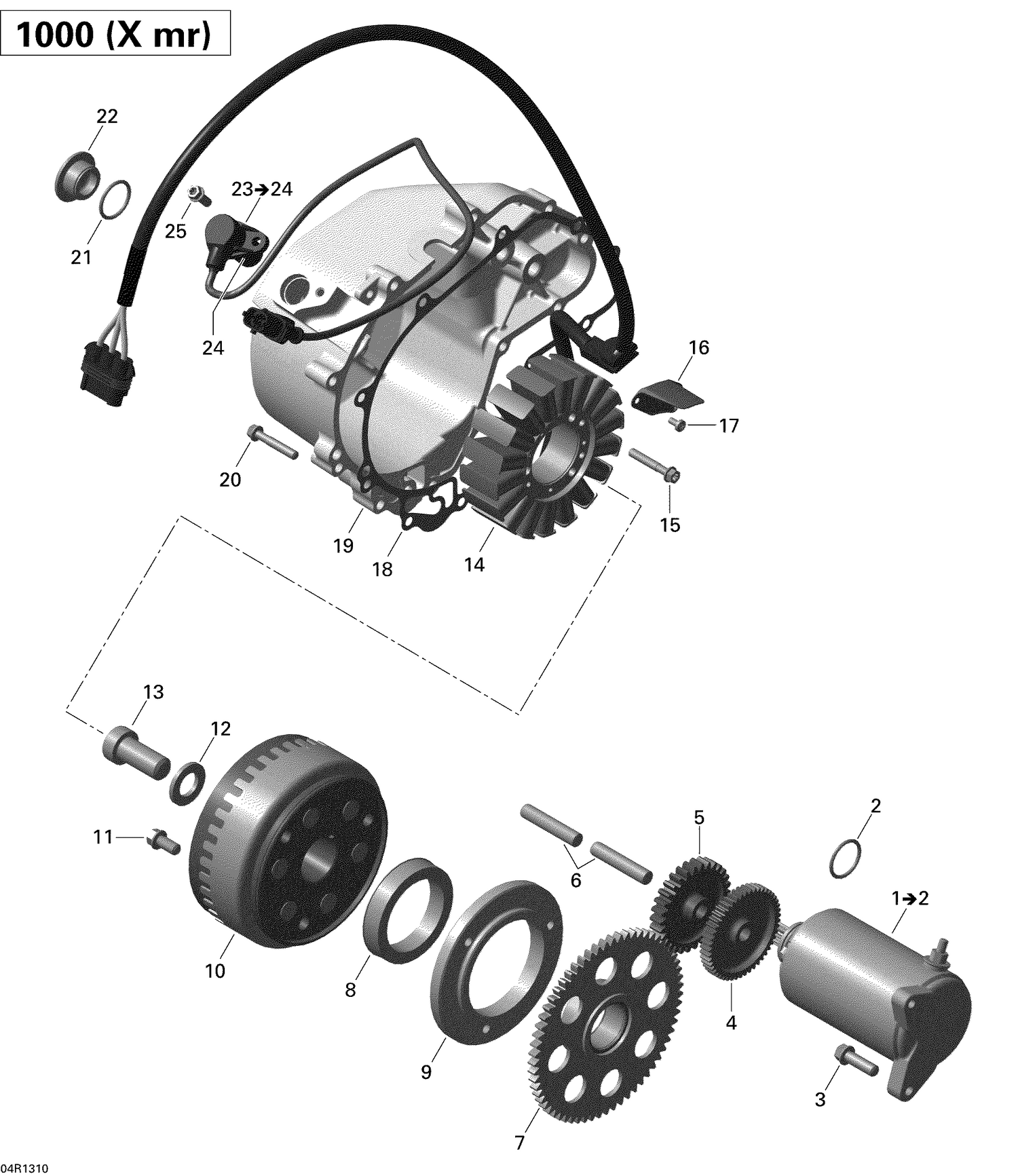

03- Magneto And Electric Starter
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420250140 | O-Ring |
| 3 | 420440372 | Torx Flange Screw M8 X 25 |
| 4 | 420634741 | Starter Double Gear 11/49 T |
| 5 | 420634605 | Starter Intermediate Gear, 30 Teeth |
| 6 | 420229302 | Location Pin 10 M6x50 |
| 7 | 420434235 | Free Wheel Gear, 64 Teeth |
| 8 | 420659111 | Sprag Clutch This part replaces 420659112. |
| 9 | 420659263 | Sparg Clutch Housing This part replaces 420659261. |
| 10 | 420685647 | Flywheel, 650W |
| 11 | 420440852 | Torx Flange Screw M8 X 16 |
| 12 | 420627270 | Shim |
| 13 | 420241549 | Socket Head Screw M16 X 35 |
| 14 | 420685632 | Stator Plate, 650W |
| 15 | 420641258 | Torx Flange Screw M6 X 35 |
| 16 | 420251889 | Interior Cable Support Ass'y This part replaces 420251880. |
| 17 | 420240196 | Phillips Screw M4 X 8 This part replaces 420240195. |
| 18 | 420651203 | Gasket This part replaces 420651200. |
| 19 | 420212225 | Ignition Cover This part replaces 420611132. |
| 20 | 420641258 | Torx Flange Screw M6 X 35 |
| 21 | 420430782 | O-Ring |
| 22 | 420241633 | Plug Screw M24X 1.5 This part replaces 420241630. |
| 24 | 420431580 | O-Ring |
