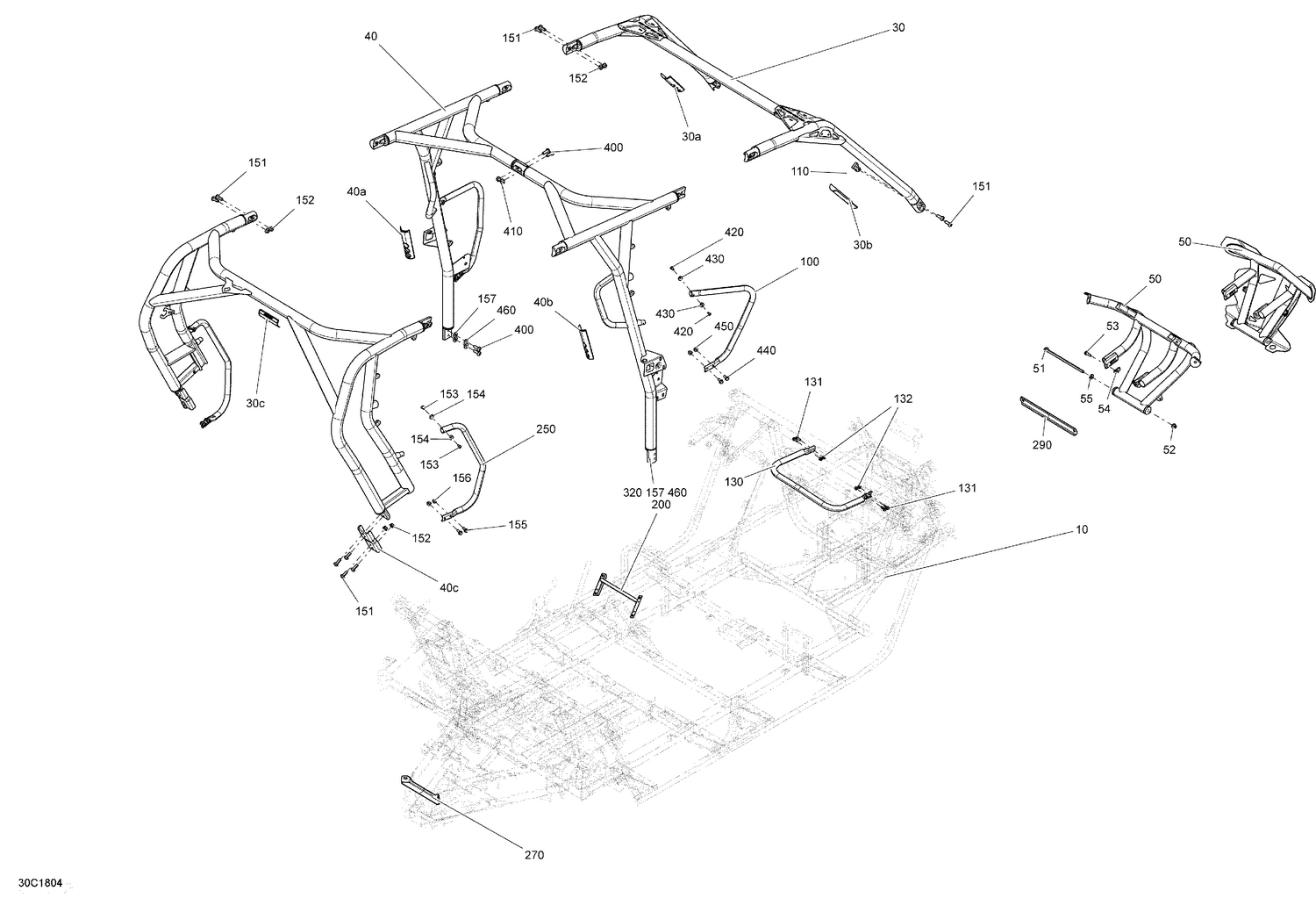

09- Frame Maverick MAX
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715003946 | Frame Kit |
| 30a | 704903492 | Warning Label |
| 30b | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 30c | 704903492 | Warning Label |
| 40a | 704903680 | Warning Label |
| 40b | 233181414 | Hex. Flange Nut M8 |
| 40c | 705203514 | Rear Hand Mounting |
| 50 | 715001645 | FRONT BUMPER BLACK - Call your local BRP dealership This part replaces 705203685. |
| 51 | 250000597 | Hex. Flange Screw |
| 52 | 233201436 | Hex. Flange Elastic Nut M10 |
| 53 | 207382544 | SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 54 | 250100118 | Panel Nut M8 X 1.25 |
| 55 | 234201474 | Conical Spring Washer 10 mm |
| 110 | 705203415 | Binding Block |
| 130 | 705203332 | Black Handle |
| 131 | 207662046 | Hex. Flange Screw M6 X 20 |
| 132 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 151 | 250000848 | Screw Pan M10 X 30 |
| 152 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 153 | 250000789 | Torx Truss M6X14 |
| 154 | 705202223 | Offset Washer |
| 155 | 207682044 | Hex. Flange Screw M8 X 20 |
| 156 | 233281414 | Hex. Flange Elastic Nut M8 |
| 157 | 250200154 | Washer |
| 200 | 705203717 | Reinforcement Panel |
| 270 | 705203695 | REINFORCEMENT - Call your local BRP dealership |
| 290 | 705203454 | FRONT SUSPENSION LINK - Call your local BRP dealership |
| 400 | 250000848 | Screw Pan M10 X 30 |
| 410 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 420 | 250000789 | Torx Truss M6X14 |
| 430 | 705202223 | Offset Washer |
| 440 | 207682044 | Hex. Flange Screw M8 X 20 |
| 450 | 233281414 | Hex. Flange Elastic Nut M8 |
