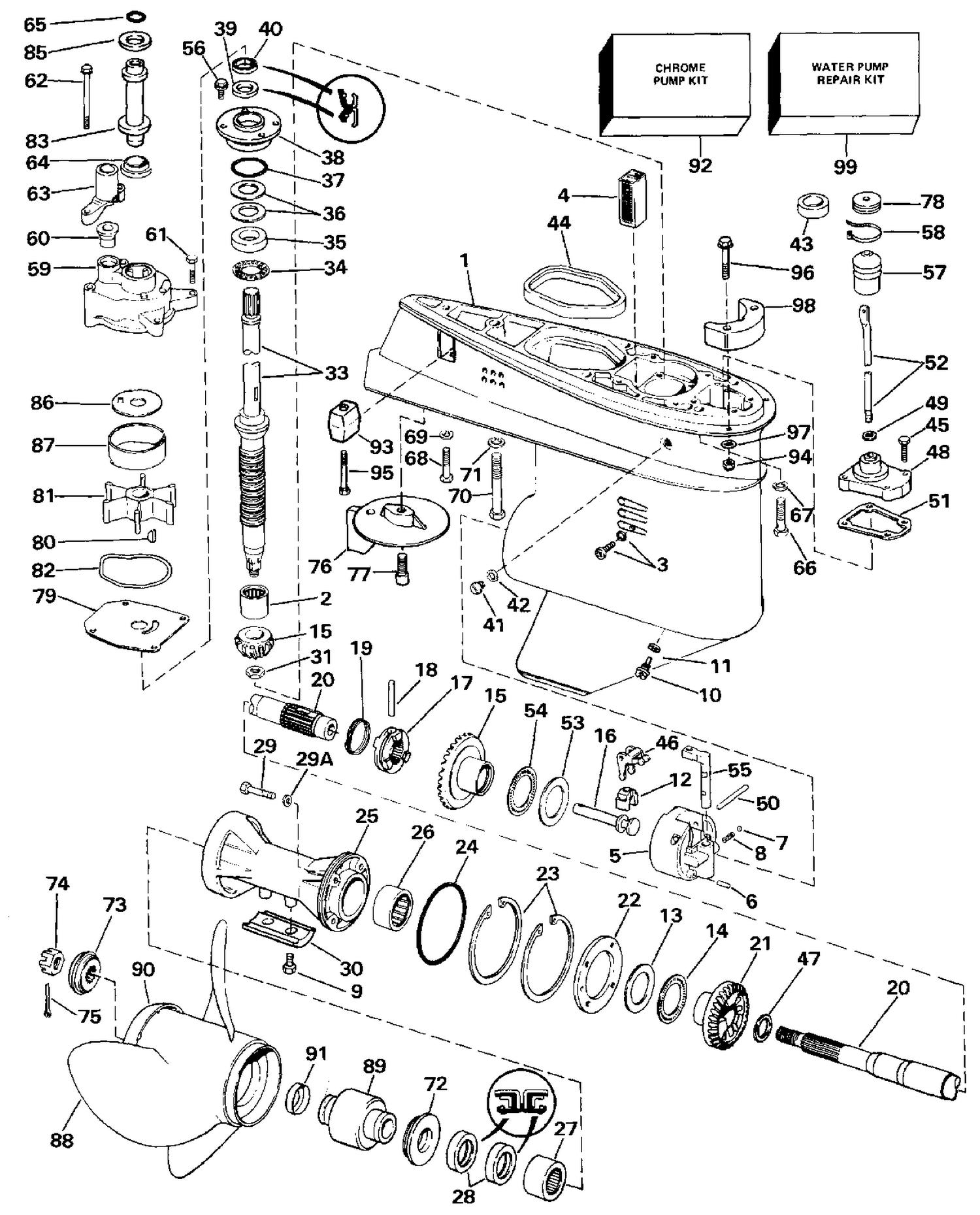

| Ref | Part Number | Description |
|---|
| 1 |
5009348 |
Grcse&Brg Prime This part replaces 0393954. |
| 9 |
0332320 |
SCREW, Anode |
| 30 |
0397133 |
ANODE, Bearing housing |
| 33 |
0396813 |
DRIVESHAFT ASSY., Std |
| 33 |
0396814 |
DRIVESHAFT ASSY. |
| 37 |
0313754 |
O RING |
| 38 |
0435519 |
BEARING HOUSING ASSY. This part replaces 0395006. |
| 39 |
0321459 |
OIL RETAINER, Housing |
| 40 |
0330327 |
RETAINER, Oil driveshaft, outer |
| 48 |
0385756 |
COVER ASSEMBLY |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 |
0384087 |
IMPELELR HSG., Gearcase |
| 60 |
0315837 |
GROMMET, Water tube |
| 62 |
0331980 |
SCREW, Bracket, port |
| 63 |
0315838 |
BRACKET, Water tube |
| 66 |
0305282 |
BOLT, Bowl & suction piece |
| 67 |
0307708 |
RONDELLE GROWER This part replaces 0302865. |
| 68 |
0306503 |
SCREW, Short |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0127466 |
TRIM TAB This part replaces 0328821. |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0321452 |
GROMMET |
| 79 |
0316693 |
PLATE, Impeller housing |
| 79 |
0320981 |
PLATE, Impeller housing |
| 81 |
0396809 |
IMPELLER ASSY |
| 82 |
0315788 |
SEAL, Impeller housing |
| 85 |
0329171 |
SEAL, Extension to exh housing |
| 86 |
0315746 |
PLATE LINER |
| 86 |
0320776 |
PLATE, Impeller housing |
| 87 |
0315747 |
LINER, Impeller housing |
| 87 |
0320775 |
LINER, Impeller housing |
| 88 |
0382761 |
PROPELLER ,14 x 11 |
| 88 |
0383160 |
PROPELLER 14 X 19 |
| 88 |
0389510 |
PROPELLER, 13 * 19 SST |
| 88 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 88 |
0389514 |
PROPELLER 12-3/4 x 23 - SST |
| 88 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 88 |
0389792 |
PROPELLER 14 x 11 -SST |
| 88 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 88 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 88 |
0390896 |
PROPELLER, 13 * 19 AL. |
| 88 |
0392261 |
PROPELLER 13 3/4 X 13 - SST |
| 88 |
0765181 |
PROPELLER This part replaces 0391668. |
| 88 |
0765182 |
PROPELLER - W Models This part replaces 0391198. |
| 88 |
0765183 |
PROPELLER, WDEL Models This part replaces 0391199. |
| 92 |
0389135 |
CHROME PUMP KIT |
| 99 |
0396932 |
WATER PUMP REPAIR KIT |
| 0392461 |
0392461 |
ANODE KIT |
| 0396944 |
0396944 |
GEARCASE ASSY., Std |
| 0396945 |
0396945 |
GEARCASE ASSY., Long |
