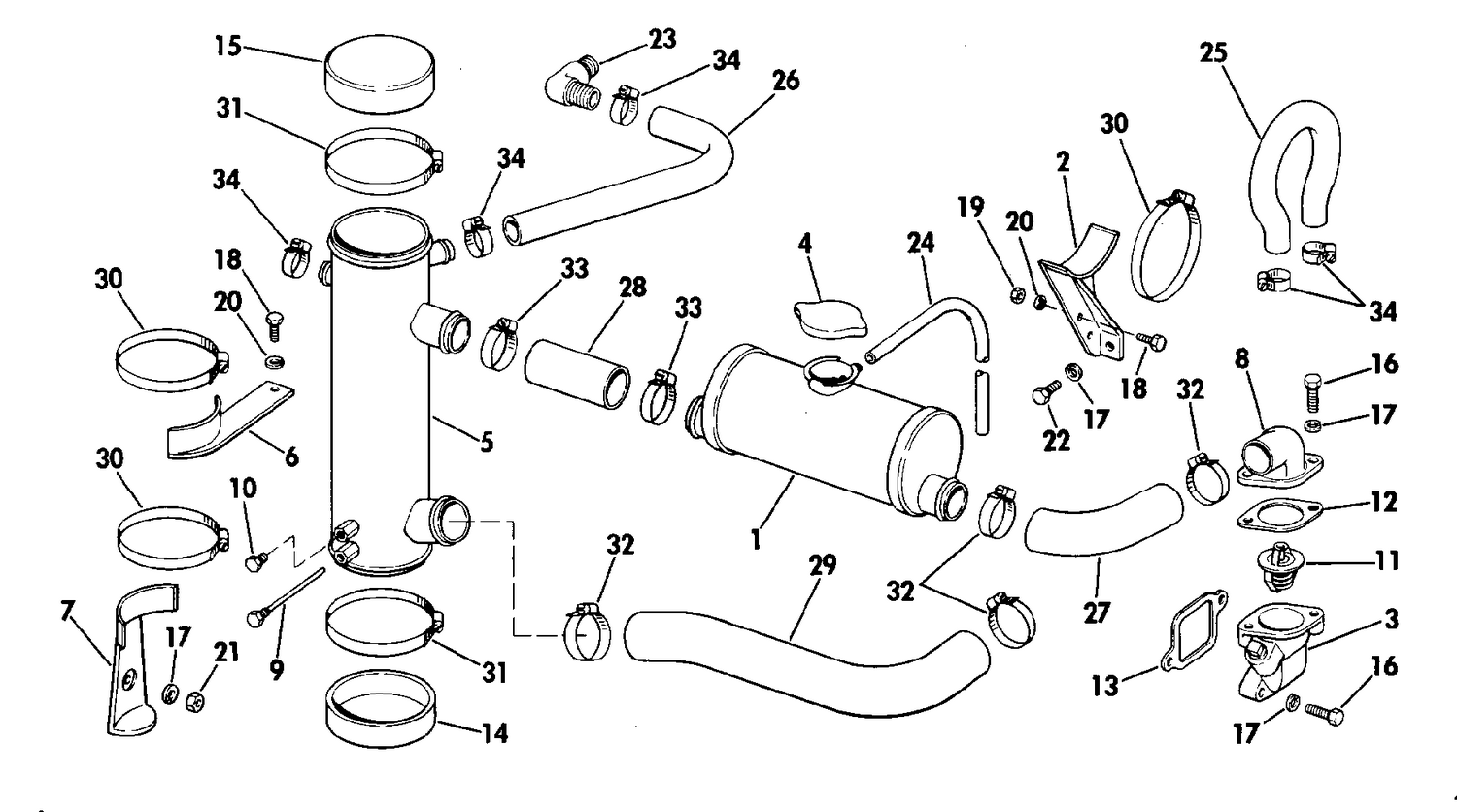

| Ref | Part Number | Description |
|---|
| 1 |
SJE021-2 |
EXPANSION TANK |
| 2 |
SJE021-3 |
MOUNT, Expansion tank |
| 3 |
SJE021-4 |
OUTLET, Water |
| 4 |
SJE021-5 |
FILL CAP, Expansion tank (12 p.s.i.) |
| 5 |
SJE024-7 |
HEAT EXCHANGER |
| 6 |
SJE024-8A |
MOUNT, Heat exchanger, upper |
| 7 |
SJE024-8 |
MOUNT, Heat exchanger, lower |
| 8 |
SJE021-9 |
HOUSING THERMOSTAT |
| 9 |
SJE021-10 |
ZINC PENCIL (1/4" N P T) WATER DRAIN |
| 10 |
SJE021-11 |
DRAIN PLUG (1/4" N P T) COOLANT DRAIN |
| 11 |
SJE021-12 |
THERMOSTAT (DV1-160 degrees) |
| 12 |
SJE021-13 |
GASKET, Thermostat housing |
| 13 |
SJE021-14 |
GASKET, Water outlet |
| 14 |
SJE021-40 |
CAP, Heat exchanger end, 4" dia (lower) |
| 15 |
SJE021-40A |
CAP, Heat exchanger end, 4" dia upper, slott ed |
| 16 |
SJE021-41 |
BOLT, 3/8-16 x 7/8" |
| 17 |
SJE021-42 |
LOCKWASHER, 3/8" dia |
| 18 |
SJE021-43 |
BOLT, 1/4-20 x 3/4" |
| 19 |
SJE021-44 |
NUT, 1/4" 20 thread |
| 20 |
SJE021-45 |
LOCKWASHER, 1/4" dia |
| 21 |
SJE024-46 |
NUT, 3/8" x 16 thread |
| 22 |
SJE021-51 |
BOLT, 3/8-16 x 1-1/4" |
| 23 |
SJE024-54 |
ELBOW, 90 - 1/2" n p t x 3/4" hose spud, exh |
| 24 |
SJE021-26 |
HOSE, Overflow |
| 25 |
SJE022-25 |
HOSE, "u" shaped, exhaust manifold end cap ( 5/8"I.D.) |
| 26 |
SJE024-52 |
HOSE, Straight, 7/8" x 23" |
| 27 |
SJE021-20 |
HOSE, Curved (1-1/2" - 90) thermostat housin g to expansion tank |
| 28 |
SJE021-19 |
HOSE, Straight (1-1/2" x 2-1/4" tank to heat exchanger |
| 29 |
SJE021-18 |
HOSE, Curved (1-3/4" dia) heat exchanger to engine pump inlet |
| 30 |
SJE021-6 |
CLAMP, Mounting, expansion tank & heat excha nger, #64 |
| 31 |
SJE021-31 |
CLAMP, Heat exchanger end caps #68 |
| 32 |
SJE021-29 |
CLAMP, Hose #24 |
| 33 |
SJE021-28 |
CLAMP, Hose #16 |
| 0172769 |
0172769 |
HEAT EXCHANGER KIT |
