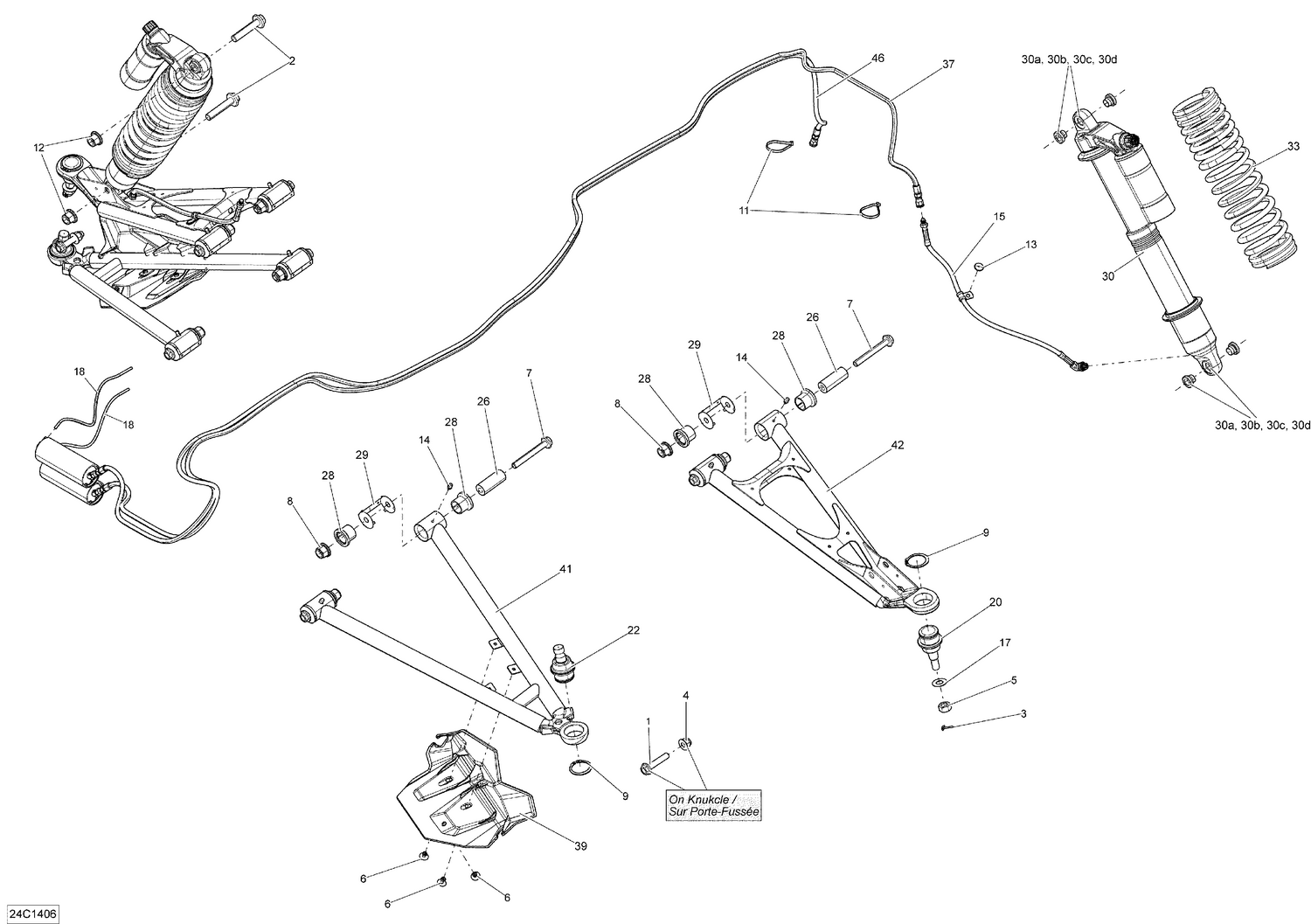

07- Front Suspension _24C1406
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207605044 | Hex. Flange Screw M10 X 50 |
| 2 | 207626046 | Hex. Flange Screw M12 X 60 |
| 3 | 211400017 | Cotter Pin |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 250100099 | Nut M12 |
| 6 | 293150104 | Pop Rivet 3/16" |
| 7 | 207608046 | Hex Flange Screw M10 X 80 |
| 8 | 233201436 | Hex. Flange Elastic Nut M10 |
| 9 | 293370035 | Circlip |
| 11 | 293750002 | Tie Wrap 142 mm |
| 12 | 233221416 | Elastic Flange Nut M12 |
| 13 | 390406500 | Pop Rivet 3/16" |
| 14 | 408200700 | Grease Fitting |
| 15 | 706002299 | Rear Hose Ass'y This part replaces 706001118. |
| 17 | 706200281 | Hardened Washer This part replaces 250200086. |
| 18 | 706001874 | HOSE 4.0MM - Call your local BRP dealership This part replaces 706001143. |
| 20 | 706202044 | Ball Joint |
| 22 | 706202045 | Ball Joint |
| 26 | 706201590 | Sleeve |
| 28 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 29 | 706201660 | Wear Plate |
| 30a | 715900251 | Spherical Bearing |
| 30b | 715900252 | Retaining Ring |
| 30c | 715900210 | Interior Bushing |
| 30d | 715900209 | O-Ring Bushing |
| 33 | 706201718 | YELLOW FRONT SPRING - Call your local BRP dealership |
| 37 | 706201999 | RH Hose Ass'y This part replaces 706201793. |
| 39 | 706202808 | LH Joint Protector This part replaces 706201829. |
| 39 | 706202809 | RH Joint Protector This part replaces 706201830. |
| 41 | 706201861 | LH Front Lower Arm |
| 41 | 706201862 | RH Front Lower Arm |
| 42 | 706202090 | YELLOW FRONT UPPER ARM - Call your local BRP dealership This part replaces 706201891. |
