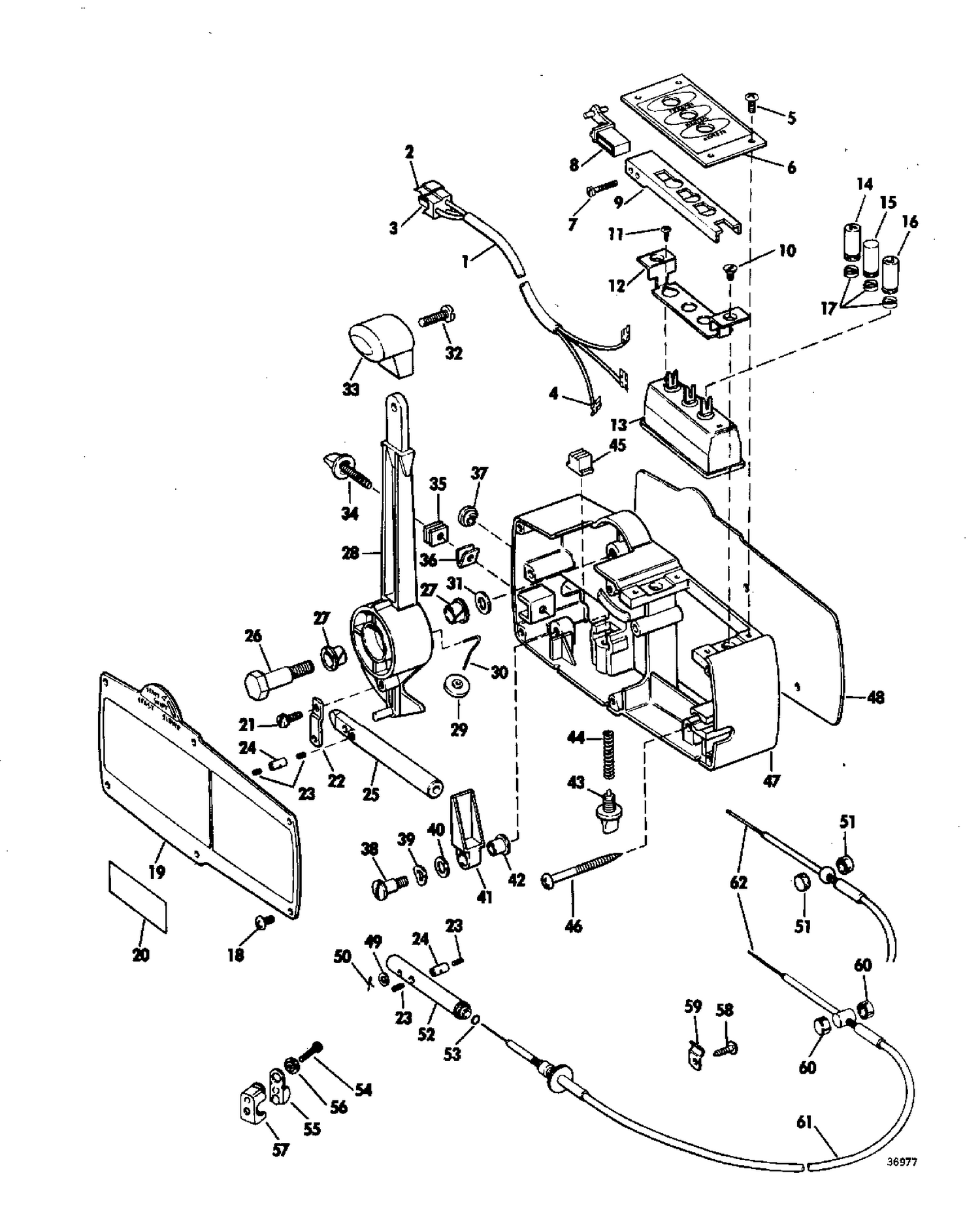

| Ref | Part Number | Description |
|---|
| 1 |
0278517 |
SHIFT CABLE ASSEMBLY |
| 3 |
TERMINAL |
Ref: 4 0309438 TERMINAL 0309438 |
| 5 |
0205038 |
SCREW, Cover plate |
| 6 |
0205047 |
COVER PALTE,Button (evinrude) |
| 6 |
0309004 |
COVER PALTE,Button (omc) |
| 7 |
0308546 |
LINK,Adjustment |
| 8 |
0205037 |
LINK ADJUSTMENT |
| 9 |
0205044 |
YOKE, Push button |
| 10 |
0308544 |
SCREW, Bracket to box |
| 12 |
0205161 |
BRACKET, Selector switch |
| 13 |
0279091 |
SELECTOR SWITCH ASSEMBLY |
| 14 |
0309556 |
BUTTON, Forward |
| 15 |
0309559 |
BUTTON, Neutral |
| 16 |
0309560 |
BUTTON, Reverse |
| 17 |
0309590 |
SPRING, Pushbotton |
| 18 |
0205038 |
SCREW, Cover plate |
| 19 |
0278356 |
SIDE PLATE & TRANSFER (Evinrude) |
| 19 |
0378760 |
SIDE PLATE & TRANSFER ASSEMBLY |
| 20 |
0205052 |
TRANSFER (EVINRUDE) |
| 20 |
0308820 |
SCREW, Impeller housing |
| 20 |
0308821 |
TRANSFER, Port |
| 21 |
0308545 |
SCREW |
| 22 |
0205041 |
RETAINER, Casing guide |
| 23 |
0303317 |
SCREW |
| 24 |
0385958 |
CLAMP & SC R.,Casing guide This part replaces 0303219. |
| 25 |
0205036 |
CASING GUIDE, Control |
| 26 |
0205039 |
PIVOT SCREW, Lever |
| 28 |
0378246 |
LEVER,Throttle |
| 29 |
0308517 |
ROLLER, Lever to box |
| 30 |
0205046 |
SPRING, Roller |
| 32 |
0308038 |
VIS, butée de ralenti |
| 37 |
0308523 |
GROMMET, Shift cable |
| 40 |
0308052 |
RONDELLE, verrouillage de relevage, douille d'arbre |
| 44 |
0205043 |
SPRING, Detent |
| 45 |
0205075 |
DETENT, Throttle |
| 46 |
0205040 |
SCREW, Housing to boat |
| 47 |
0205033 |
HOUSING, Control box |
| 48 |
0205034 |
COVER PLATE, Rear |
| 49 |
0303887 |
WASHEER, Pin to swivel bracket |
| 51 |
0309724 |
ANCHOR BLOCK |
| 53 |
0307063 |
O RING |
| 54 |
0310686 |
SCREW |
| 55 |
0310687 |
DETENT SPRING, Anchor block |
| 56 |
0310688 |
SAPCER, Anchor block |
| 57 |
0310685 |
ABCHOR BLCOK, Trunnion |
| 0278573 |
0278573 |
PUSH-BUTTON CONTOL BOX ASSEMBLY |
