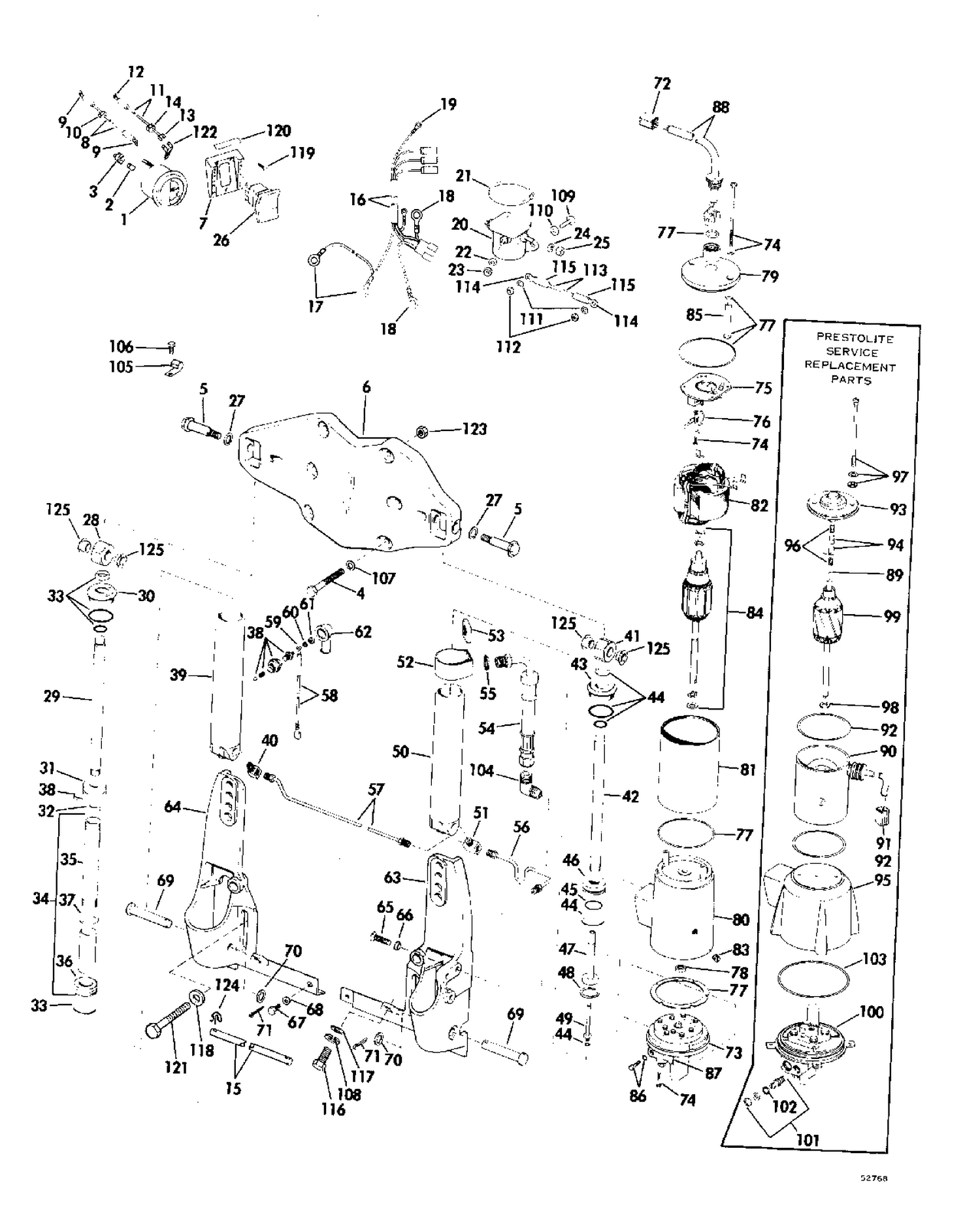

| Ref | Part Number | Description |
|---|
| 1 |
0172658 |
GAUGE ASSY.,Trim indicator |
| 4 |
0552898 |
SCR,Grc to hsg,short |
| 5 |
0122680 |
PIOVT SCREW,Lift bracket |
| 6 |
0122612 |
LIFT BRACKET |
| 15 |
0319809 |
THRUST ROD |
| 16 |
0172763 |
CABLE ASSY |
| 20 |
0979774 |
SOLENOID |
| 21 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 0315633. |
| 27 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 33 |
0174520 |
O-RING KIT This part replaces 0172575. |
| 44 |
0174520 |
O-RING KIT This part replaces 0172575. |
| 56 |
0172671 |
TILT LINE ASSY., Lower |
| 63 |
0122761 |
SUPPORT BRACKET, Stbd |
| 64 |
0122762 |
SUPPORT BRACKET, Port |
| 65 |
0122487 |
SCREW, Motor mounting |
| 66 |
0319039 |
LOCKWASHER, Motor mtg |
| 67 |
0304027 |
VIS, arbre de commande de sens de marche |
| 70 |
0206414 |
LOCKWASHER, Pivot screw |
| 72 |
0122619 |
CONNECTOR |
| 73 |
0172577 |
PUMP ASSY |
| 74 |
0172849 |
BOLT KIT |
| 75 |
0172579 |
BRUSH HOLDER ASSY |
| 76 |
0172580 |
CIRCUIT BREAKER ASSEMBLY |
| 77 |
0172717 |
GASKET & "O" RING KIT |
| 78 |
0122748 |
GASKET, Motor reservoir |
| 79 |
0172845 |
END CAP & BEARING ASSY. |
| 80 |
0172848 |
RESERVOIR |
| 81 |
0122620 |
MOTOR SHELL |
| 82 |
0172576 |
FIELD ASSY |
| 83 |
0172846 |
PLUG KIT |
| 84 |
0172716 |
ARMATURE ASSY |
| 85 |
0122656 |
SPACER |
| 86 |
0172767 |
RELEASE VALVE PKG |
| 87 |
0172768 |
CHECK VALVE & "O" RING ASSEMBLY |
| 88 |
0172718 |
CABLE ASSY |
| 91 |
0122619 |
CONNECTOR This part replaces 0122789. |
| 107 |
0307708 |
RONDELLE GROWER |
| 108 |
0307708 |
RONDELLE GROWER |
| 109 |
0904871 |
SCREW, Solenoid mtg |
| 113 |
0172765 |
LEAD ASSY. |
| 114 |
0203523 |
RING TERMINAL |
| 116 |
0305282 |
BOLT, Bowl & suction piece |
| 118 |
0319751 |
WASHER, Stern brkt, screw, lower |
| 120 |
0122501 |
DECAL, Switch pl., johnson |
| 121 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 0172762 |
0172762 |
SOLENOID & CABLE ASSY. |
| 0172834 |
0172835 |
HYDRAULIC LIFT ASSY This part replaces 0172834. |
