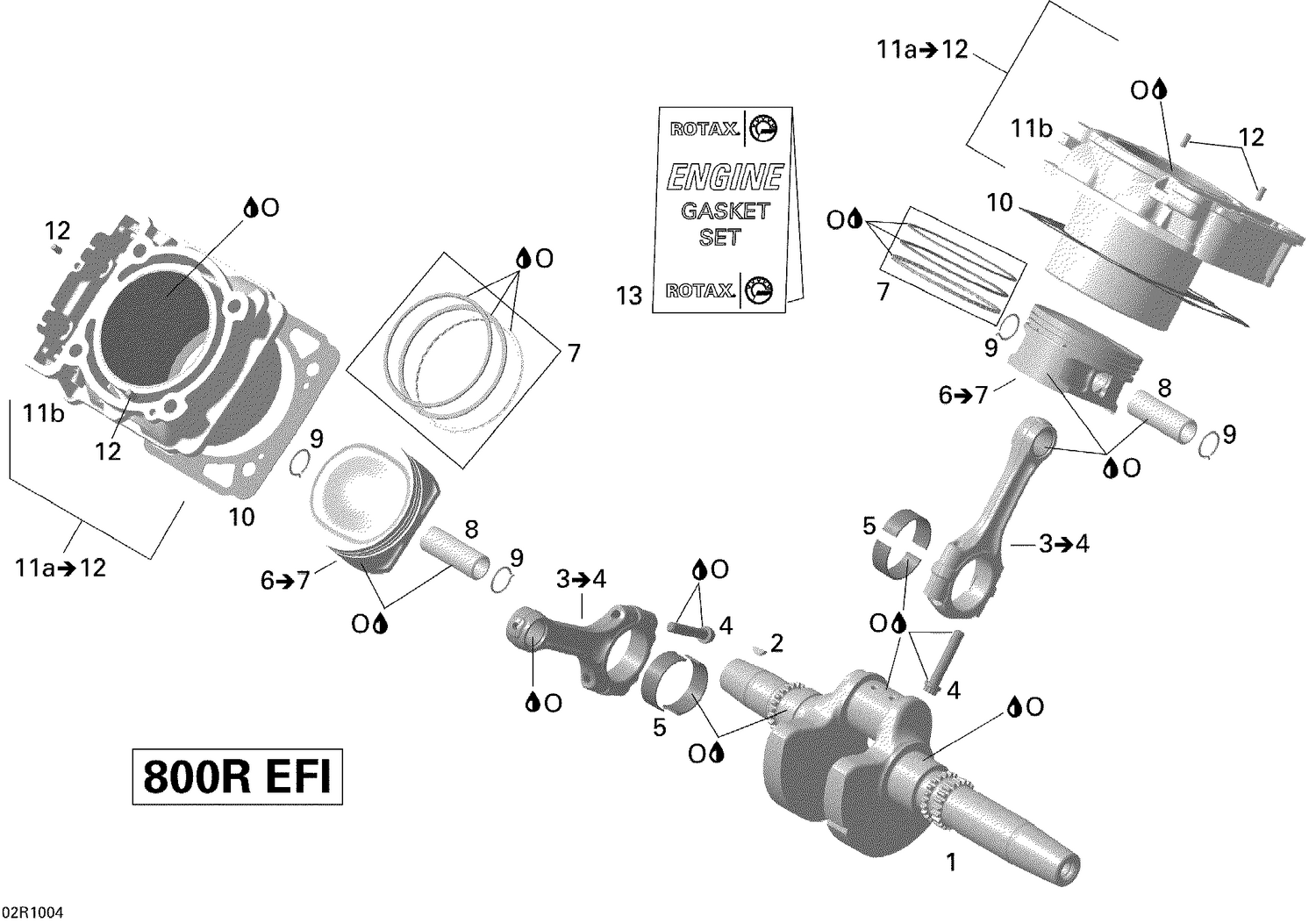

| Ref | Part Number | Description |
|---|
| 1 |
420219746 |
Crankshaft Ass'y This part replaces 420219745. |
| 2 |
420246570 |
Woodruff Key 4 X 5 |
| 4 |
420641645 |
Connecting Rod Screw M8 X 1 This part replaces 420641640. |
| 5 |
420233980 |
Plain Bearing 40 X 43 X 15 |
| 7 |
420296774 |
Piston Ring Set |
| 7 |
Not |
Available As Spare Part - Piston Ring Set, Oversize |
| 8 |
420216270 |
Piston Pin |
| 9 |
420845106 |
Piston Circlip |
| 10 |
420630211 |
Gasket Aramid This part replaces 420630210. |
| 11b |
Not |
Available As Spare Part - Cylinder With Sleeve |
| 12 |
420929650 |
Drive Pin 5 X 10 |
| 13 |
420684160 |
Gasket Set, Engine This part replaces 420684138. |
