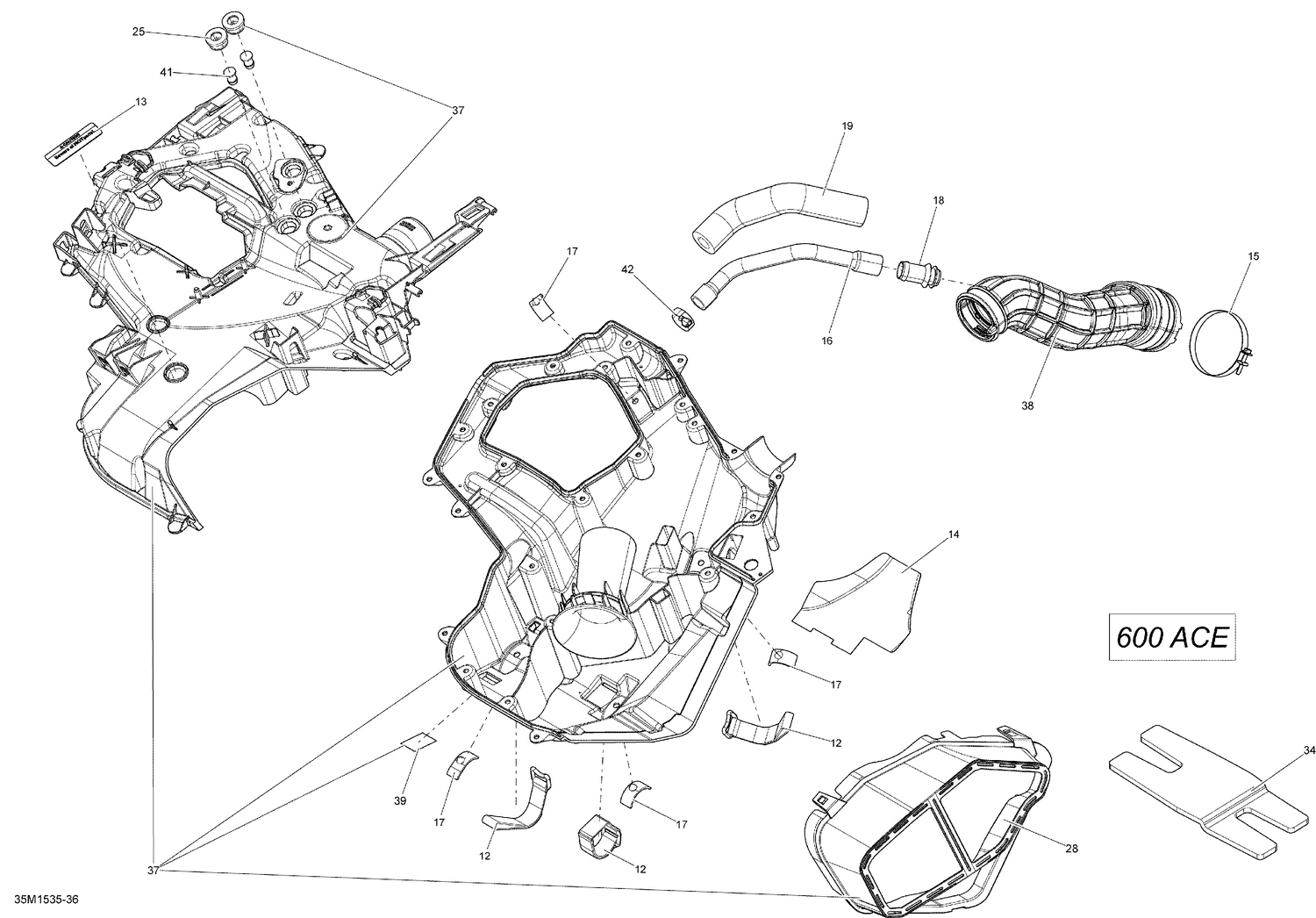

02- Air Intake System _35M1535
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 508000820 | Velcro Strip This part replaces 508000532. |
| 13 | 516005280 | Caution Decal Hot Parts |
| 14 | 508000622 | Reflective Sheet |
| 15 | 293650212 | GEMI Clamp |
| 16 | 508000774 | Formed Vent Hose |
| 17 | 508000537 | Stopper |
| 18 | 273000234 | Breather Valve |
| 19 | 508000648 | Tube Isolator |
| 25 | 508000574 | Grommet |
| 28 | 508000595 | Air Intake Filter |
| 34 | 508000674 | Insulated Foam |
| 37 | 508000715 | Secondary Chamber Ass'y |
| 38 | 508000773 | Air Intake Hose |
| 39 | 509000688 | Reflective Sheet |
| 41 | 572092900 | Cap |
