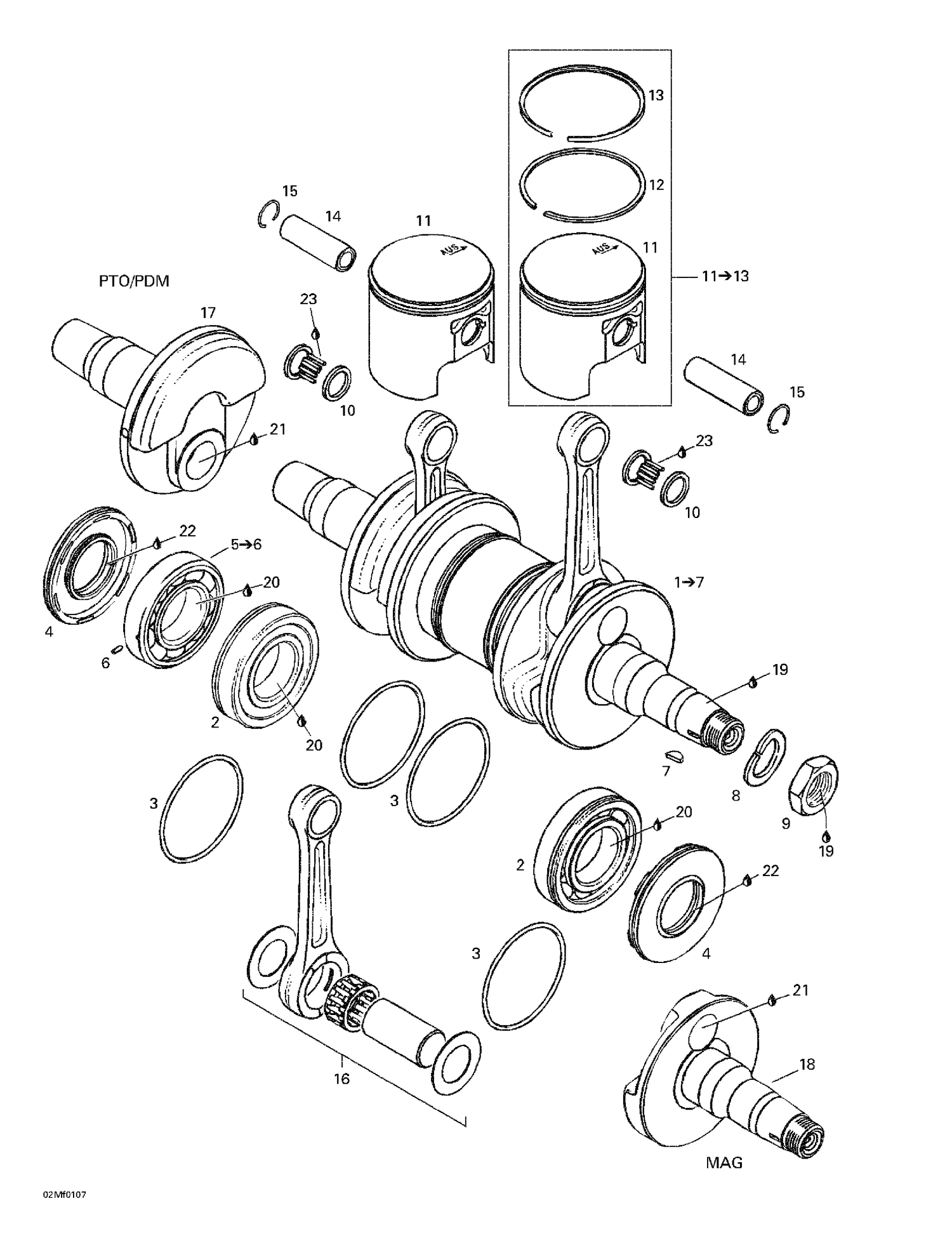

| Ref | Part Number | Description |
|---|
| 1 |
421000155 |
REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership |
| 2 |
420832584 |
Bearing_Ball This part replaces 420832570. |
| 3 |
Not |
Available As Spare Part - O-Ring 64 mm |
| 4 |
420831952 |
Oil Seal This part replaces 290831952. |
| 6 |
420929972 |
Dowel Pin |
| 7 |
420246055 |
Woodruff Key |
| 8 |
420945759 |
Lock Washer, 22 mm |
| 9 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 10 |
420832320 |
Needle Bearing |
| 12 |
420915850 |
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership |
| 13 |
420815200 |
SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership |
| 14 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 15 |
420945735 |
Piston Circlip |
| 16 |
420994564 |
Crankshaft Repair Kit |
| 17 |
420818244 |
CRANKSHAFT HALF PTO - Call your local BRP dealership |
| 18 |
420819020 |
CRANKSHAFT HALF MAG - Call your local BRP dealership |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 21 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 22 |
413707000 |
Dow Corning 111, 150 g |
| 420815201 |
SEMI-TRAPEZ |
RING 72.25 MM, 1ST - Call your local BRP dealership 420815201 |
| 420815201 |
Segment |
Semi-trapézoïdal 72.25 mm, 1er - Appelez votre concessionnaire BRP local 420815201 |
| 420815202 |
SEMI-TRAPEZ |
RING 72.5 MM, 2ND - Call your local BRP dealership 420815202 |
| 420815202 |
Segment |
Semi-trapézoïdal 72.5 mm, 2e - Appelez votre concessionnaire BRP local 420815202 |
| 420915851 |
RECTANGULAR |
RING 72.25 MM, 1ST - Call your local BRP dealership 420915851 |
| 420915851 |
Segment |
Rectangulaire 72.25 mm, 1er - Appelez votre concessionnaire BRP local 420915851 |
| 420915852 |
RECTANGULAR |
RING 72.5 MM, 2ND - Call your local BRP dealership 420915852 |
| 420915852 |
Segment |
Rectangulaire 72.5 mm, 2e - Appelez votre concessionnaire BRP local 420915852 |
