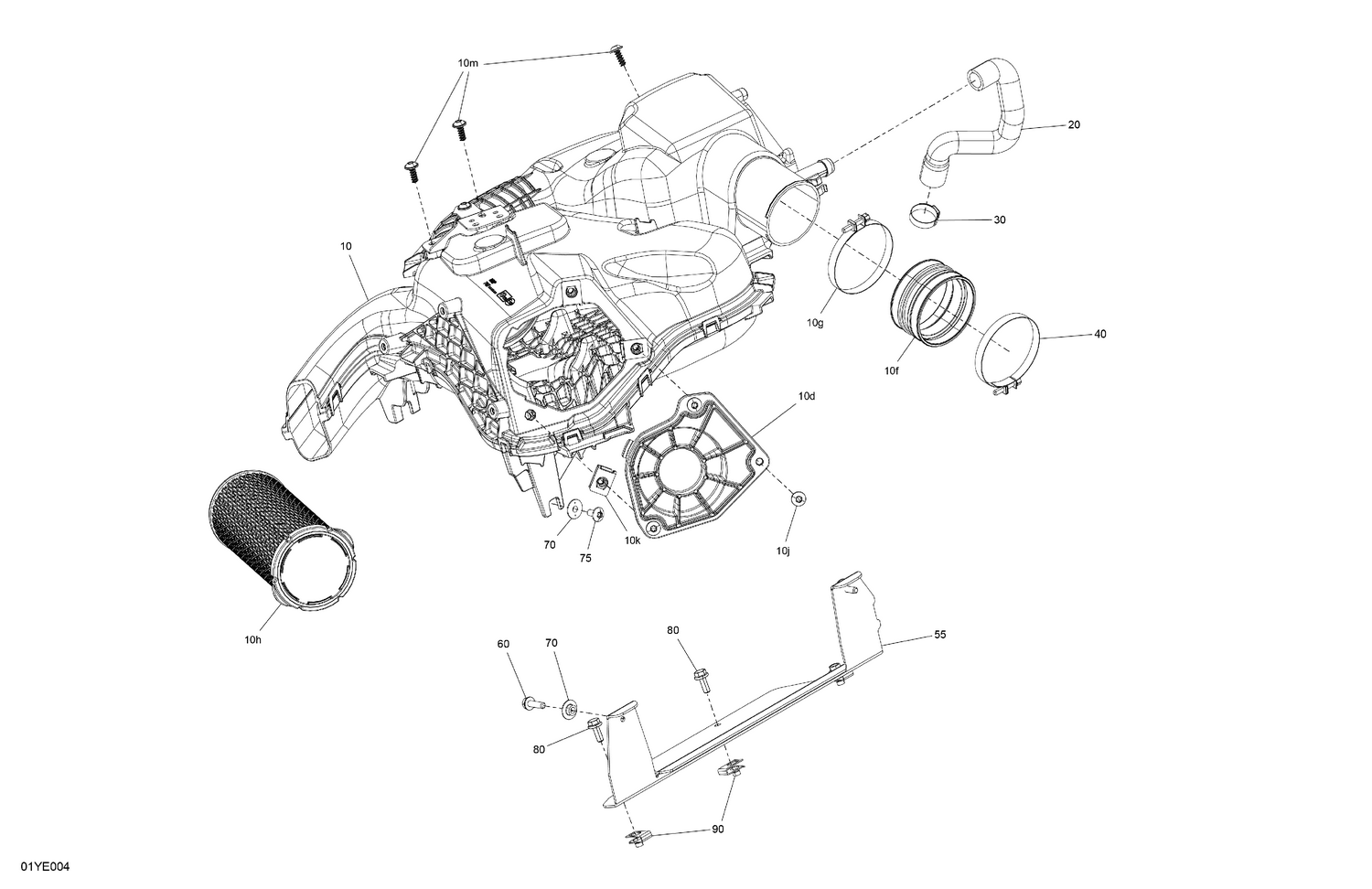

02- Engine - Air Intake
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10d | 707801179 | Access Cover |
| 10f | 707801168 | Adapter |
| 10g | 508000346 | Gemi Clamp |
| 10h | 707800483 | Air Filter |
| 10j | 250000721 | Torx Truss Screw M6 X 16 |
| 10k | 250100208 | Panel Nut M6 X 1.0 |
| 10m | 250000546 | Oval Head Torx Screw K60 X 16 |
| 20 | 707801162 | Formed Hose |
| 30 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 40 | 508000346 | Gemi Clamp |
| 55 | 707801136 | Air Intake Silencer Support |
| 60 | 250000768 | Hex. Flange Screw M6 X 20 |
| 70 | 709001287 | Bushing |
| 75 | 250000767 | Torx Truss Screw M6 X 12 |
| 80 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
