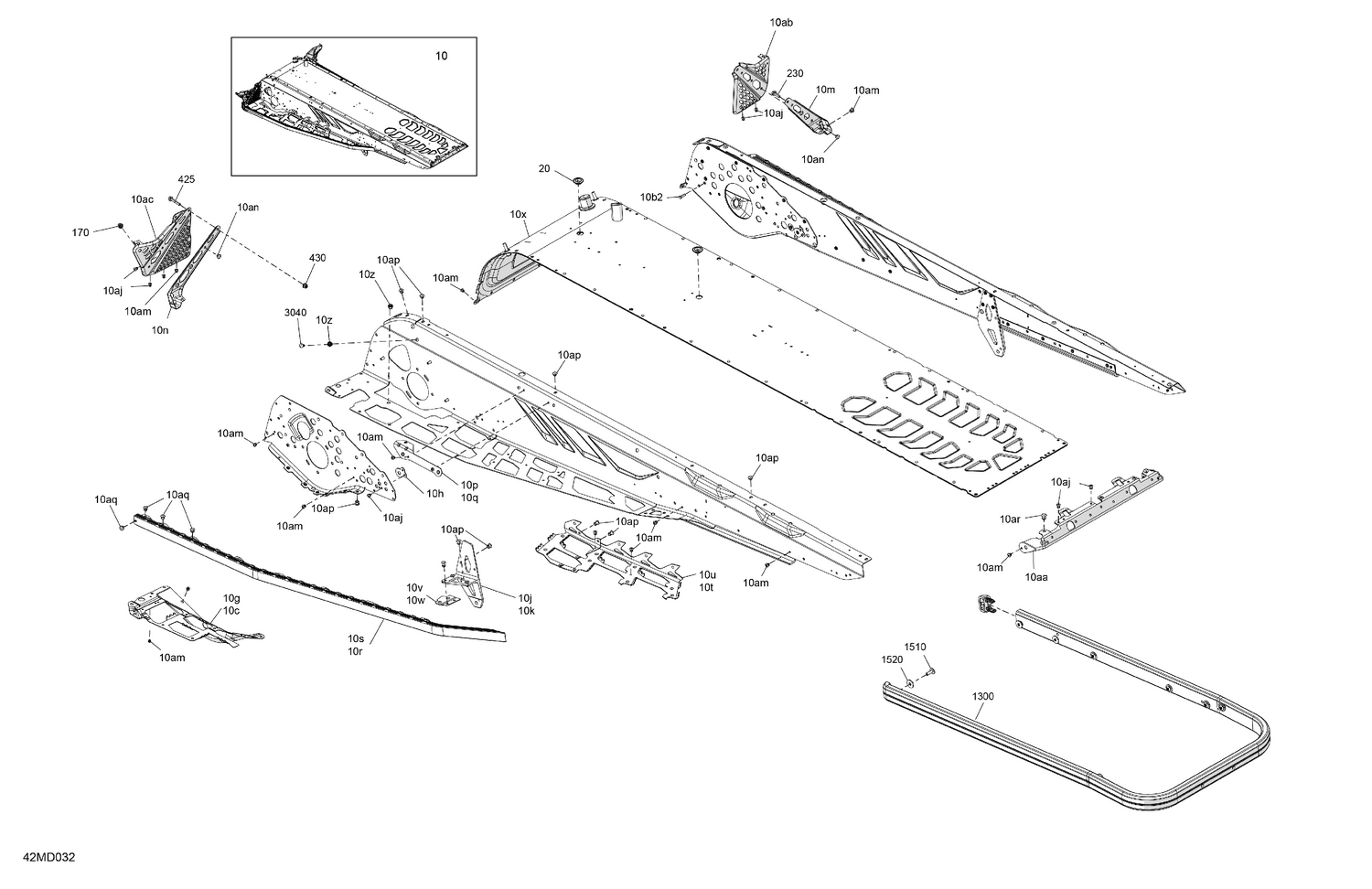

06- Frame - System - Rear Section
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 518328990 | Rear Cap |
| 10ab | 518333006 | RH Footrest |
| 10ac | 518333858 | LH Footrest |
| 10aj | 390909100 | Avex Rivet |
| 10am | 390909200 | Avex Rivet |
| 10an | 293150264 | Rivet Ornit 6,5 X 10.5 |
| 10ap | 293150265 | Rivet Ornit 6,5 X 12.5 |
| 10aq | 293150266 | Ornit Rivet 6,5 X 14.5 |
| 10ar | 293150267 | Rivet Ornit 6,5 X 16.5 |
| 10b2 | 250300027 | Clinch Stud M6 X 20 |
| 10c | 518332578 | RH Footrest Reinforcement |
| 10g | 518332577 | LH Footrest Reinforcement |
| 10h | 518326647 | Reinforcement Plate |
| 10j | 518334390 | LH Rear Suspension Support |
| 10k | 518334391 | RH Rear Suspension Support |
| 10m | 518334507 | Stirrup Reinforcement |
| 10n | 518332924 | Deep Black, LH Chassis Reinforcement |
| 10p | 518331744 | LH Under Chassis Reinforcement |
| 10q | 518331745 | RH Under Chassis Reinforcement |
| 10r | 518328451 | RH Roller |
| 10s | 518328452 | LH Roller |
| 10t | 518334842 | Central Rear Tunnel Reinforcement |
| 10u | 518334843 | LH Central Reinforcement Tunnel |
| 10v | 518329088 | LH Reinforcement Plate |
| 10w | 518329089 | RH Reinforcement Plate |
| 10z | 605636003 | Clinch Nut M6 Hexsert |
| 20 | 293730052 | Black, Plug |
| 170 | 293450267 | Insert M5 - 0.8 |
| 230 | 207562056 | Hex. Flange Screw M6 X 20 |
| 425 | 207562056 | Hex. Flange Screw M6 X 20 |
| 430 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1300 | 518329553 | Rear Bumper 146 |
| 1510 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 | 224061201 | Flat Washer |
