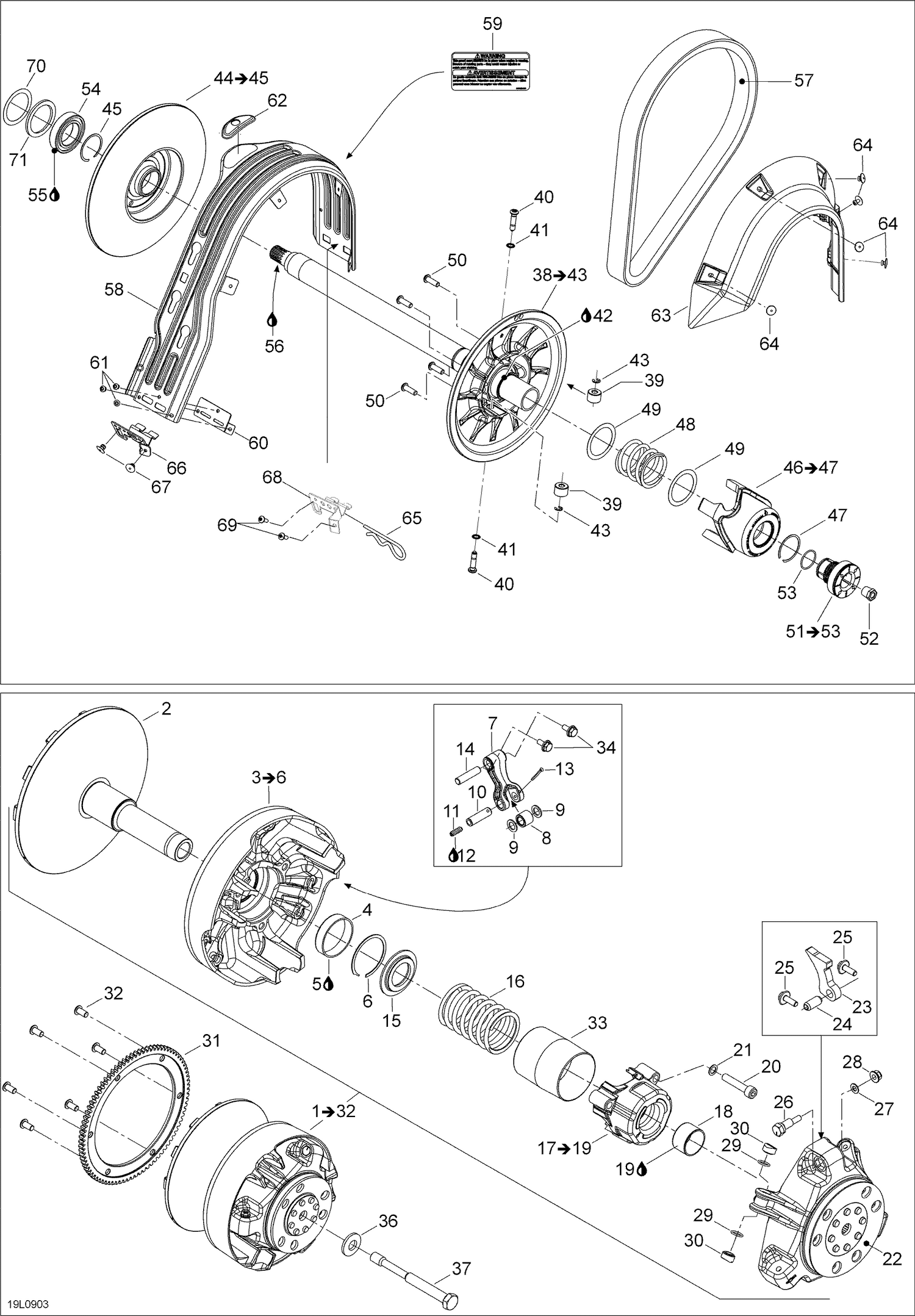

| Ref | Part Number | Description |
|---|
| 2 |
417222777 |
FIXE FLANGE - Call your local BRP dealership |
| 4 |
417222758 |
Bushing Outer Half |
| 5 |
413703100 |
Loctite 609, 10 ml |
| 6 |
293370037 |
Circlip |
| 7 |
417222671 |
Lever Ass'y |
| 8 |
417222947 |
Roller |
| 9 |
417004302 |
Stopper Washer |
| 10 |
417222594 |
Threaded Pin, M6 |
| 11 |
250000408 |
Socket Set Screw, M6x25 mm. This part replaces 206262599. |
| 12 |
293800060 |
Loctite 243, 10 ml |
| 13 |
250400060 |
Cotter Pin This part replaces 732958001. |
| 14 |
417223164 |
Lever Axle This part replaces 417009202. |
| 15 |
417222312 |
Spring Seat |
| 16 |
414993000 |
Spring, Yellow/Red |
| 18 |
417009204 |
Bushing |
| 19 |
413703100 |
Loctite 609, 10 ml |
| 20 |
205084044 |
Socket Head Screw M8 X 40 |
| 21 |
250200009 |
Lock Washer 8 mm |
| 22 |
417222213 |
Governor Cup Ass'y |
| 23 |
417222444 |
Ramp 600 |
| 24 |
250400050 |
Spring Pin M10 X 22 This part replaces 250400009. |
| 25 |
250000418 |
Flanged Hex. Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 26 |
417222955 |
CALIBRATION SCREW - Call your local BRP dealership |
| 27 |
417005600 |
Washer |
| 28 |
233061414 |
Hex. Flanged Nut M6 |
| 29 |
732401030 |
O-Ring |
| 30 |
417223021 |
Slider Shoe |
| 31 |
417225070 |
Ring Gear_Starter This part replaces 417223042. |
| 32 |
250000751 |
Screw-Torx Button Head M8 X 16 S.Grip This part replaces 250000243. |
| 33 |
417009205 |
Guard |
| 34 |
250000412 |
Flanged Hex. Screw M6 X 12, Scotch Grip This part replaces 210361296. |
| 36 |
250200006 |
Spring Washer 14 mm |
| 37 |
417120000 |
Drive Pulley Bolt |
| 39 |
417127016 |
Roller |
| 40 |
417127259 |
Pivot Stud This part replaces 417127078. |
| 41 |
250200009 |
Lock Washer 8 mm |
| 42 |
413703100 |
Loctite 609, 10 ml |
| 43 |
414753500 |
Circlip |
| 45 |
293370049 |
Spacer (1.91/2.21mm) |
| 47 |
293370049 |
Spacer (1.91/2.21mm) |
| 48 |
417127039 |
Spring, Black |
| 49 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 50 |
250000283 |
Torx Screw M8 X 25, Scotch Grip |
| 52 |
Not |
Available As Spare Part - Straig Fitting |
| 53 |
Not |
Available As Spare Part - O Ring |
| 54 |
504152574 |
Ball Bearing |
| 55 |
413703100 |
Loctite 609, 10 ml |
| 56 |
34075 |
Grease |
| 57 |
417300586 |
Drive Belt This part replaces 417300197. |
| 58 |
417300357 |
Belt Guard |
| 59 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 60 |
417300380 |
Reinforcement |
| 61 |
390909200 |
Avex Rivet |
| 62 |
417300381 |
Grommet |
| 63 |
417300356 |
Side Protector |
| 64 |
293150103 |
Pop Rivet 3/16 |
| 65 |
114045200 |
Hair Pin |
| 66 |
417300364 |
Belt Guard Bracket |
| 67 |
293150104 |
Pop Rivet 3/16 |
| 68 |
417300363 |
Belt Guard Bracket |
