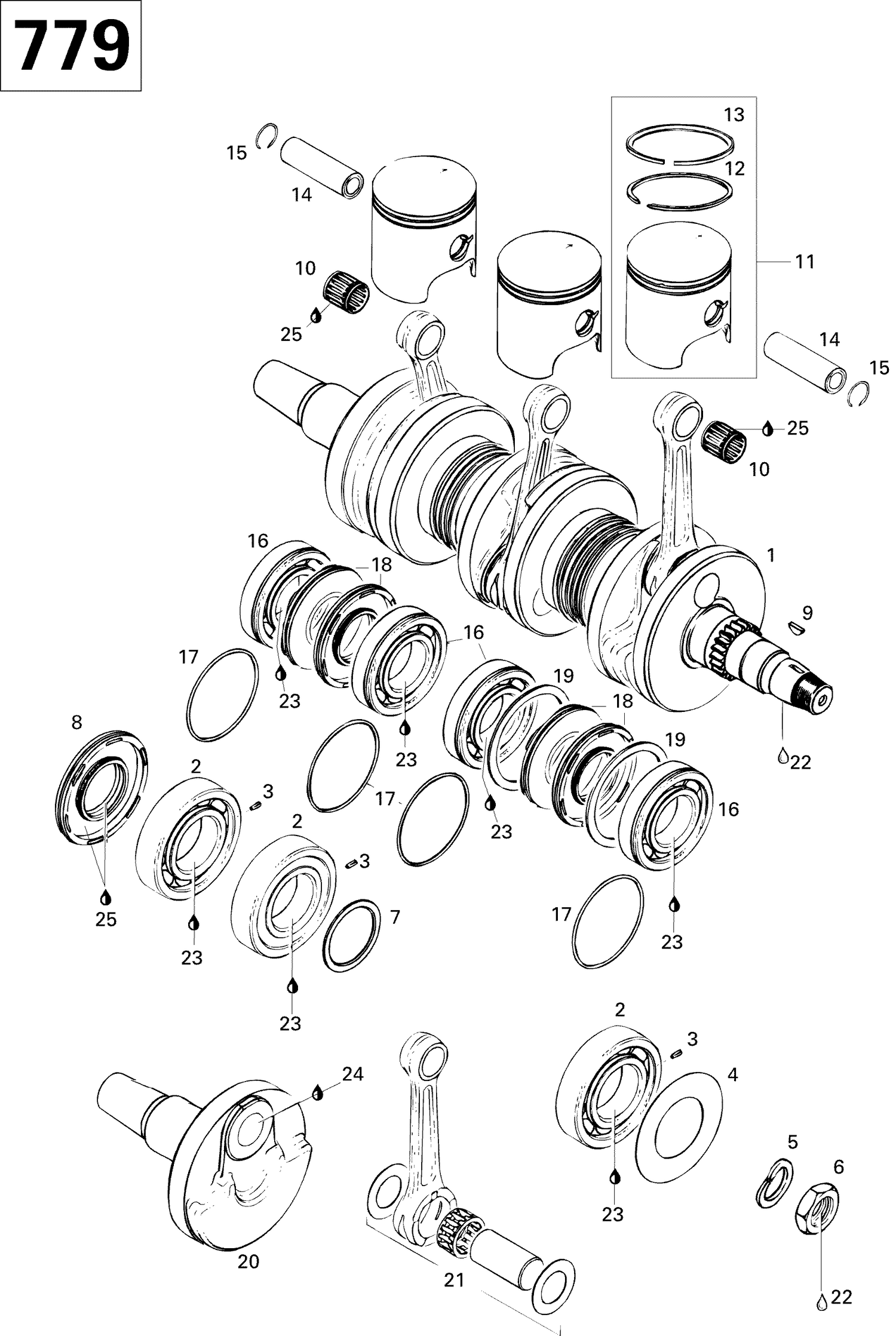

| Ref | Part Number | Description |
|---|
| 1 |
420887590 |
Crankshaft Ass‘y |
| 3 |
420929982 |
Dowel Pin |
| 4 |
420244085 |
Cover Washer |
| 5 |
420945759 |
Lock Washer, 22 mm |
| 6 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 7 |
420926130 |
Distance Ring |
| 8 |
420931280 |
Oil Seal |
| 9 |
420246015 |
Woodruff Key |
| 10 |
420832430 |
Needle Bearing |
| 12 |
420915985 |
Rectangular Ring 69.5 mm |
| 12 |
420915986 |
OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership |
| 13 |
420815045 |
Semi-trapez Ring 69.5 mm |
| 13 |
420815046 |
Oversize Semi-trapez Ring 69.75 mm |
| 14 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 15 |
420945735 |
Piston Circlip |
| 16 |
420832584 |
Bearing_Ball This part replaces 420832231. |
| 17 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 18 |
420831952 |
Oil Seal This part replaces 420831950. |
| 19 |
420927710 |
Retaining Disk |
| 20 |
420818570 |
Crankshaft P.T.O.-Side |
| 21 |
420887593 |
Rod Repair Kit P.T.O.-Side |
| 21 |
420887594 |
Rod Repair Kit Mag.-Side/Center |
| 22 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 23 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 24 |
Not |
Available As Spare Part - Loctite 14486, 10 cc |
