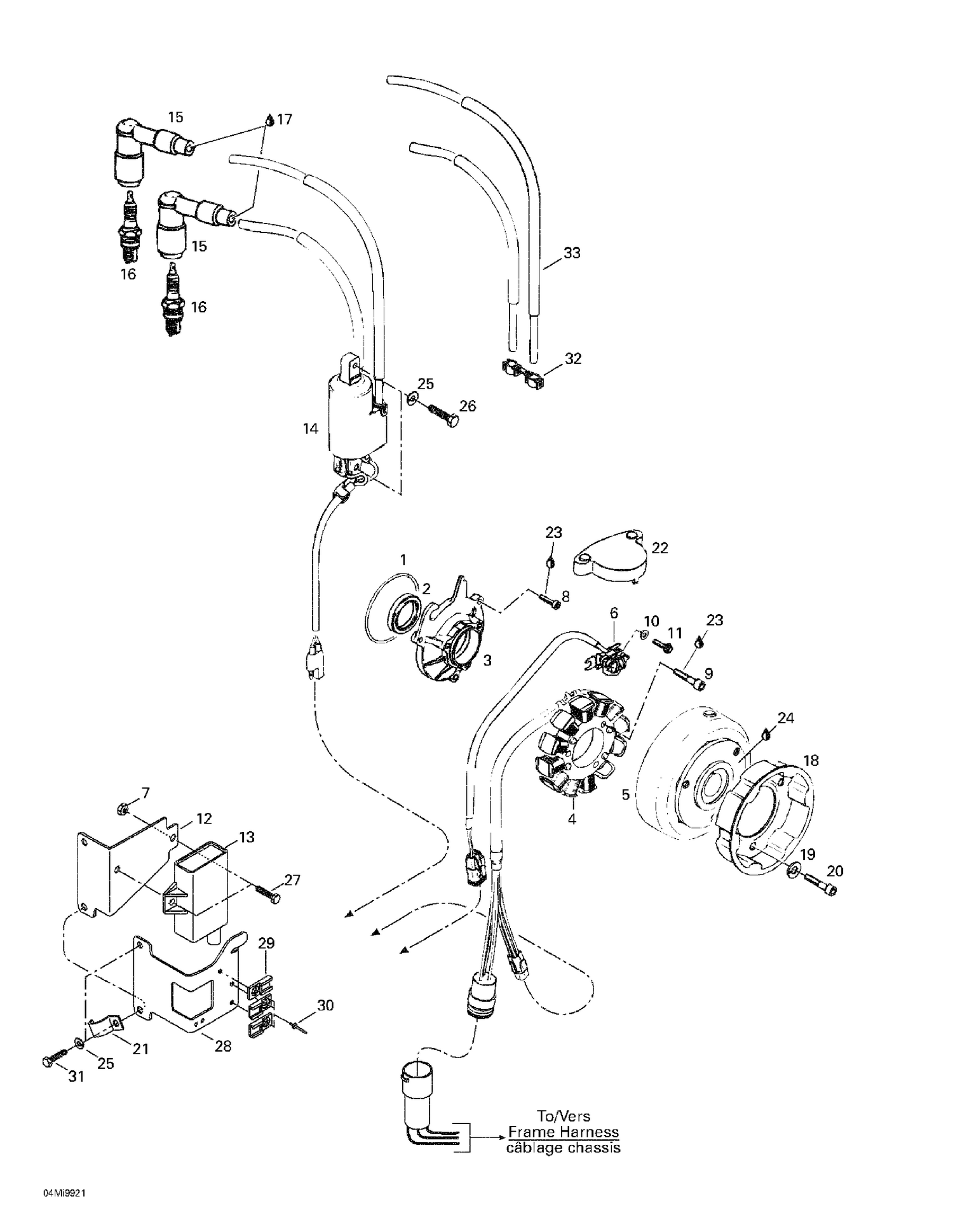

| Ref | Part Number | Description |
|---|
| 1 |
420850430 |
O-RING - Call your local BRP dealership |
| 2 |
420930695 |
SEAL-OIL - Call your local BRP dealership |
| 3 |
420810265 |
Armature Plate |
| 4 |
410922905 |
Stator Plate Ass'y |
| 5 |
410922906 |
Magneto Flywheel |
| 6 |
420965642 |
Pick Up Ass'y |
| 7 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 8 |
420941540 |
SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership |
| 9 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 10 |
420827800 |
WASHER - Call your local BRP dealership |
| 11 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 12 |
517299700 |
Ignition Module Support |
| 13 |
512058969 |
Calibration Module |
| 14 |
415085400 |
IGNITION COIL - Call your local BRP dealership |
| 15 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 16 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 17 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 18 |
420852590 |
Starting Pulley This part replaces 420852416. |
| 19 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 20 |
420841520 |
Socket Head Screw M8 X 12 |
| 21 |
415018200 |
CLIP - Call your local BRP dealership |
| 22 |
420810700 |
Pick-Up Cover |
| 23 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 24 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 25 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 26 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 27 |
207161644 |
Hex. Screw M6 X 16 |
| 28 |
517299600 |
Support Cable |
| 29 |
270000141 |
Clip |
| 30 |
Not |
Available As Spare Part - Pop Rivet |
| 31 |
207161244 |
HEX. SCREW M6 X 12 - Call your local BRP dealership This part replaces 222061265. |
| 32 |
410914600 |
Plastic Clip, Spark Plug Wire |
