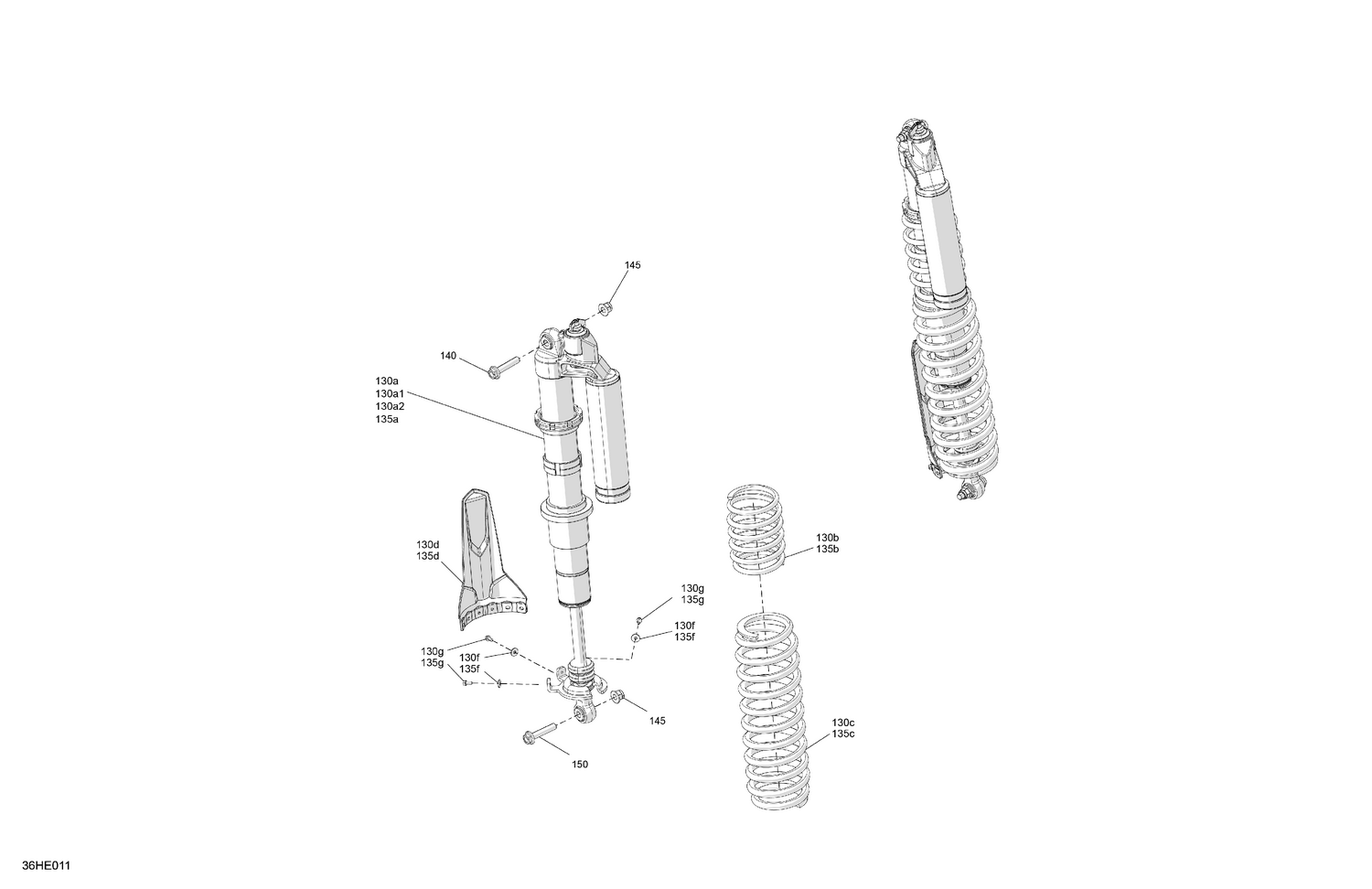

05- Suspension - Rear Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900791 | Collar |
| 130a2 | 715900954 | Spherical Bearing |
| 130b | 706205759 | Legion Red, Compression Spring |
| 130c | 706205760 | Legion Red, Compression Spring |
| 130d | 706202215 | Protector |
| 130f | 250200025 | Washer M5 |
| 130g | 210251150 | Hex Flange Screw M5 X 11 |
| 135a | 706004679 | RH Rear Adjustable Shock Absorber |
| 135b | 706205759 | Legion Red, Compression Spring |
| 135c | 706205760 | Legion Red, Compression Spring |
| 135d | 706202215 | Protector |
| 135f | 250200025 | Washer M5 |
| 135g | 210251150 | Hex Flange Screw M5 X 11 |
| 140 | 250000857 | Flange Screw M12 X 60 |
| 145 | 250001195 | Elastic Flange Nut M12 |
