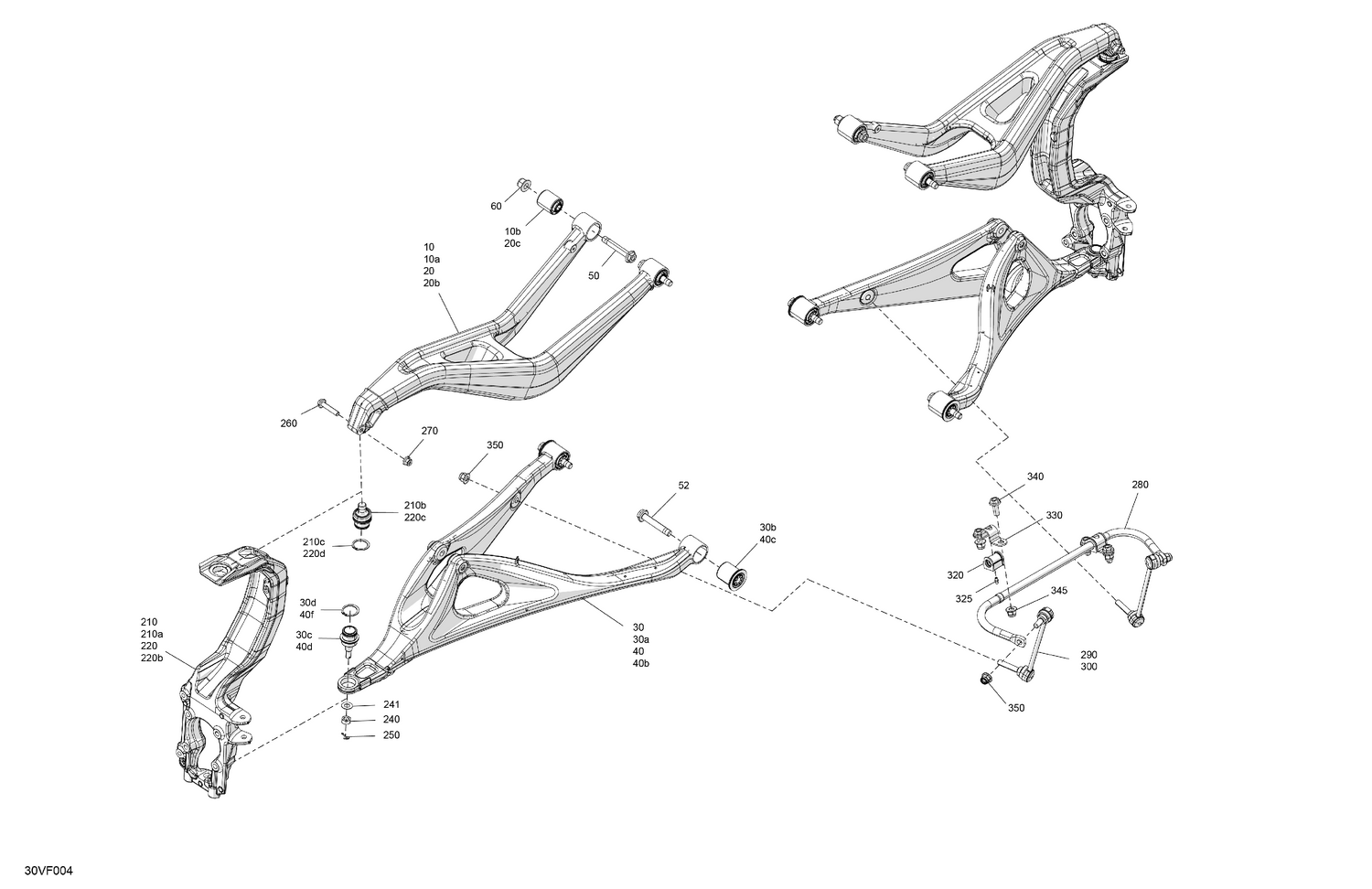

05- Suspension - Front Components
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10a | XXX | Not Available As Spare Parts |
| 10b | 706205620 | Suspension Arm Bushing |
| 20b | XXX | Not Available As Spare Parts |
| 20c | 706205620 | Suspension Arm Bushing |
| 30a | XXX | Not Available As Spare Parts |
| 30b | 706205895 | Suspension Arm Bushing |
| 30c | 706203084 | Ball Joint |
| 30d | 293370035 | Circlip |
| 40b | XXX | Not Available As Spare Parts |
| 40c | 706205895 | Suspension Arm Bushing |
| 40d | 706203084 | Ball Joint |
| 40f | 293370035 | Circlip |
| 50 | 250001176 | Hex. Flange Screw Din.6921 M14X2X85 |
| 52 | 250001176 | Hex. Flange Screw Din.6921 M14X2X85 |
| 60 | 250001166 | Hex. Flange Elastic Nut M14 |
| 210a | XXX | Not Available As Spare Parts |
| 210b | 706202045 | Ball Joint |
| 210c | 293370035 | Circlip |
| 220b | XXX | Not Available As Spare Parts |
| 220c | 706202045 | Ball Joint |
| 220d | 293370035 | Circlip |
| 240 | 250100239 | Hex Nut M12 |
| 241 | 706200281 | Hardened Washer |
| 250 | 211400017 | Cotter Pin |
| 260 | 207605056 | Hex. Flange Screw M10 X 50 |
| 270 | 233201466 | Flange Elastic Nut M10 |
| 280 | 706205633 | Stabilizer Bar Ass'y |
| 290 | 706205574 | LH Front Stabilizer Link |
| 300 | 706205575 | RH Front Stabilizer Link |
| 320 | 706205632 | Stabilizer Bar Bushing |
| 325 | 408200700 | Grease Fitting |
| 330 | 706205649 | Mounting Clamp |
| 340 | 250000951 | Hex. Flange Screw DIN.6921 |
| 345 | 250001195 | Elastic Flange Nut M12 |
