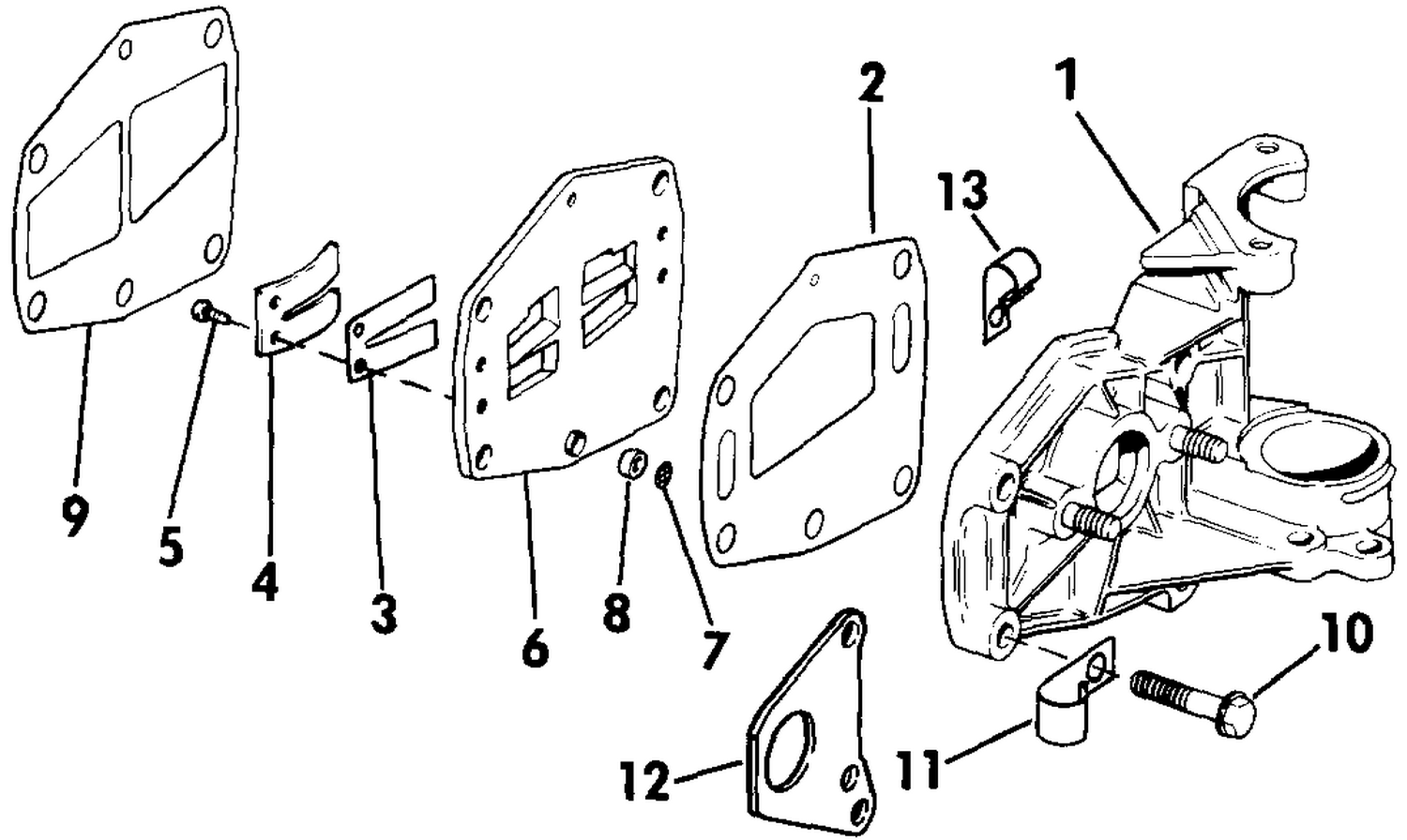

INTAKE MANIFOLD - 6
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0396551 | MANIFOLD, Intake |
| 1 | 0396553 | MANIFOLD, Intake |
| 2 | 0325277 | GASKET, Manifold |
| 3 | 0325267 | LEAF VALVE |
| 4 | 0321194 | PLATE, Leaf back up |
| 5 | 0303761 | SCREW |
| 6 | 0325268 | PLATE, Leaf |
| 9 | 0325278 | GASKET, Leaf valve |
| 10 | 0314951 | SCREEN, Mfld. to c'case |
| 11 | 0330151 | CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 12 | 0331759 | BRACKET, Primer to manifold |
| 0390231 | 0390231 | LEAF PLATE ASSY. |
