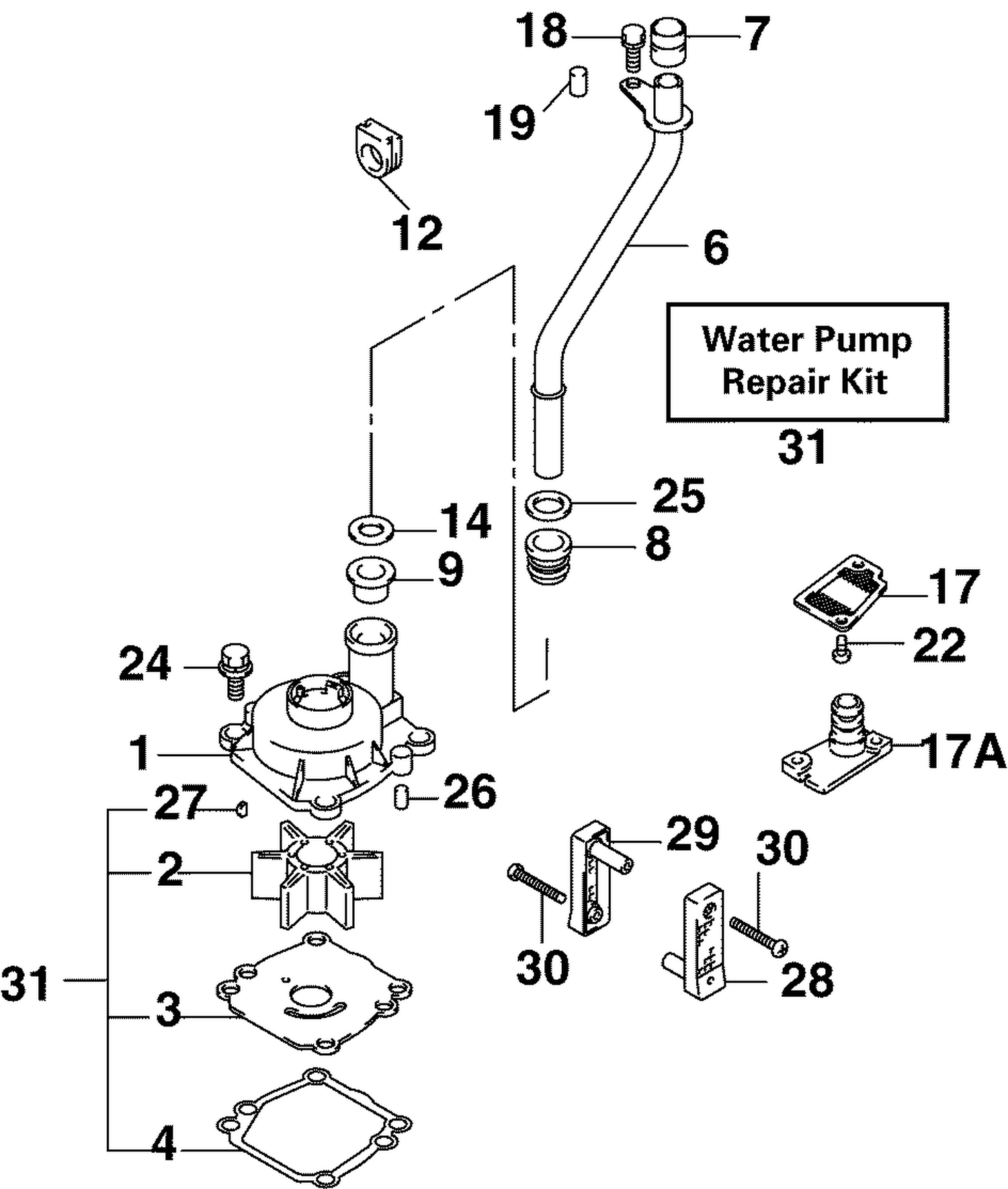

WATER PUMP
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030722 | CASE, Water pump |
| 2 | 5030723 | IMPELLER ASSY. |
| 3 | 5037170 | PANEL This part replaces 5030724. |
| 6 | 5030726 | TUBE, Water |
| 7 | 5030727 | BUSHING, Water tube upper |
| 8 | 5030728 | BUSHING |
| 9 | 5030729 | BUSHING |
| 12 | 5031102 | GROMMET, Gearcase |
| 14 | 5030735 | SPACER, Water tube |
| 17 | 5030739 | FILTER, SUB WATER |
| 18 | 5030038 | BOLT |
| 19 | 5030509 | PIN |
| 22 | 5030406 | SCREW |
| 24 | 5030398 | BOLT |
| 25 | 5030461 | WASHER |
| 26 | 5030508 | PIN |
| 27 | 5030591 | KEY |
| 28 | 5032594 | FILTER, Water - Port |
| 29 | 5032595 | FILTER, Water - Stbd |
