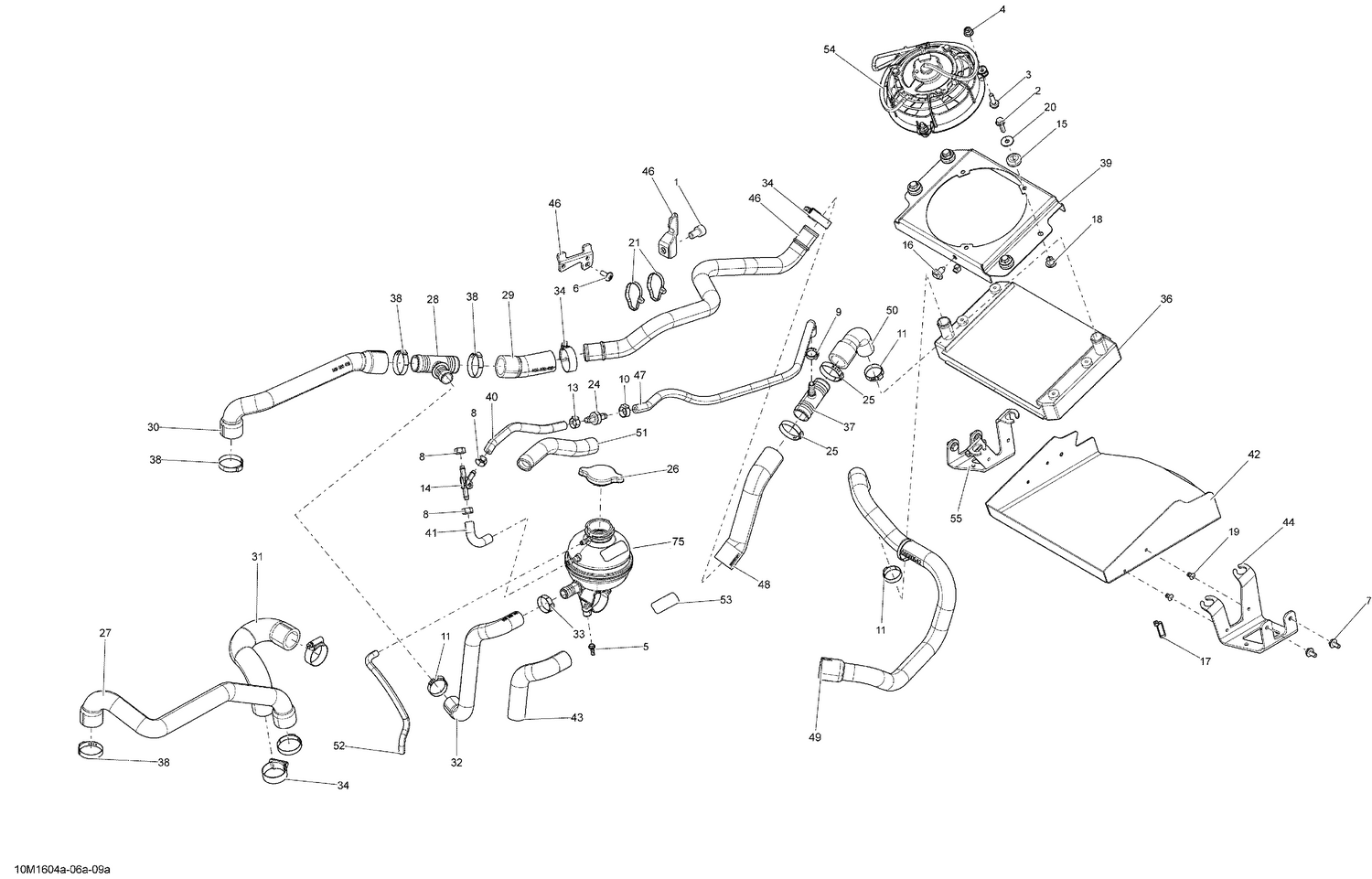

01- Cooling System - 1200 4-TEC
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205501644 | Socket Screw M10 X 16 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 6 | 250000365 | Torx Screw M6 X 16 |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 |
| 8 | 293650046 | Oetiker Clamp |
| 9 | 293650047 | Crimp Clamp, 15.3-706R |
| 10 | 293650053 | Crimp Clamp |
| 11 | 293650099 | Crimp Clamp |
| 13 | 293650125 | Oetiker Clamp |
| 14 | 293710140 | Y-Fitting |
| 15 | 709000582 | Grommet This part replaces 293720053. |
| 16 | 293730040 | Mount Dart |
| 17 | 293750002 | Tie Wrap 142 mm |
| 18 | 293900100 | Bushing |
| 19 | 390909100 | Avex Rivet |
| 20 | 250200082 | Flat Washer |
| 21 | 414115200 | Tie-Rap 180 mm |
| 24 | 509000153 | Check Valve |
| 25 | 509000162 | Gear Clamp |
| 26 | 509000180 | Radiator Pressure Cap |
| 27 | 509000370 | RADIATOR HOSE - Call your local BRP dealership |
| 28 | 509000372 | T-Fitting |
| 29 | 509000438 | Radiator Hose |
| 30 | 509000439 | Radiator Hose |
| 31 | 509000440 | Outlet Hose |
| 32 | 509000441 | Hose |
| 33 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 34 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 36 | 509000488 | Radiator |
| 37 | 509000510 | T-Fitting |
| 38 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 39 | 509000714 | Fan Support |
| 40 | 509001069 | Hose-formed This part replaces 509000765. |
| 41 | 509001070 | Hose This part replaces 509000776. |
| 42 | 509000835 | Air Inlet Deflector |
| 43 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 44 | 509000933 | Support |
| 46 | 509000938 | WATER PIPE - Call your local BRP dealership |
| 47 | 509000940 | BREATHER HOSE - Call your local BRP dealership |
| 48 | 509000941 | RADIATOR HOSE - Call your local BRP dealership |
| 49 | 509000942 | RADIATOR HOSE - Call your local BRP dealership |
| 50 | 509000944 | Radiator Hose |
| 51 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 52 | 219704360 | Hose 6 Mm 15000Mm Long |
| 53 | 516005904 | Warning Decal |
| 54 | 709200573 | Fan |
| 55 | 509000934 | Support |
