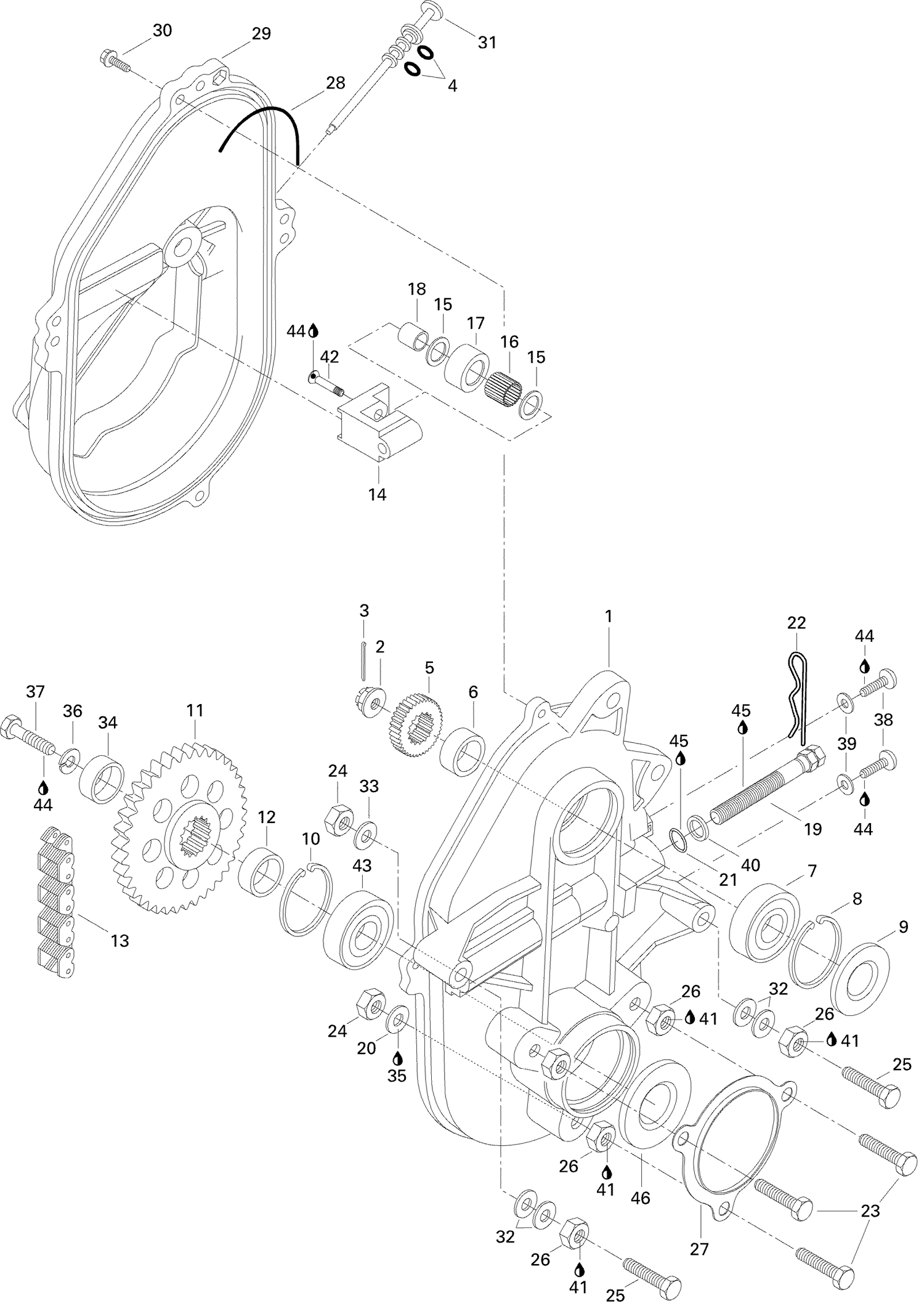

| Ref | Part Number | Description |
|---|
| 1 |
504095500 |
Chaincase |
| 2 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership This part replaces 732610012. |
| 3 |
371006300 |
PIN COTTER - Call your local BRP dealership |
| 4 |
414969400 |
O-RING - Call your local BRP dealership |
| 5 |
504085400 |
Sprocket, 23 Teeth (Large) |
| 6 |
504093400 |
Shim |
| 7 |
293350115 |
Ball Bearing This part replaces 405404400. |
| 8 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 9 |
414531200 |
Seal |
| 10 |
414784900 |
Circlip (Int-rior) |
| 11 |
504085500 |
Sprocket Large (44 Tooth) |
| 12 |
501021800 |
Inner Shim |
| 13 |
412106700 |
DRIVE CHAIN (72 LINKS-LARGE) - Call your local BRP dealership |
| 14 |
504081000 |
MACHINED TENSIONER - Call your local BRP dealership |
| 15 |
504080300 |
WASHER - Call your local BRP dealership |
| 16 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 17 |
414531300 |
ROLLER - Call your local BRP dealership |
| 18 |
504080200 |
SPACER - Call your local BRP dealership |
| 19 |
732601163 |
Tensioner Adjustment Screw |
| 20 |
732900020 |
Copper Washer |
| 21 |
414484400 |
O-Ring |
| 22 |
414575600 |
Hair Pin |
| 23 |
732601112 |
Hex. Screw M10 x 40 |
| 24 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 25 |
732601111 |
Hex. Screw M10 x 70 |
| 26 |
504083800 |
Spacer |
| 27 |
501022100 |
Protector |
| 28 |
414362300 |
O-Ring |
| 29 |
080037100 |
CASTING COVER - Call your local BRP dealership |
| 30 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 732600004. |
| 31 |
572075500 |
Filler Cap |
| 32 |
504073700 |
WASHER - Call your local BRP dealership |
| 33 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 34 |
501022400 |
Cap |
| 35 |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
| 36 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 37 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 38 |
732601132 |
Socket Head Screw M8 x 10 |
| 39 |
504082900 |
Washer |
| 40 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 41 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 42 |
732601144 |
SCREW - Call your local BRP dealership |
| 43 |
405403900 |
Ball Bearing 6206 |
| 44 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 45 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
