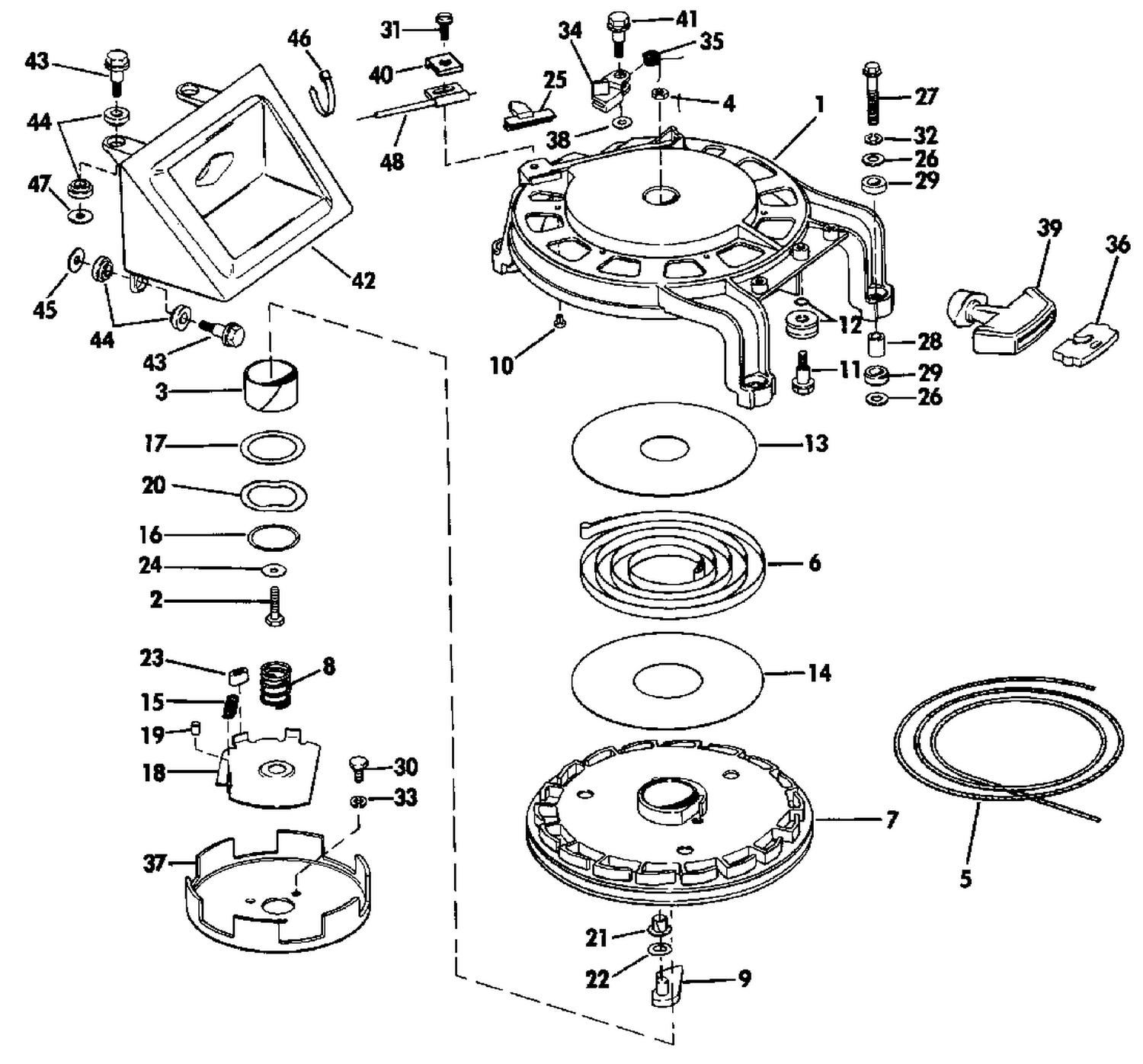

| Ref | Part Number | Description |
|---|
| 5 |
ROPE |
Ref: 6 0325431 *SPRING, Starter 0325431 |
| 25 |
0330338 |
SLIDE |
| 27 |
0908511 |
SCREW |
| 28 |
0326129 |
SLEEVE |
| 29 |
0326130 |
GROMMET |
| 30 |
0306861 |
SCREW |
| 31 |
0328731 |
VIS, câble de verrouillage |
| 34 |
0326127 |
LOCKOUT LEVER, Starter assy |
| 35 |
0326128 |
SPRING |
| 37 |
0329211 |
RATCHET |
| 38 |
0326609 |
RONDELLE, levier de verrouillage |
| 39 |
0326249 |
HANDLE, Starter |
| 40 |
0328456 |
CLAMP |
| 42 |
0436662 |
BRACKET, Starter handle This part replaces 0326135. |
| 44 |
0326136 |
GROMMET |
| 46 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 0397903 |
0438104 |
RECOIL STARTER Assy This part replaces 0397903. |
